Epson FX-890II User Manual

Accessing EPSON Status Monitor 3
Do one of the following to access EPSON Status Monitor 3;
❏ Double-click the printer-shaped shortcut icon on the taskbar. To add a shortcut icon to the
taskbar, go to the Utility menu and follow the instructions.
❏ Open the Utility menu, then click the EPSON Status Monitor 3 icon. To find out how to open the
Utility menu, See “Using the Printer Driver” on page 59.

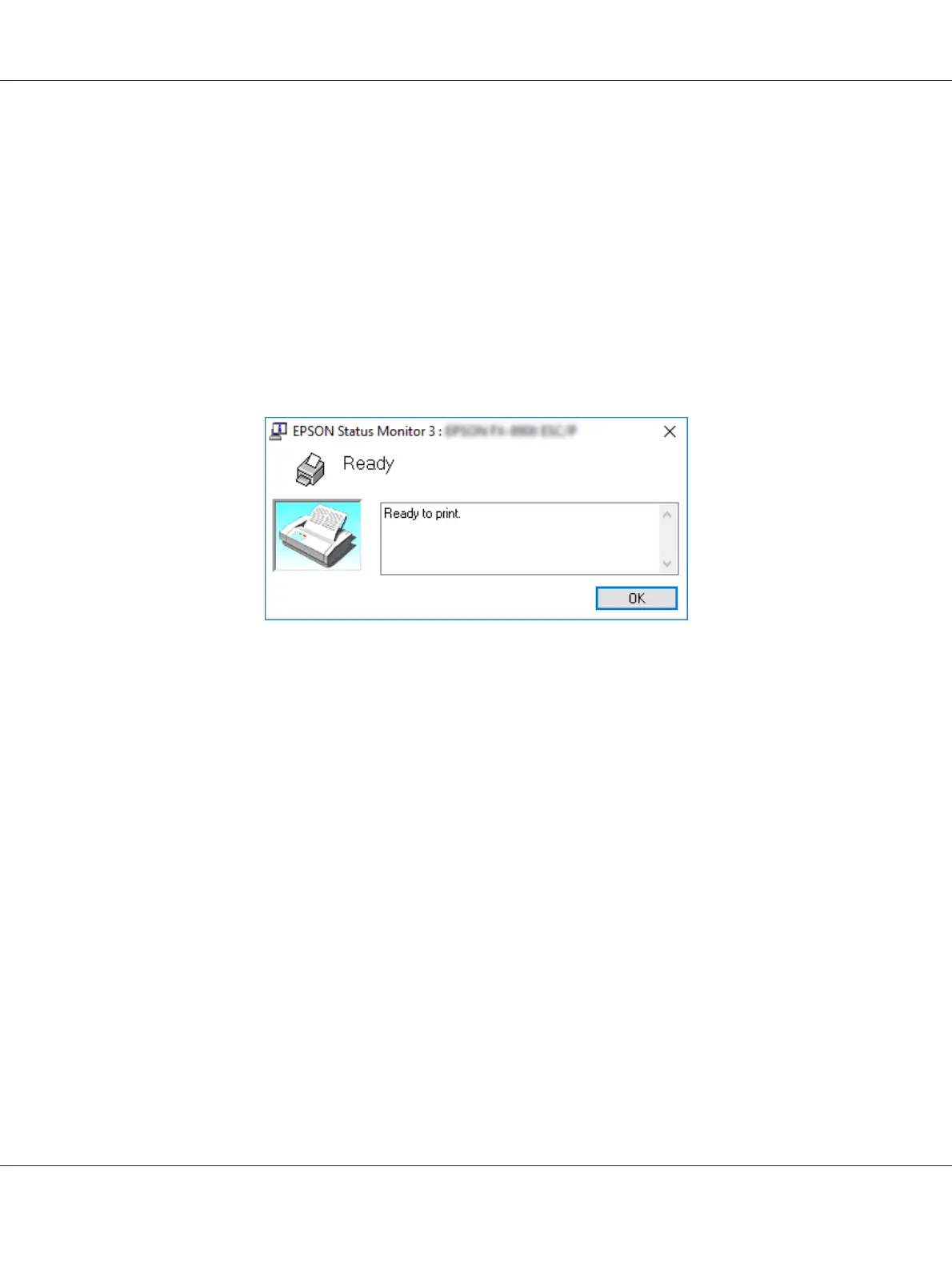

When you access EPSON Status Monitor 3 as described above, the following printer status window
appears.
You can view printer status information in this window.
Note:
It might not be possible to retrieve the printer status during printing. In this situation, click the EPSON
Status Monitor 3 button in the Utility tab, and use the printer with the status window left open.
Installing EPSON Status Monitor 3
Follow the steps below to install EPSON Status Monitor 3.
1. Make sure that the printer is off and that Windows is running on your computer.
2. Insert the Software Disc in the CD-ROM drive.
Note:
Before proceeding, make sure you have installed the printer driver on your computer.
3. Follow the on-screen instructions to install the software.
FX-890II/FX-890IIN/FX-2190II/FX-2190IIN User’s Guide
Printer Software 72

Epson FX-890II Specifications

General

Color	No
Character sets	ISO 8859-15, Italic, PC437, PC850, PC858, Roman 8
Character pitch	10 cpi
Built-in barcodes	CODABAR (NW-7), Code 128 (A/B/C), Code 39, Industrial 2/5, Matrix 2/5, POSTNET, UPC-A, UPC-E
Maximum print speed (LQ)	115 cps
Maximum print speed (draft)	463 cps
Maximum printing width (columns)	80
Product color	Black
Page description languages	ESC P, PPDS
Sound pressure level (printing)	55 dB
AC input voltage	120 V
AC input frequency	50 - 60 Hz
Mean time between failures (MTBF)	20000 h
Storage temperature (T-T)	-30 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	30 - 60 %
Operating relative humidity (H-H)	10 - 80 %
Sustainability certificates	ENERGY STAR
Cut sheet thickness range	0.12 - 0.46 mm
Continuous paper thickness range	0.46 - 0.46 mm
Standard interfaces	Parallel, USB 2.0

Weight and Dimensions

Depth	376 mm
Width	437 mm
Height	177 mm
