Epson FX-890II User Manual

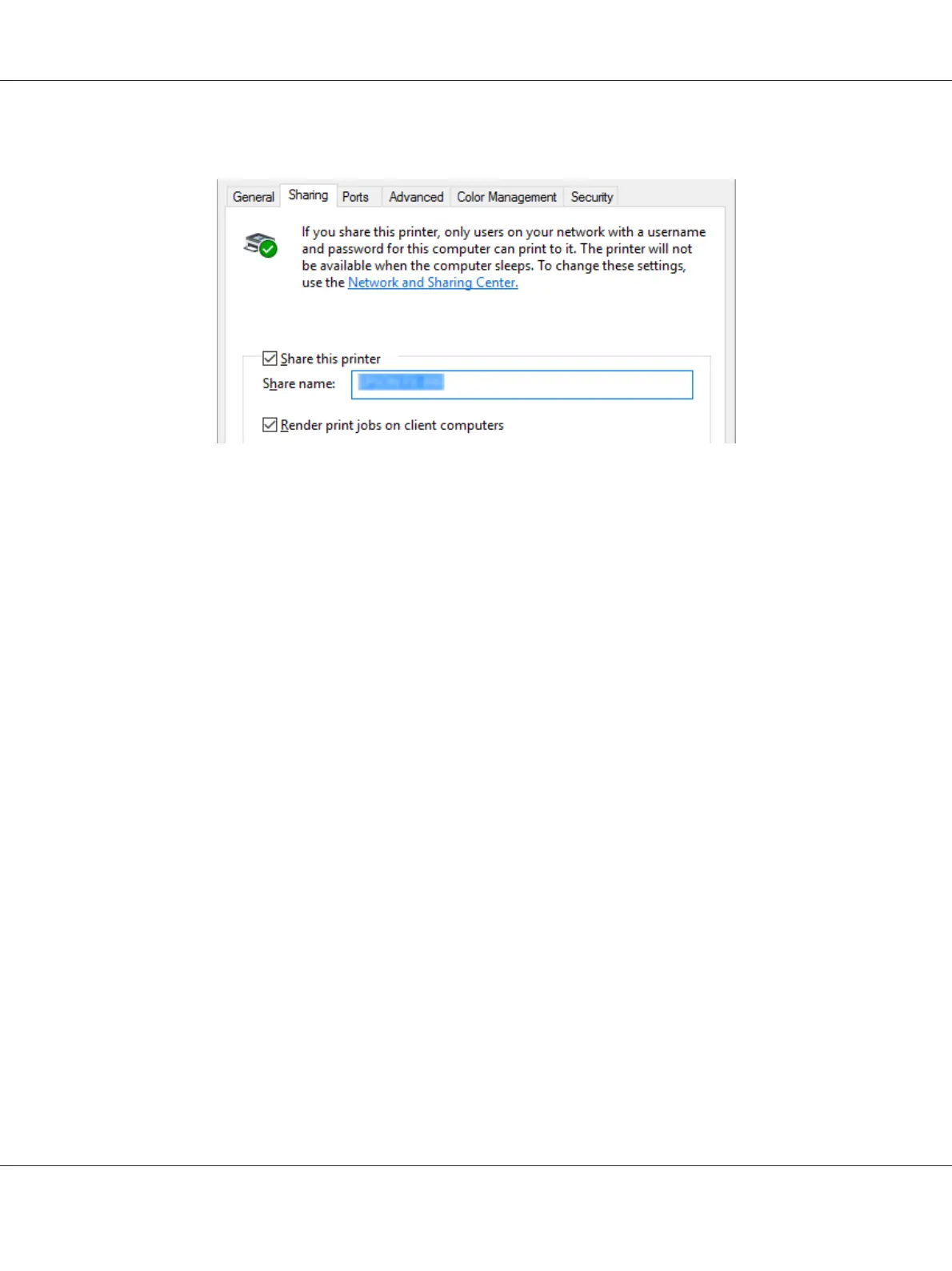

Select Share this printer, then type the name in the Share name box and click OK.
Note:
❏ Do not use spaces or hyphens for the share name, or an error may occur.
❏ In Windows 8, 8.1, 7, or Vista, you cannot select Share this printer until you click the Change
sharing options button.
You need to set the client computers so that they can use the printer on a network. See the following
pages for details:
❏ See “Setting for the clients” on page 80.
Sharing the printer when the firewall is on
Note:
To share files and printers when Windows Firewall is on, perform the following procedure.
Windows 10
1. Right-click the Start menu, click Control Panel, click System and Security, and then click
Windows Firewall.
2. Click Turn Windows Firewall on or off in the window on the left. Make sure that Block all
incoming connections, including those in the list of allowed apps is not selected, and then
click OK.
3. Click Allow an app or feature through Windows Firewall in the window on the left.
FX-890II/FX-890IIN/FX-2190II/FX-2190IIN User’s Guide
Printer Software 78

Epson FX-890II Specifications

General

Color	No
Character sets	ISO 8859-15, Italic, PC437, PC850, PC858, Roman 8
Character pitch	10 cpi
Built-in barcodes	CODABAR (NW-7), Code 128 (A/B/C), Code 39, Industrial 2/5, Matrix 2/5, POSTNET, UPC-A, UPC-E
Maximum print speed (LQ)	115 cps
Maximum print speed (draft)	463 cps
Maximum printing width (columns)	80
Product color	Black
Page description languages	ESC P, PPDS
Sound pressure level (printing)	55 dB
AC input voltage	120 V
AC input frequency	50 - 60 Hz
Mean time between failures (MTBF)	20000 h
Storage temperature (T-T)	-30 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	30 - 60 %
Operating relative humidity (H-H)	10 - 80 %
Sustainability certificates	ENERGY STAR
Cut sheet thickness range	0.12 - 0.46 mm
Continuous paper thickness range	0.46 - 0.46 mm
Standard interfaces	Parallel, USB 2.0

Weight and Dimensions

Depth	376 mm
Width	437 mm
Height	177 mm
