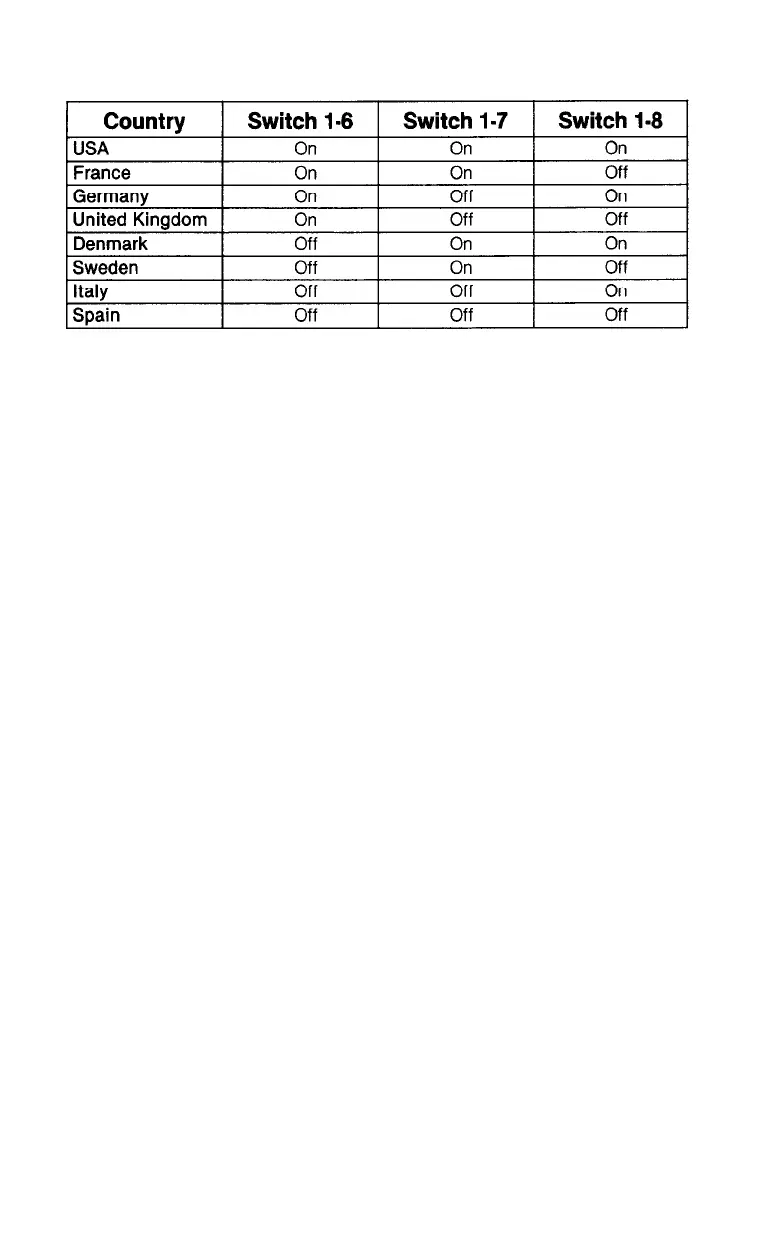

Table E-2. International DIP switch settings
See Chapter 6 for a discussion of the international sets.
Switch 1-5: selects a default print weight. When it is ON, Emphasized
is the default. When it is OFF, Single-Strike is the default.
Switch 7-4: controls the RAM memory. When it is ON, makes a 2K
buffer available. When it is OFF, that memory can be used for user-
defined characters.
Switch 1-3: controls the paper-out sensor. When it is ON, the sensor is
deactivated, and printing will continue even when paper is out
(printer stays on-line). When it is OFF, printing stops when the printer
runs out of paper. The printer goes off-line (and the beeper sounds if
switch
2-2
is on).
Switch 1-2: controls the printing of zeroes. When it is ON, the FX
prints a slashed zero (0). When it is OFF, a normal zero is printed.
Switch 1-1: selects a default pitch. When it is ON Compressed Mode
becomes the default. When it is OFF, Pica is the default. If both switch
1-5
and switch
1-1
are ON, Emphasized Mode takes priority over
Compressed.
Switch 2-4: controls the line feed. When it is ON, the printer produces
an automatic line feed with every carriage return. When it is OFF no
line feed is added (line feed must be provided by computer).
Switch
2-3:
controls the skip-over perforation feature. When it is ON,
a form feed is produced one inch from the bottom of every form. Note
that the top of form is set when the printer is turned ON. This switch is
used primarily to skip automatically over the paper perforation of
fanfold paper. When it is OFF, no skip is made. See chapter 8 for
details.
298
