Epson L6570 Series

To Next Page

To Previous Page

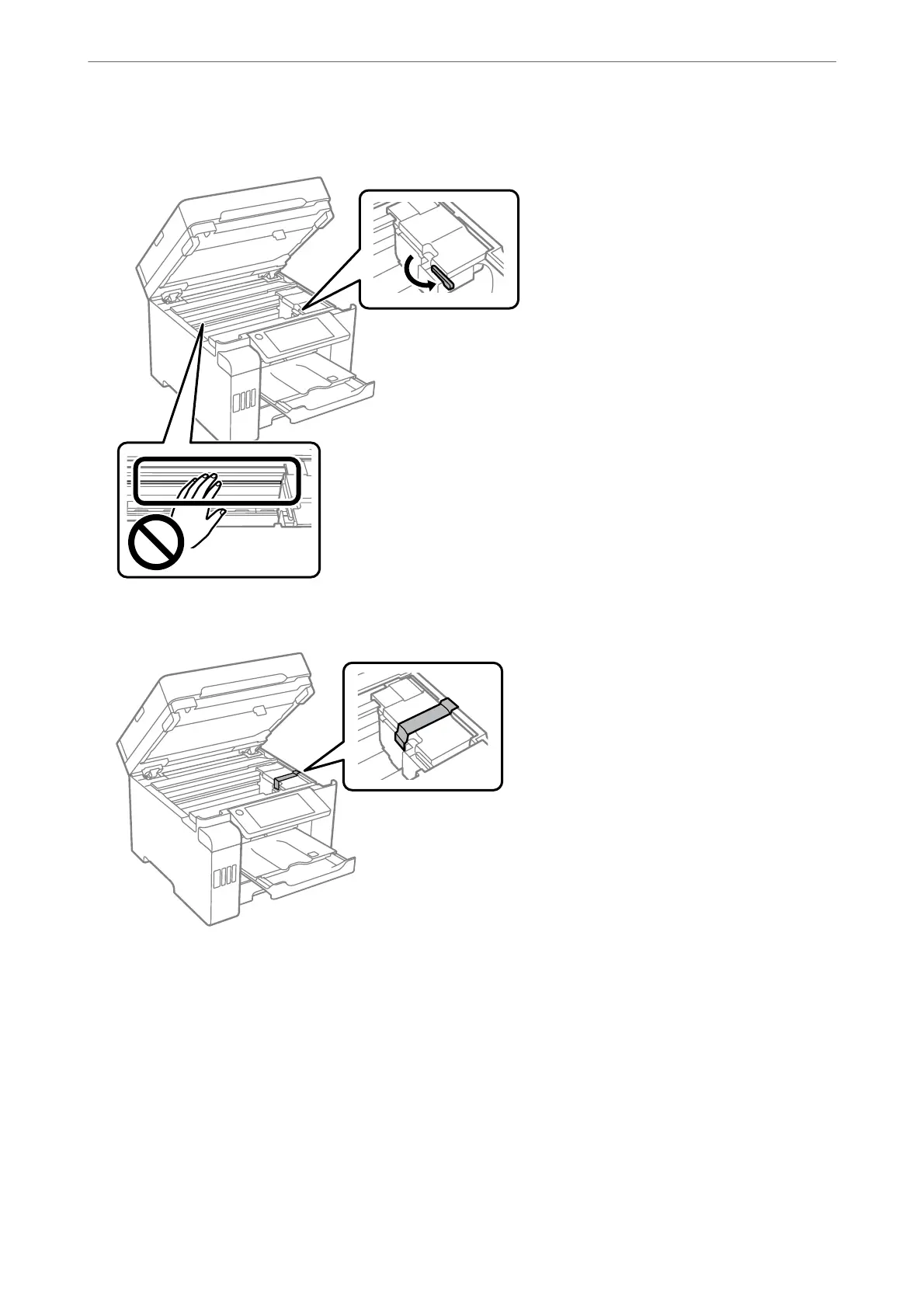

If the print head is not in the position shown below, move it by hand.

Secure the print head to the case with tape.

Maintaining the Printer

Transporting and Storing the Printer

164
