13.

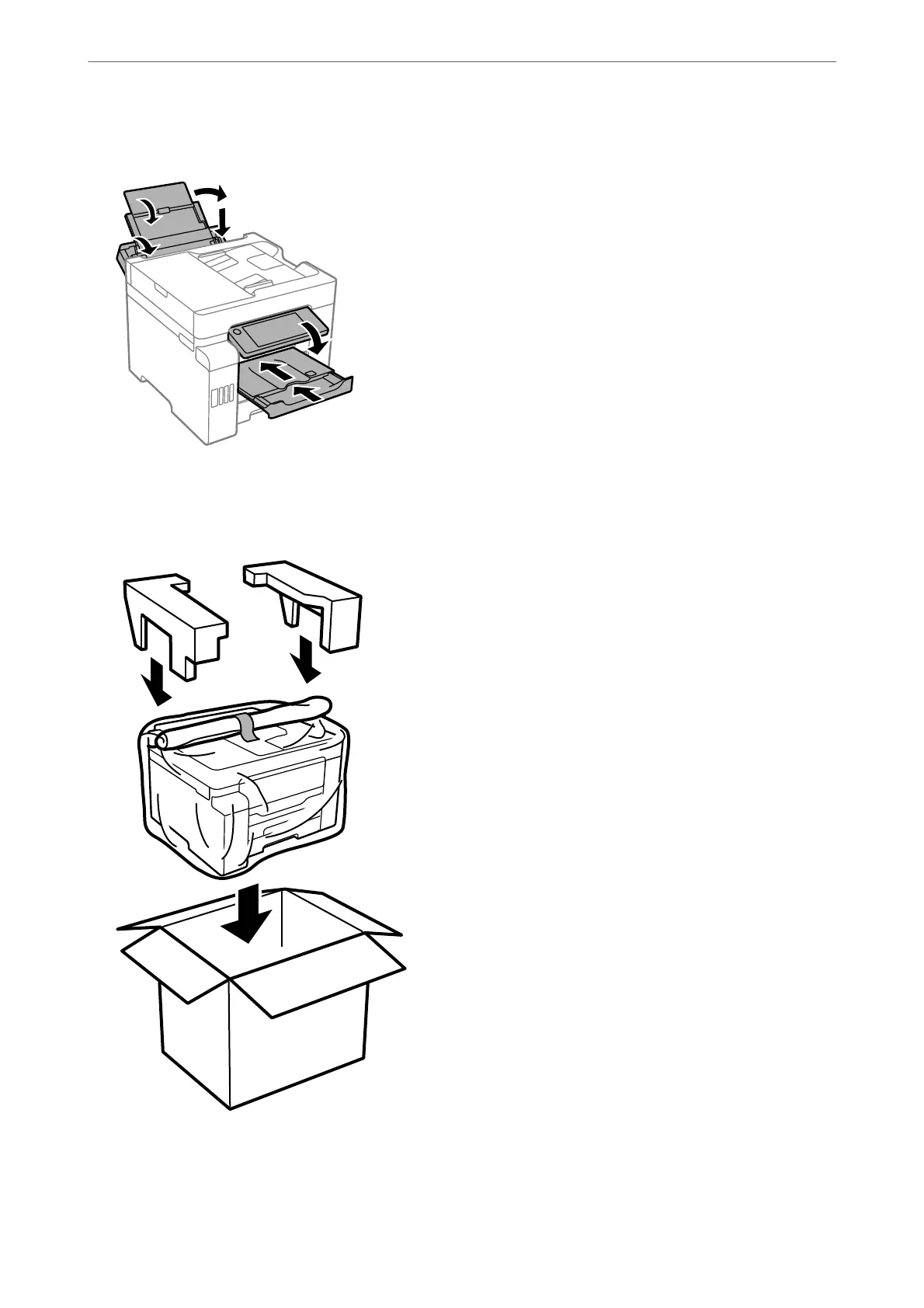

Prepare to pack the printer as shown below.

14.

Place the printer in the plastic bag and fold it closed.

15.

Pack the printer in its box using the protective materials.
