Epson L6570 Series User Manual

B
Edge guide Feeds the paper straight into the printer. Slide to the edges of the
paper.
C
Paper tray Loads all paper types supported by the printer.
D
Output tray Holds the ejected paper. When you start printing, this tray is ejected
to t the paper size automatically. To store the tray, push it manually
or select
on the control panel.
E
Edge guide Feeds the paper straight into the printer. Slide to the edges of the
paper.
F
Paper cassette Loads paper.
A
Document cover Blocks external light while scanning.
B
Scanner glass Place the originals. You can place the originals that are not fed from
the ADF such as envelopes or thick books.
C
Control panel Allows you to make settings and perform operations on the printer.
Also displays the printer’s status.
D
External interface USB port Connects memory devices.
E
Ink tank cover Open to rell the ink tank.
F
Ink tank Supplies ink to the print head.
G
Ink tank cap Open to rell the ink tank.

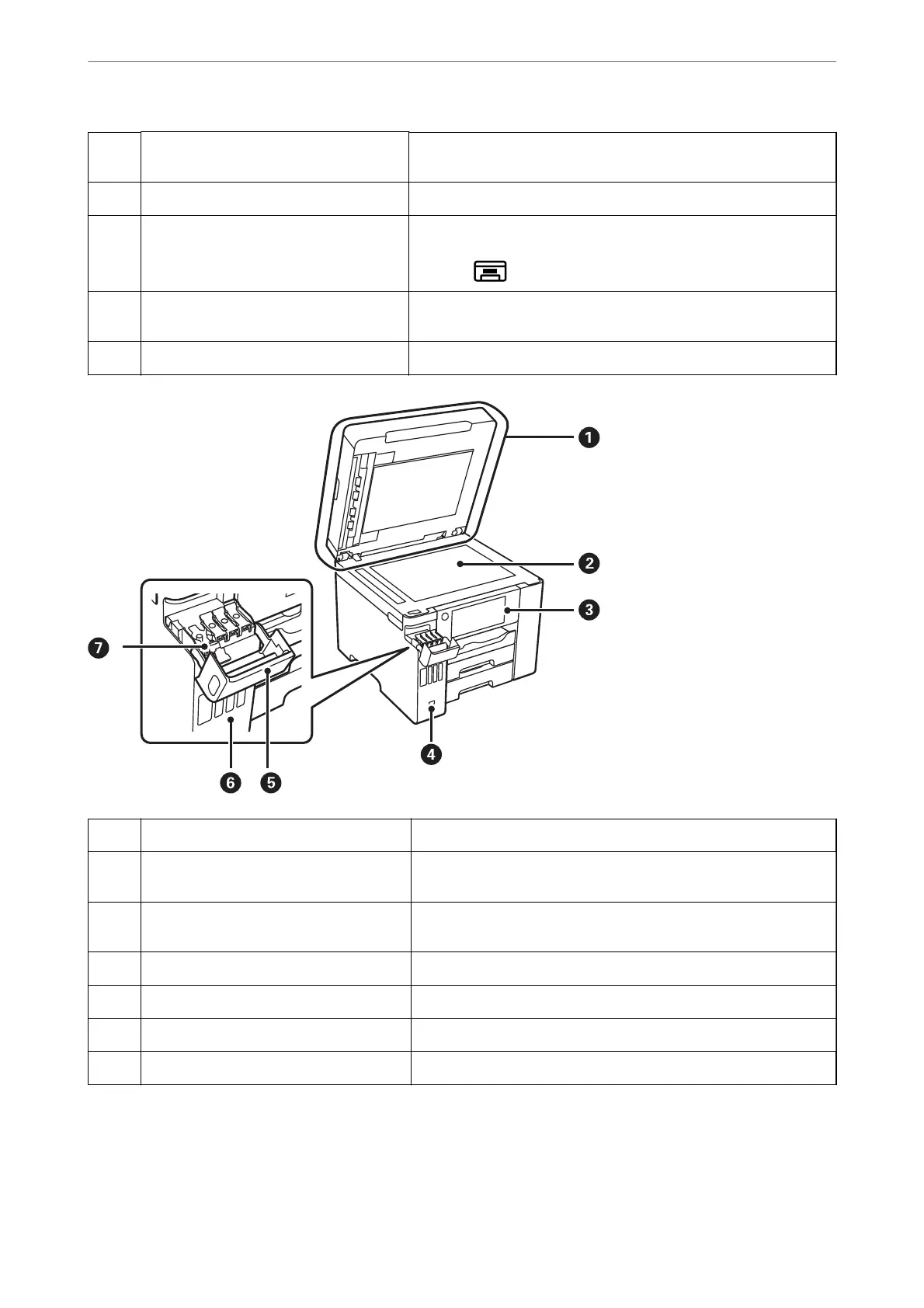

Part Names and Functions > Front
19
