4.2.1 Removal of Document Cover
1. Disconnect the TPU Unit Connector on the rear side of the Main Unit.

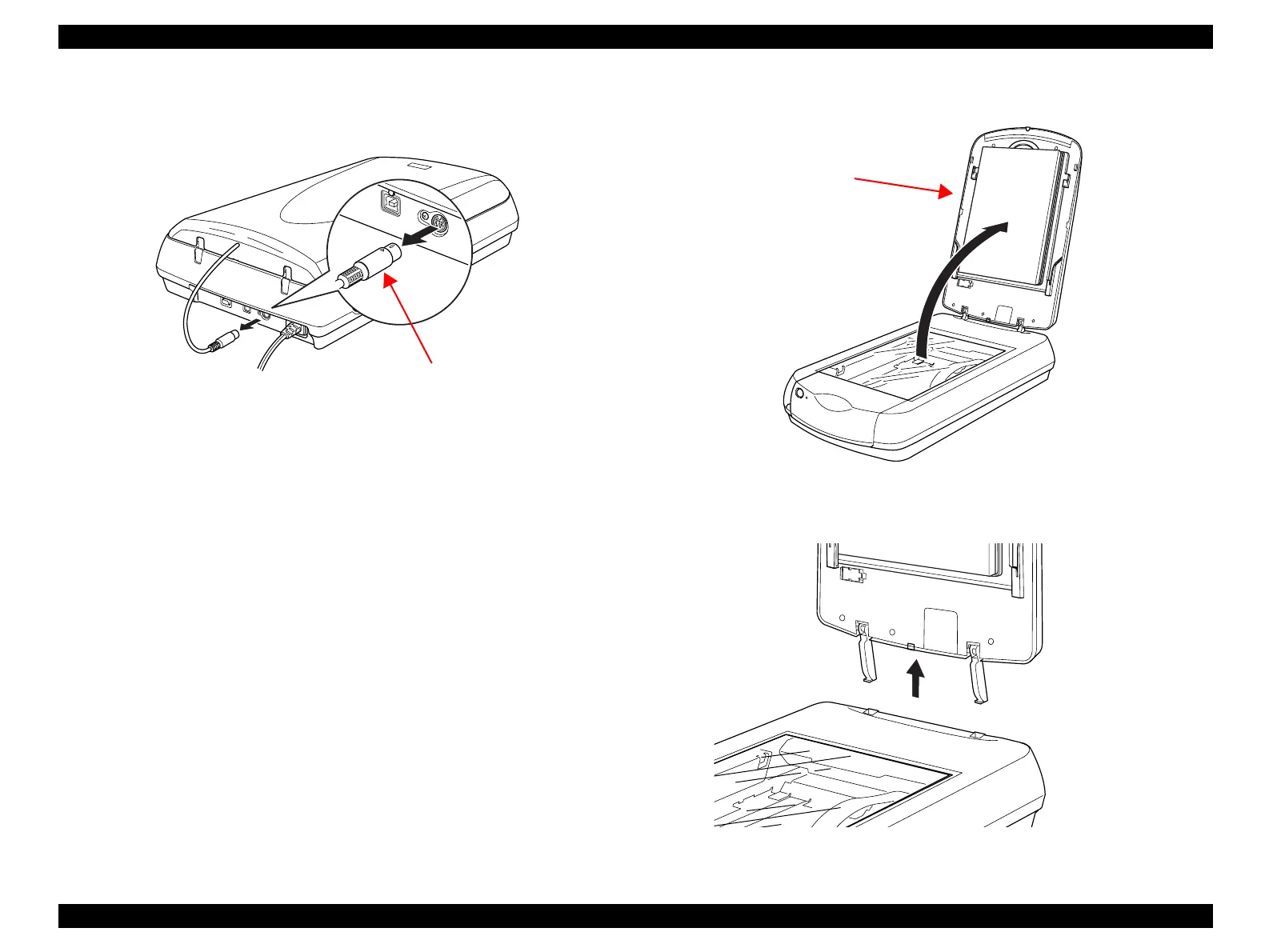

Figure 4-3. Disconnection of TPU Unit Connector
2. Open the Document Cover.
Figure 4-4. Removal of Document Cover (1)
3. Hold both ends of the Document Cover and then lift and remove it.
Figure 4-5. Removal of Document Cover (2)
TPU Unit Connector
Document Cover
