Epson Perfection 4870 Photo - Lubrication

Perfection 4870 Photo Revision A
MAINTENANCE Overview 67
6.1.2 Lubrication
Lubrication is required when any part of the Carriage Unit of the scanner has been
replaced or the Carriage moves with noticeably large operation noise. The specified
grease is indicated in Table 6-1, and the lubrication points are shown in Figure 6-1.
Table 6-1. Specified Grease

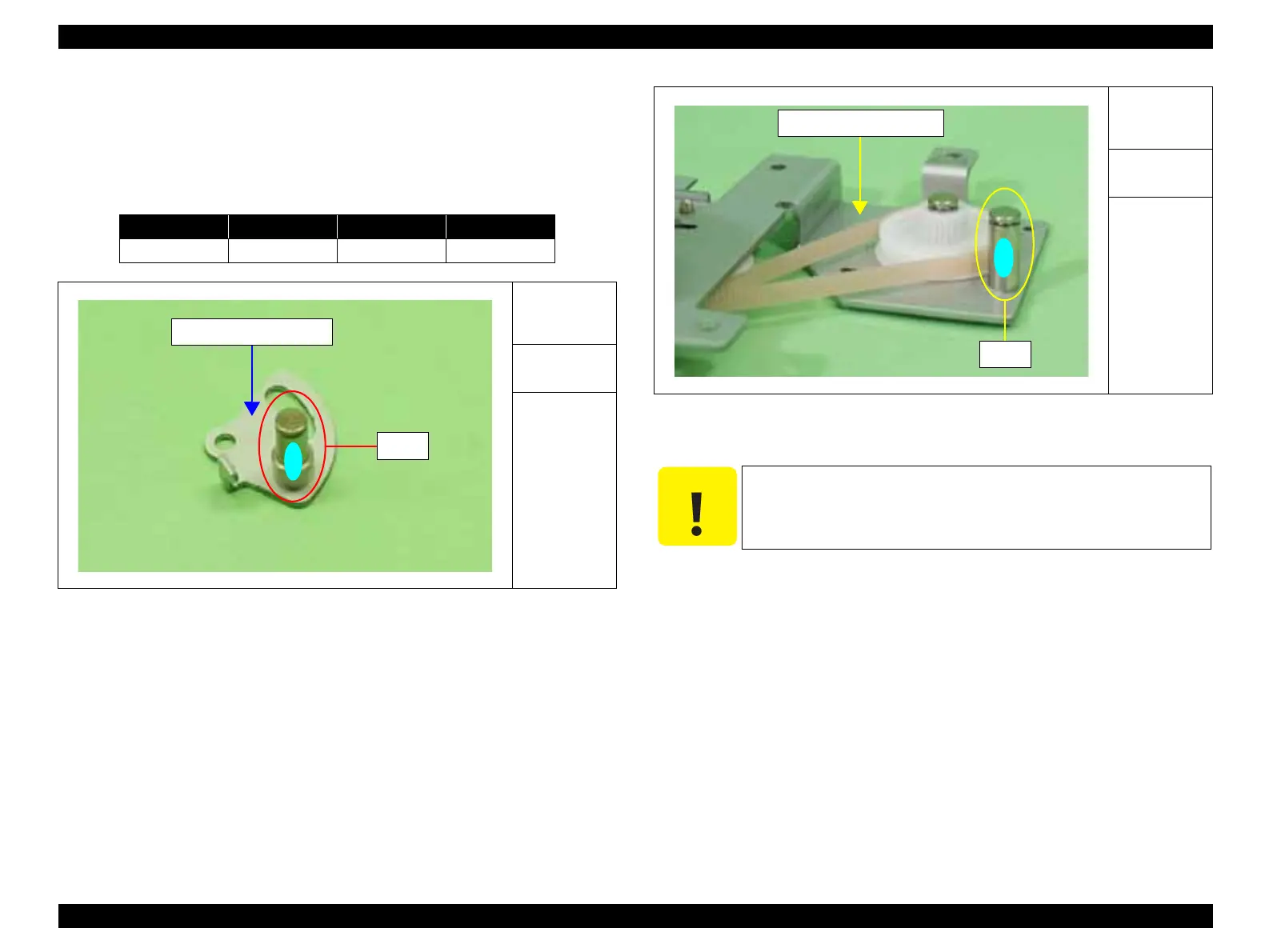

Figure 6-1. Lubrication Points
Type Name Part Number Supplier
Grease G-26 1080614 EPSON
<Lubrication
point>
Shaft
<Oil type>
G-26
<Amount of
application>
A little
Shaft
Driven Pulley Holder
<Lubrication
point>
Shaft
<Oil type>
G-26
<Amount of
application>
A little
C A U T I O N
Note that a failure to strictly observe the specified amount of
application will contaminate the mechanisms or lead to a malfunction.
TPU CR Motor Unit
Shaft
