Epson PowerLite S5 Series User Manual

Fine-tuning the Projector 55
Adjusting Colors and Clarity

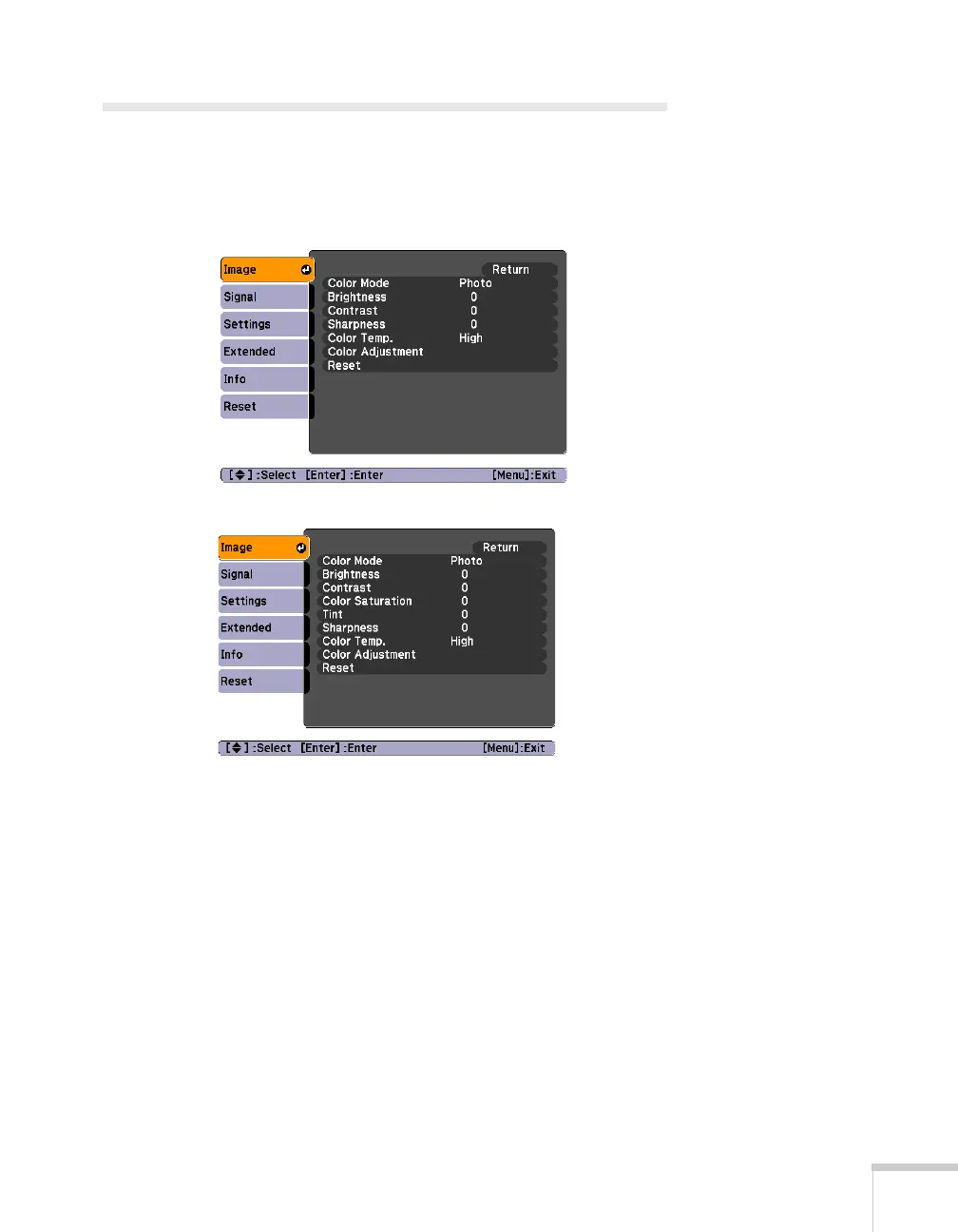

The Image menu lets you make adjustments to the colors of the
projected image and fine-tune brightness, contrast, and sharpness.
The options available depend on which image source is selected:
Follow these steps to adjust the appearance of your image:
1. Press the
Menu button. You see the main menu.
2. Press
Enter to select the Image menu.
Computer (analog-RGB) and RGB video
Component, composite, and S-Video

Epson PowerLite S5 Series Specifications

General

Resolution	800 x 600 (SVGA)
Contrast Ratio	400:1
Weight	2.7 kg (6.0 lbs)
Projection System	3LCD, 3-chip technology
Lamp Type	170 W UHE
Lamp Life	3000 hours (Normal Mode)
Zoom Ratio	1.35x
Projection Size	30" to 300"
Input Ports	Composite Video (RCA), S-Video (Mini DIN 4-pin), Audio (Stereo Mini Jack), VGA (HD D-sub 15-pin)
Output Ports	VGA (HD D-sub 15-pin)
Noise Level	37 dB (Normal Mode), 30 dB (Low Brightness Mode)
