Projector Part Locations

Check the projector part illustrations to learn about the parts on your projector.

Projector Parts - Front

Projector Parts - Rear

Projector Parts - Top

Projector Parts - Base

Projector Parts - Remote Control

Parent topic: Introduction to Your Projector

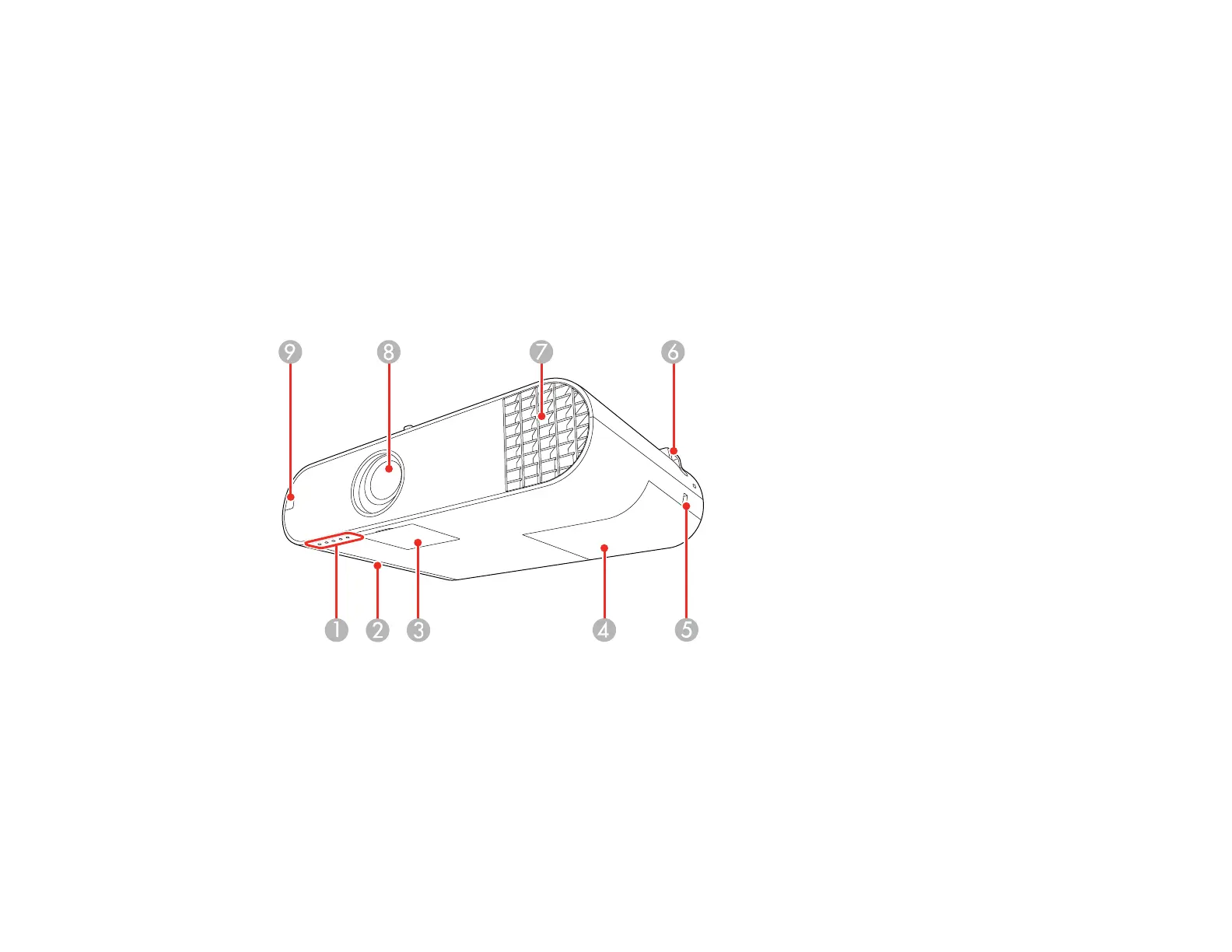

Projector Parts - Front

1 Status lights

2 Air filter cover

3 Power button cover

4 Lamp cover

5 Kensington security slot

6 Security cable attachment point
