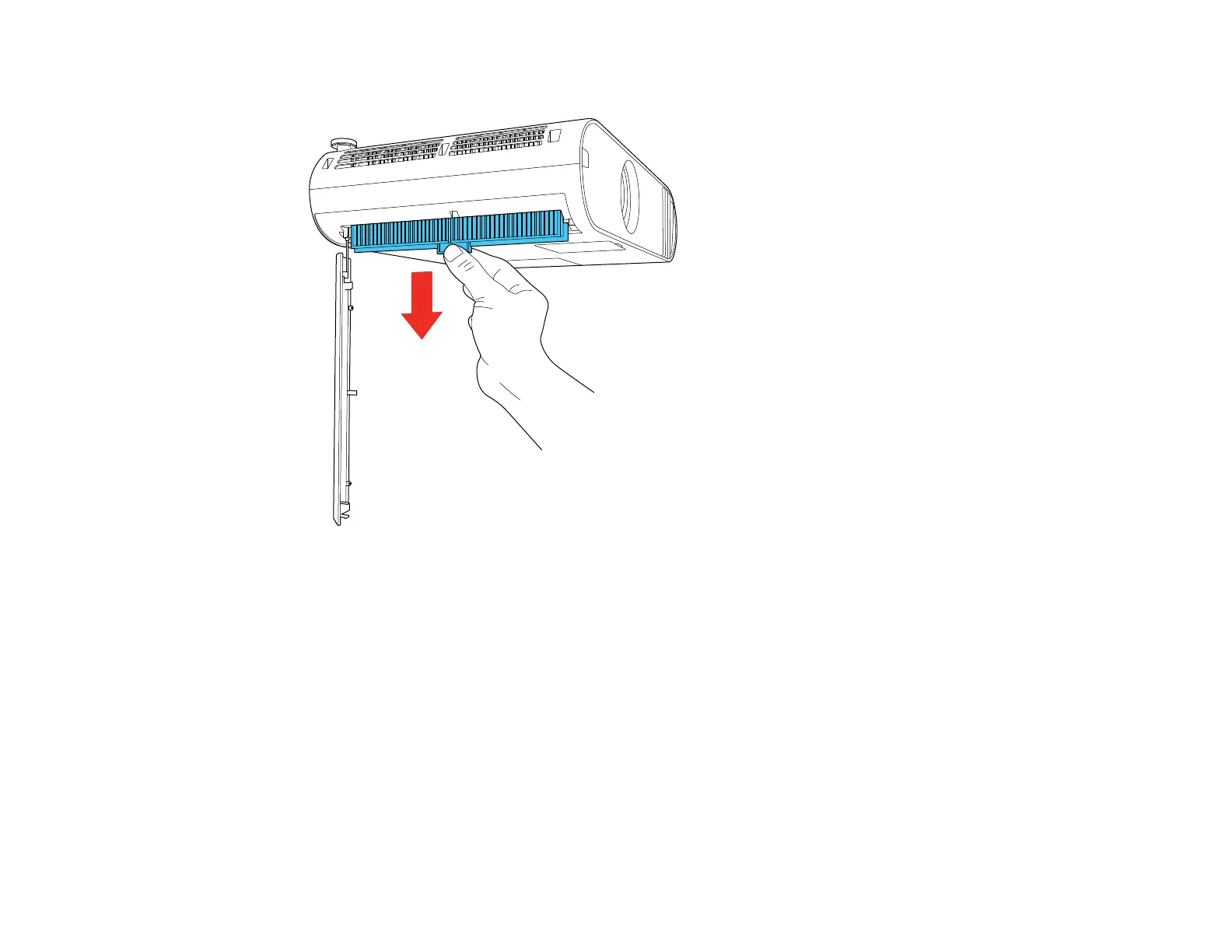

3. Pull the air filter out of the projector.

Note: Air filters contain polypropylene. Dispose of used air filters according to local regulations.
