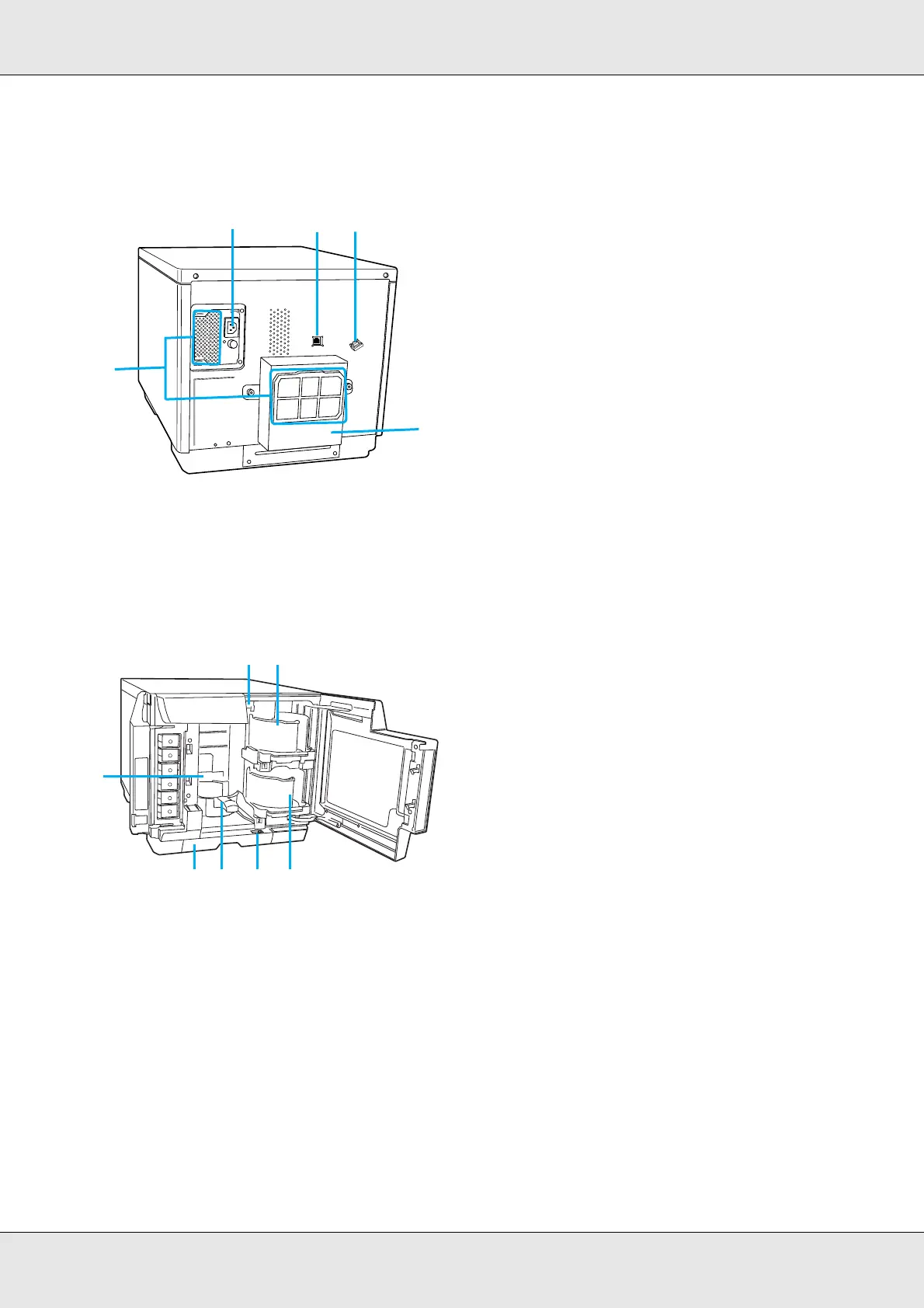

e. AC inlet: Plug in the power cord.
f. USB connector: Connects a USB cable from your
computer to the product.
g. Interface cable locking saddle: Use this for
directing and gathering the cable.
h. Maintenance box cover: Open this cover when
replacing a maintenance box or removing a
disc stuck in the printer tray.
i. Air vent: Leave at least 10 cm (3.94") between
the back of the product and the wall for
ventilation.
j. Arm: Transports discs.
k. Stacker 1: Use stacker 1 as a disc input stacker.
Holds up to 50 discs.
l. Stacker 2: Use stacker 2 as a disc input or output
stacker. Holds up to about 50 discs.
m. Lock lever: Use this lever to lock or unlock
stacker 4. Lock the lever when you use stacker 3.
n. Stacker 3: Use stacker 3 as a disc output stacker.
Holds up to about 50 discs.
o. Stacker 4: Use stacker 4 as a disc output stacker.
Holds up to about 5 discs.
p. Printer: Prints on label surface of discs.
