Epson RC700 - EUROMAP67 Board

Setup & Operation 14. Option Slots
104 RC700 / RC700-A Rev.23
14.8 EUROMAP67 Board
EUROMAP67 is a standardized interface for communications between
Western-manufactured injection molding machines (IMM) and robots.

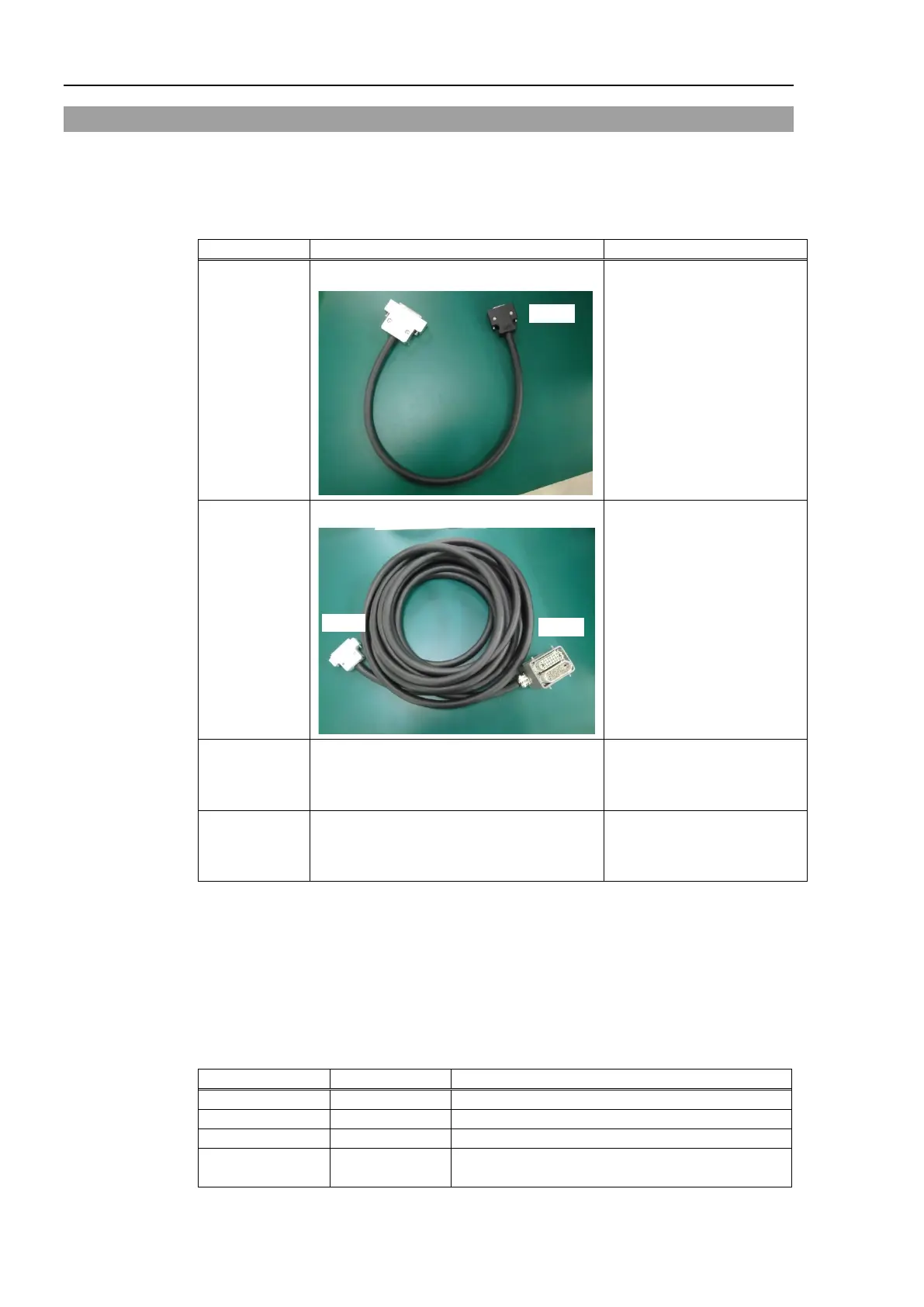

List of accessories
Parts Code
Parts
Note
2194667
EUROMAP67 Cable1
CN2
Emergency Stop cable
(CN2)
2194667
EUROMAP67 Cable2
CN4
CN1
Connection cable
Robot Controller(CN1)
- IMM(CN4)
2165789 EUROMAP67Emergency Connector Plug
For emergency stop switch
wiring
Soldering plug (CN3)
2194882 EUROMAP67Emergency Connector
Shell
For emergency stop switch
wiring
Shell kit (CN3)
Wire the emergency stop switch wiring connector (CN3).
Reference: Setup & Operation 9. EMERGENCY
The connector signal placement is described below.
Setup & Operation 14.8.11 Emergency stop connecter Pin Assignments
List of connectors used
Connecter No.
Manufacturer
Model
CN1
JAE
DD-50PF-N
CN2
3M
10126-3000PE, 10326-52K0-008
CN3 (accessory)
3M
10136-3000PE, 10336-52K0-008
CN4 Tyco
T1319320125-000 / T2020252201-000 /
T2020252101-000
