Epson RC700 User Manual

Maintenance 7. Maintenance Parts Replacement Procedures
RC700 / RC700-A Rev.23 149

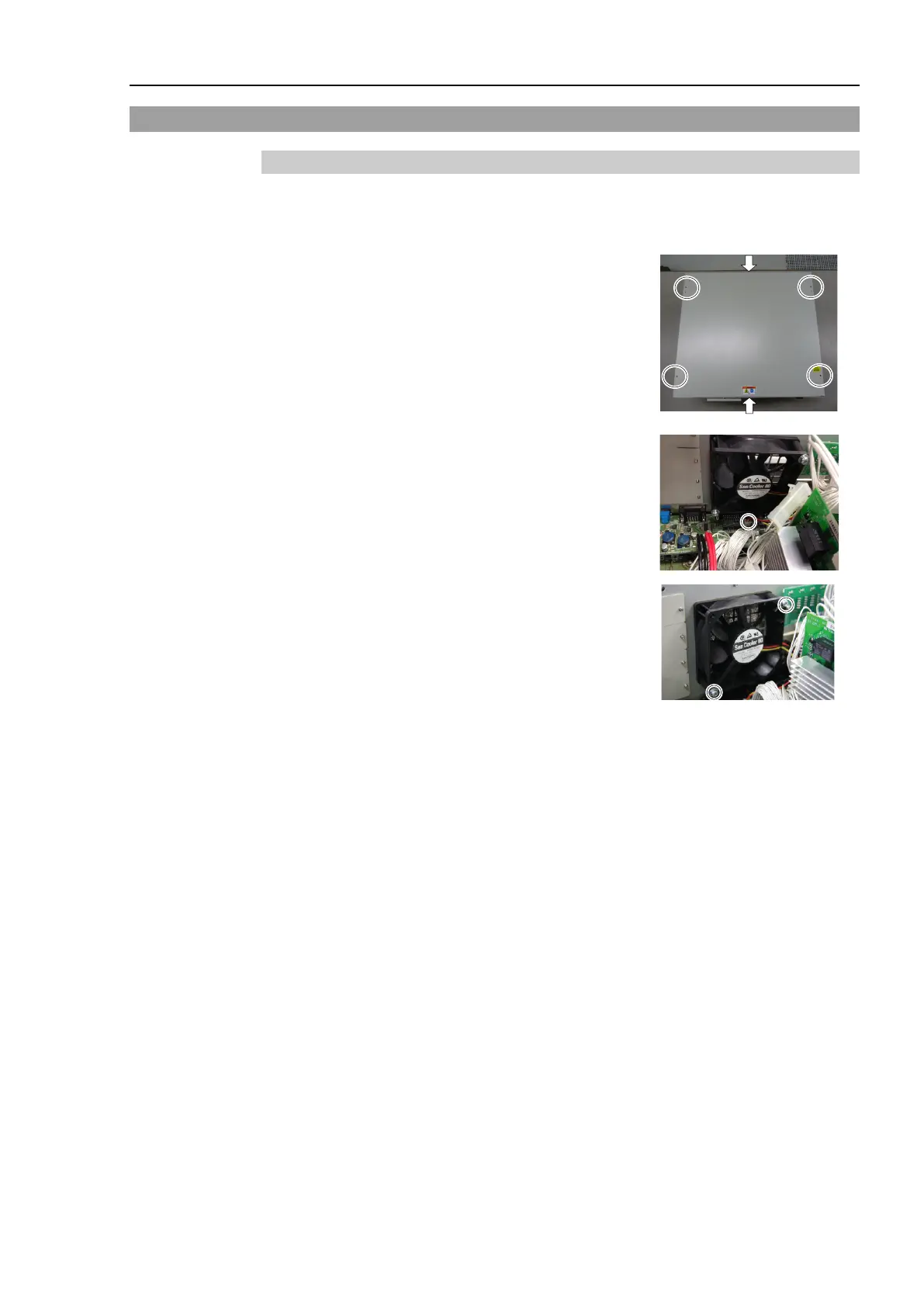

7.2 Fan
7.2.1 Front Fan
Front Fan
Removal
(1)
Turn OFF the Controller.
(2)
Disconnect the power plug.
(3)
Remove the Top Cover. (Mounting screw
×6)
(4)
Remove the fan cable from the DMB
-SUB.
Connector: CN22
(5)
Remove the screws of the fan (
×2).
(6)
Remove the fan.
Front
Fan
Installation
(1)
Mount a new fan with two screws.
At
this point, tighten the screws diagonally. Be careful of the mounting direction.
(2)
Connect the fan cables to the DMB
-SUB.
Connector: CN22
(3)
Mount
the Top Panel. (Mounting screw ×6)
(4)
Connect the power plug
. Turn ON the Controller and make sure that the
Controller
starts properly without any vibration or abnormal noise.
* Pay attention to the right and wrong sides of the fan when installing it.

Epson RC700 Specifications

General

Maximum Axes	16
Communication Interfaces	Ethernet, EtherNet/IP, PROFINET, PROFIBUS, CC-Link, RS-232C, USB
Safety Standards	ISO 10218-1, ISO/TS 15066, IEC 61508, IEC 61511, ANSI/RIA R15.06
Operating System	VxWorks
Power Supply	24 VDC
