Setup & Operation 12. I/O Remote Settings

76 RC700 / RC700-A Rev.23

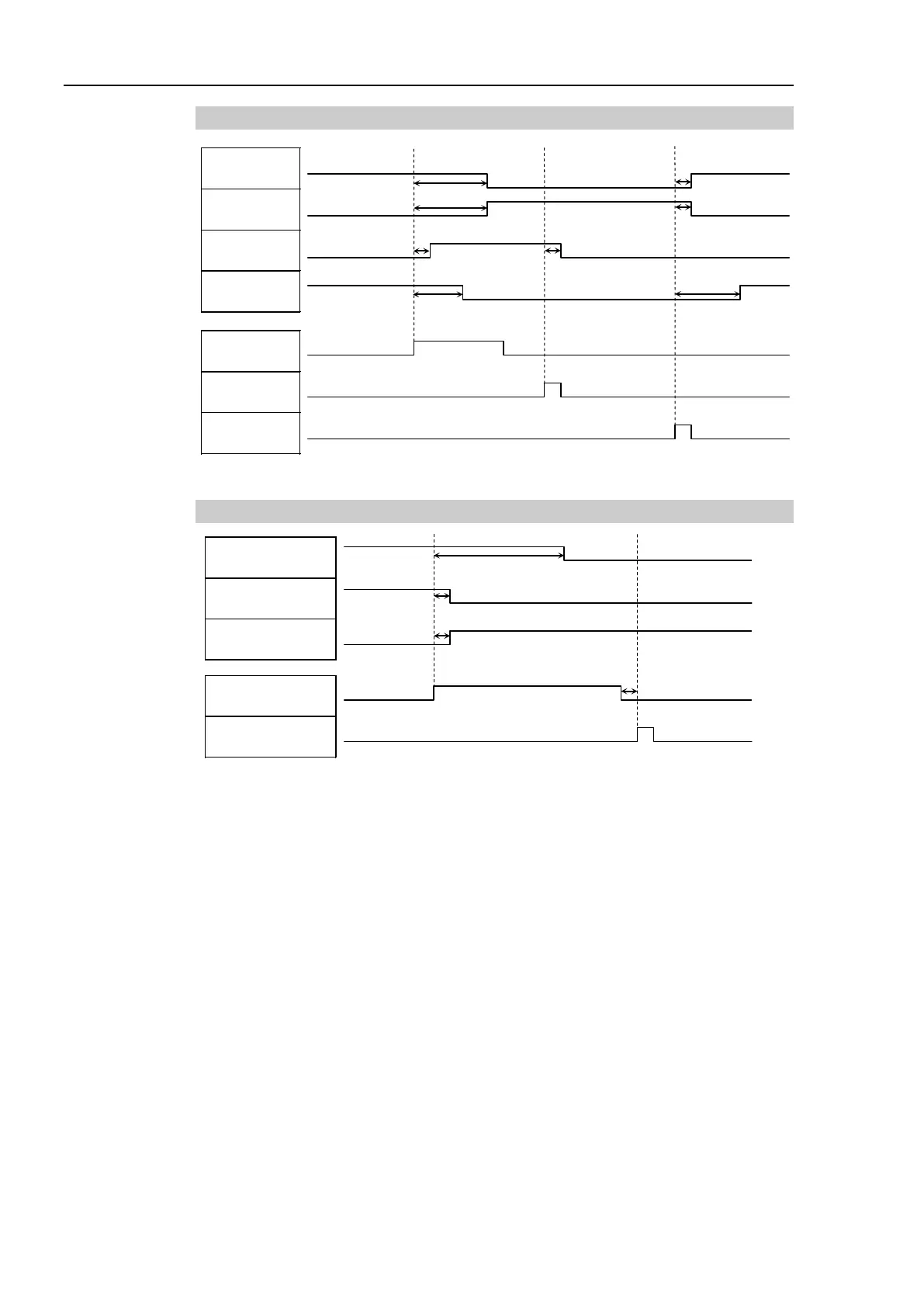

12.2.4 Timing Diagram for Safety Door Input Sequence

1052

500

928

Running

Output

Paused

Output

SafeguardOn

Output

MotorsOn

Output

Safety Input

Latch Input

Continue

Input

[Unit: msec]

12.2.5 Timing Diagram for Emergency Stop Sequence

920

Running

Output

MotorsOn

Output

EStopOn

Output

Emergency Input

Reset

Input

[Unit: msec]
