Setup & Operation 14. Option Slots

110 RC700 / RC700-A Rev.23

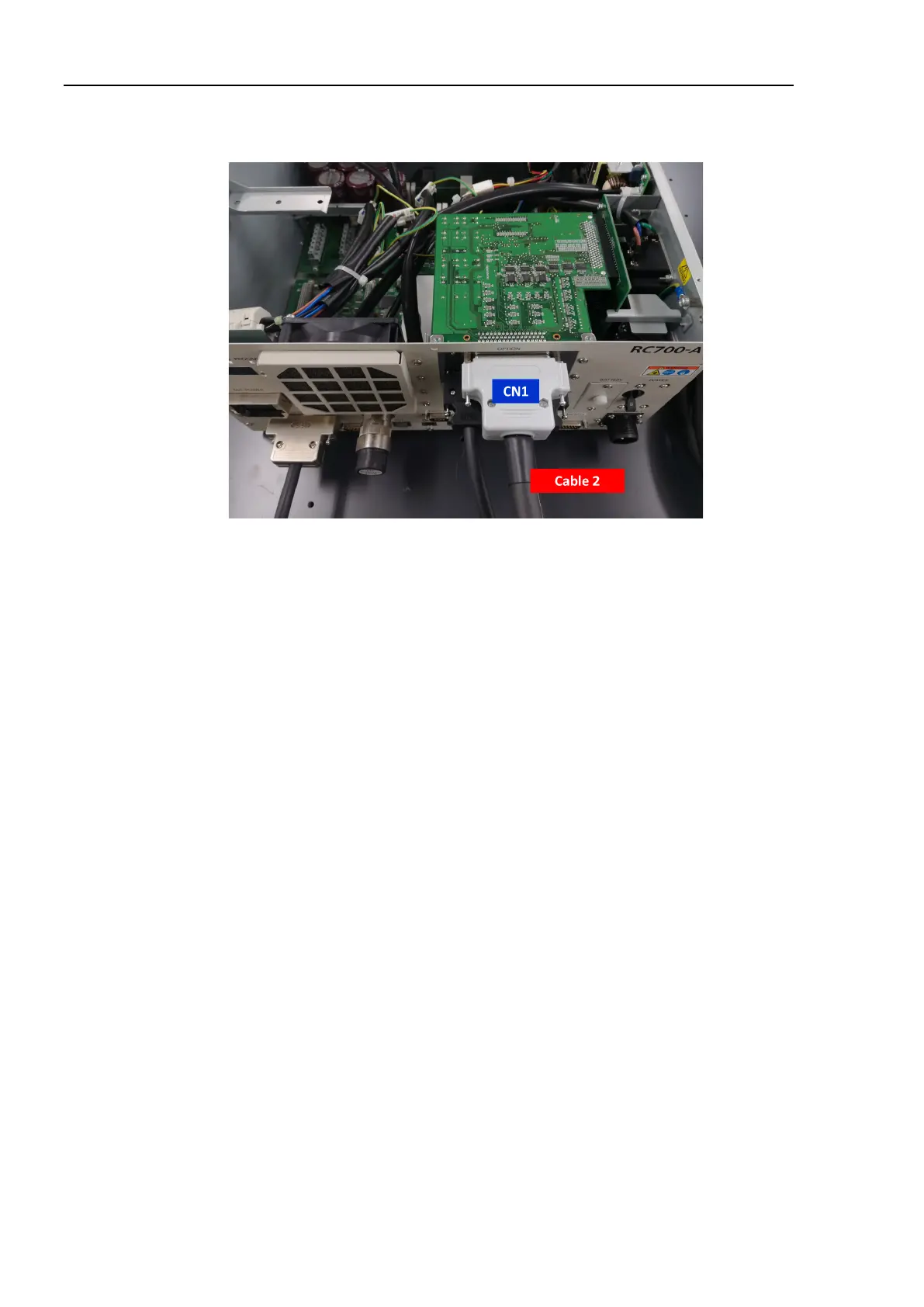

(9) Connect “Cable2 CN1”.

Use a cross-point screwdriver to fasten the connector (CN1).

(10) Mount the Top Panel. (Mounting screw ×6)

(11) Connect “Cable2 CN4” to the IMM.

(12) Connect the power plug. Turn ON the Controller and make sure that the Controller

starts properly without any vibration or abnormal noise.
