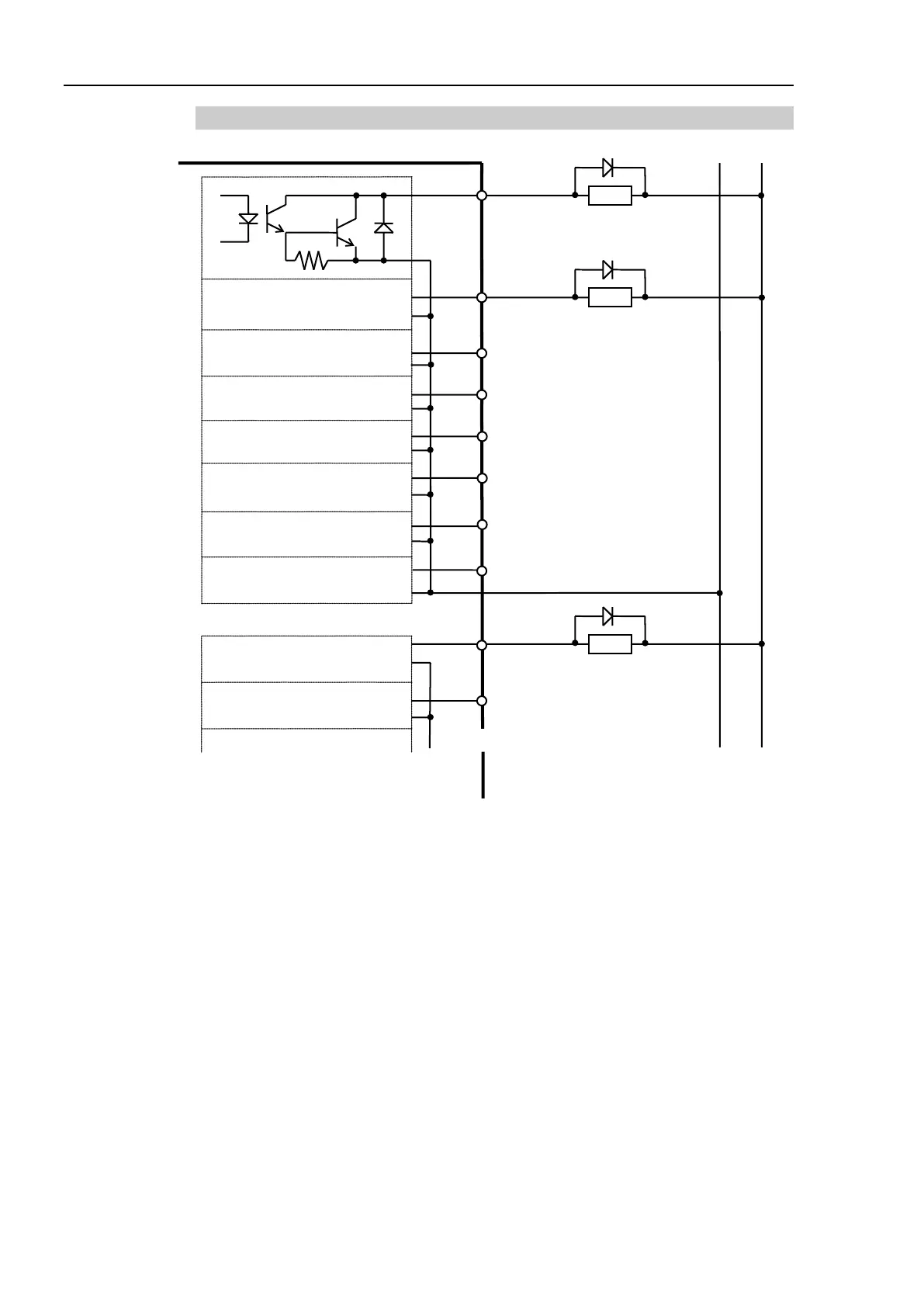

Typical Output Circuit Application 1: Sink Type
10 Output No.64
12 Output No.66
11 Output No.65
13 Output No.67
29 Output No.72
17 Output No.64 to 71 Common (GND)
30 Output No.73
L
L
GND +DC
L
Omit
～
～
～
～
14 Output No.68
15 Output No.69
27 Output No.70
28 Output No.71
(Same)
(Same)
(Same)
(Same)
(Same)
(Same)
(Same)
