EPSON Stylus C67/C68/D68 Revision A
ADJUSTMENT Adjustment by Using Adjustment Program 86
5.2.10 A4 Normal Paper print
[Adjustment Procedure]
1. Select A4 Normal Paper print in the adjustment program.
2. Click the [Print] button to print A4 Normal Paper print pattern.

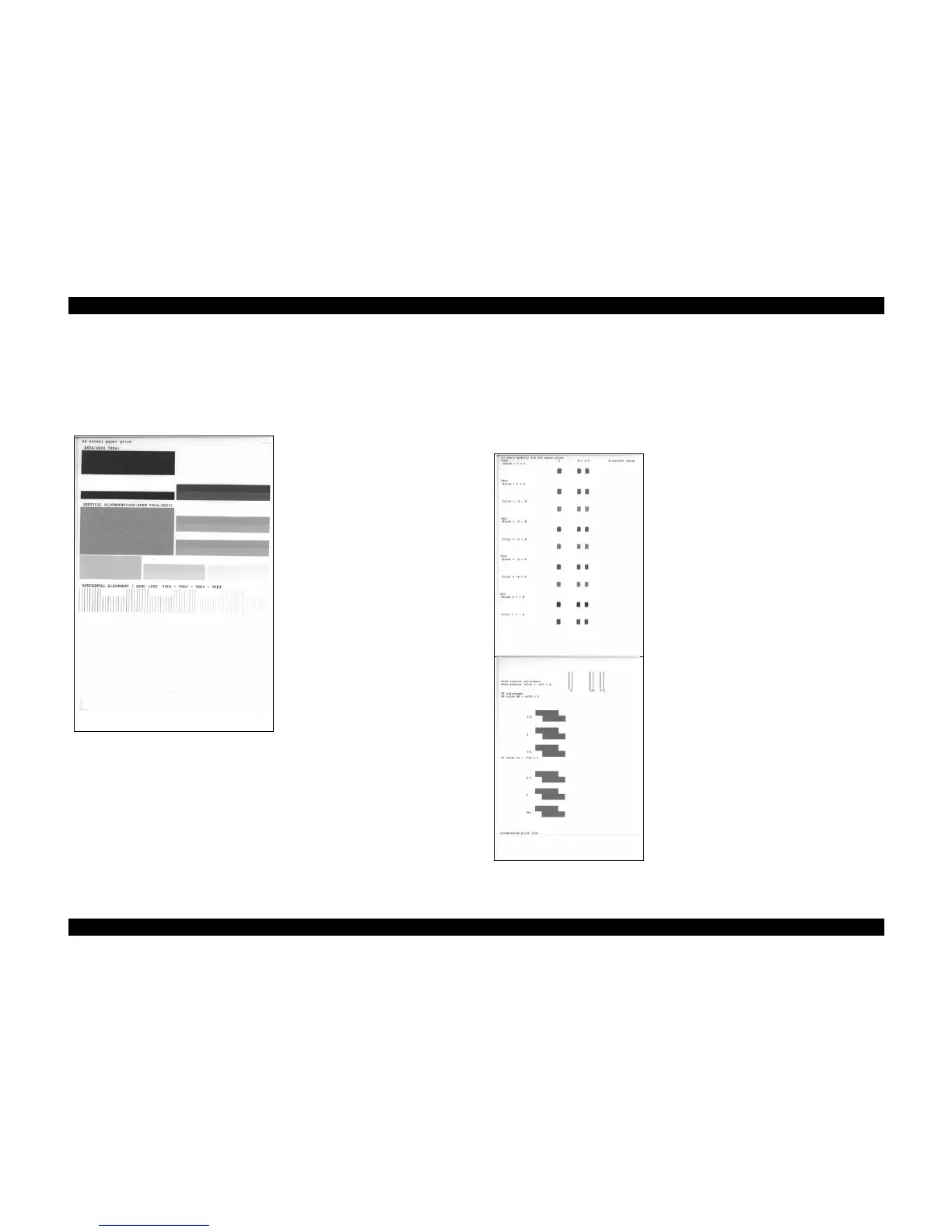

Figure 5-6. A4 Normal Paper Print Pattern
5.2.11 A4 Photo Quality Inkjet Paper Print
[Adjustment Procedure]
1. Select A4 Photo Quality Inkjet Paper print in the adjustment program.
2. Click the [Print] button to print A4 Photo Quality Inkjet Paper print pattern.
3. Check the adjustment result in each pattern.
Figure 5-7. A4 Photo Quality Inkjet Paper Print Pattern
[Judging Standard]
- PW Sensor adjustment
Top / Bottom : 5.0+0.5/-1.0mm
Right / Left : 5.0+0.3/-1.0mm
- Beta pattern
No uneven printing / white line.
- Vertical alignment
No thin dot or thick dot / vertical
alignment.
- Horizontal alignment
No displacement between the vertical
rules of each VSD.
[Judging Standard]
- Bi-D adjustment
Make sure that “X“ is the best pattern of the
three.
- Top Margin adjustment
3
± 1mm from top edge.
( This standard is different from that of
individual Top Margin adjustment. The
standard of individual Top Margin adjustment
is added about 0.6mm by the circumstance.)
- First Dot adjustment
3
± 1.5mm from left edge.
- Head Angular adjustment
Make sure that “X“ is the best pattern of the
three.
- PF adjustment
Make sure that “X“ is the best pattern of the
three.
- Accumulated Pitch Line
259.5
± 1mm from top line.
