Epson Stylus CX4905 - PS Board Unit

EPSON Stylus CX4900/CX4905/CX5000/DX5000/DX5050/CX5900/CX6000/DX6000/DX6050 Revision A
DISASSEMBLY/ASSEMBLY Printer Section 139
4.4.10 PS Board Unit
 External view

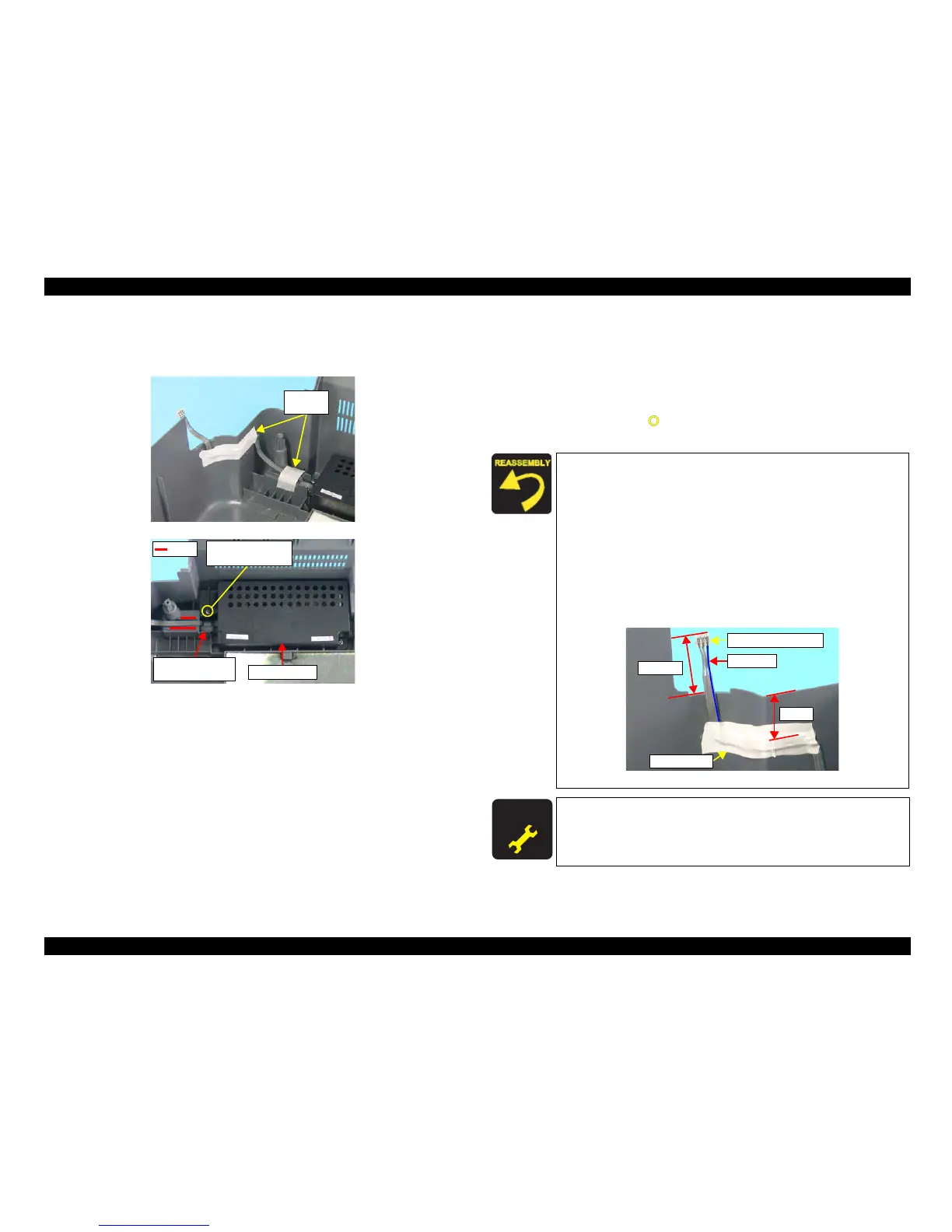

Figure 4-18. Removing PS Board Unit
 Part/Unit
that should be removed before removing PS Board Unit
Document Cover / Panel Unit / Scanner Unit / Housing, Upper /
Printer Mechanism
 Removal procedure
1. Peel off the acetate tapes (x2) that secure the PS Connector Cable.
2. Remove the screw (x1, ) that secures the PS Board Unit, and remove the PS
Board Unit.
Acetate
Tapes
C.B.P. 3x10 F/Zn
(4±1kgfcm)
Ferrite Core and
Dent
Rib
PS Board Unit
 Place the Ferrite Core to the dent of the Housing, Lower.
 Route the PS Connector Cable between the ribs of the Housing,
Lower, and secure them with acetate tape.
 When r
outing the PS Connector Cable between the ribs of the
Housing, Lower, pay attention to the following instructions.
• The gap between the PS Connector Cable and the Edge of the
Housing. Lower should be 15 mm.
• The PS Connector Cable should be run off the edge of the
Housing, Lower for 40 ± 2 mm.
• The blue line of the PS Connector Cable should be facing rear
of the Housing, Lower.
Figure 4-19. Routing PS Connector Cable
A D J U S T M E N T
R E Q U I R E D
After replacing the PS Board Unit, perform the adjustment
referring to Table 5-1."Required Adjustments" (p172)
40±2mm
Red Line
15mm
PS Connector Cable
Acetate Tape
