Epson Stylus CX4905 User Manual

EPSON Stylus CX4900/CX4905/CX5000/DX5000/DX5050/CX5900/CX6000/DX6000/DX6050 Revision A
DISASSEMBLY/ASSEMBLY Printer Section 154
4.4.20 Carriage Unit/CR Encoder Board/PW Sensor
Board/Head FFC
 External view (1)

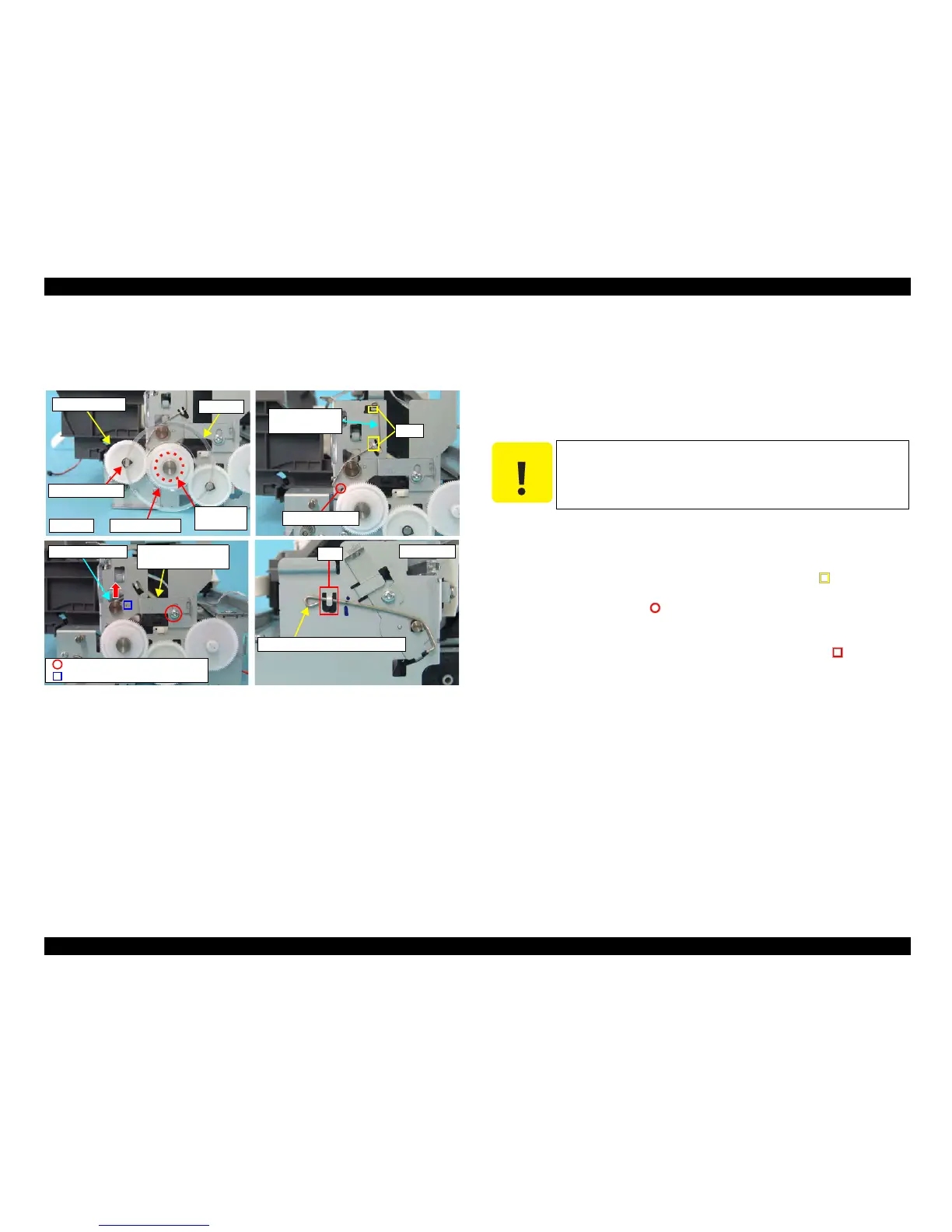

Figure 4-39. Removing Carriage Unit (1)
 Part/Unit
that should be removed before removing Carriage Unit/
CR Encoder Board/PW Sensor Board/Head FFC
Document Cover / Panel Unit / Scanner Unit / Housing, Upper / Housing, Lower /
Main Board Unit / CR Guide Frame / CR Motor / CR Scale
 Removal procedure
 Carriage Unit Removal
1. Rem
ove the PF Scale that is secured to Spur Gear 32.4 with double-sided
tape (x1).
2. Remove Spacer (4.1 x 0.5) that secures Spur Gear 30.8, and remove Spur
Gear 30.8 from the Main Frame.
3. Release CR Guide Shaft Torsion Spring from the tabs (x2, ) of the Main
Frame, and remove CR Guide Shaft Torsion Spring from the Main Frame.
4. Remove the screw (x1, ) that secures the Parallel Adjustment Lever (Left),
and remove the Parallel Adjustment Lever (Left) from Main Frame while
lifting left end of the Carriage Guide Shaft upward.
5. Release the CR Guide Shaft Pressing Spring from the tab (x1, ) of the Main
Frame, and remove the CR Guide Shaft Pressing Spring from the Main
Frame.
Spacer (4.1x0.5)
Spur Gear 30.8
PF Scale
Left Side
Double-
sided Tape
Spur Gear 32.4
CR Guide Shaft
Torsion Spring
Installation Hole
Tabs
Parallel Adjustment
Lever (Left)
CR Guide Shaft
C.B.S.(P2) 3x6 F/Zn (7±1kgfcm)
Guide Pin
Right Side
CR Guide Shaft Pressing Spring
Tab
C A U T I O N
Be cautious of the following points.
 Do
not touch PF Scale with bare hands.
 Do not damage PF Scale.
