5.2.16 PF Band Adjustment
 Procedure
1. Load an A4-sized plain paper on the ASF.
2. Select “PF Adjustment” from the adjustment program.
3. Click [Print] to print the PF band adjustment pattern.
4. Examine the printed pattern from the group with a minus value and select a
value for the first group of blocks that has no gap or overlap.
5. Click [Input] to write the selected adjustment value.
 Supplement
If none of the groups satisfy the OK level, inp
ut a value for the least worst
group and print the pattern again to repeat the adjustment.

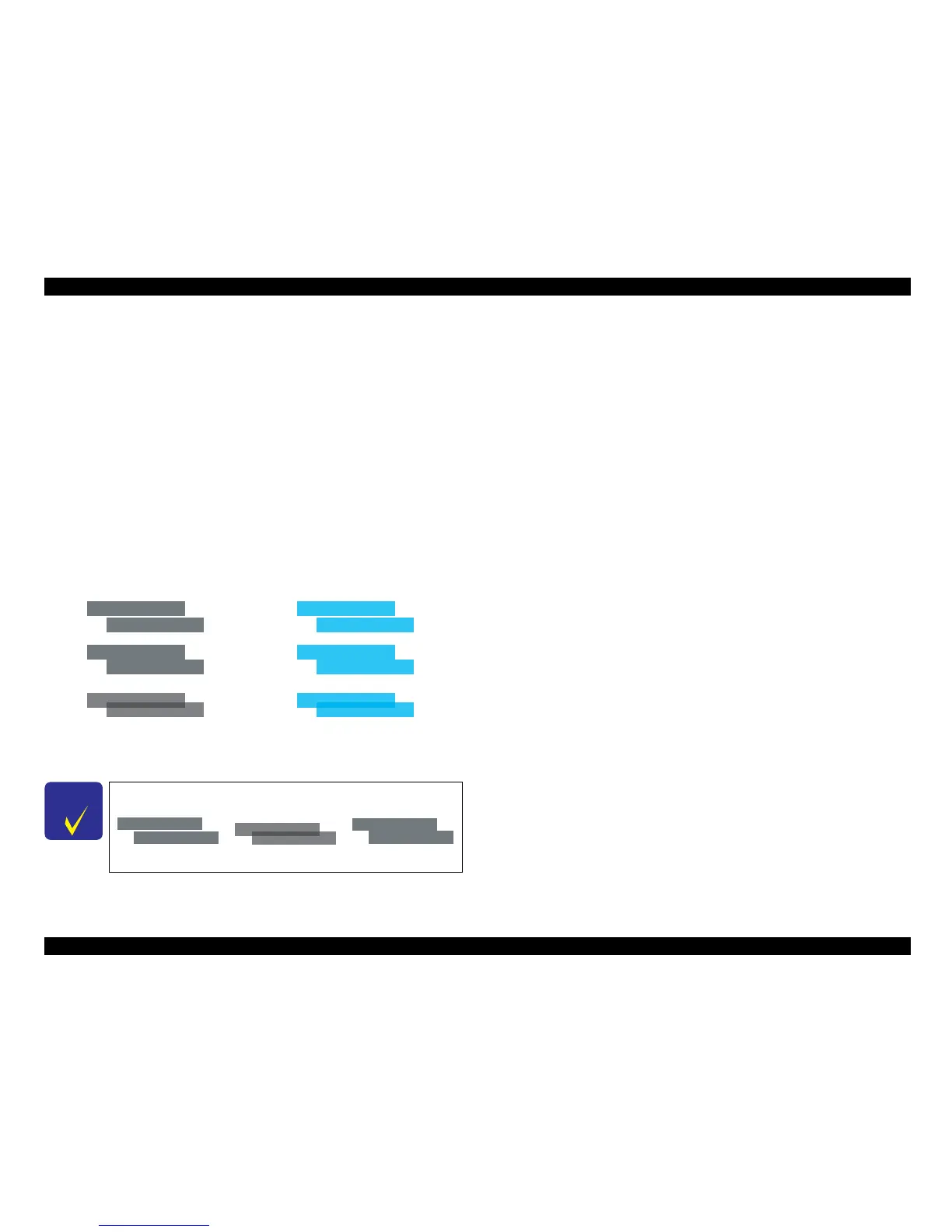

Figure 5-13. PF Band Adjustment Pattern
C H E C K
P O I N T
Sample of OK and NG patterns
-1
0
1
PF band adjustment Black PF band adjustment Color
-1
0
1
NG NG OK
