EPSON Stylus CX4900/CX4905/CX5000/DX5000/DX5050/CX5900/CX6000/DX6000/DX6050 Revision A
PRODUCT DESCRIPTION Memory Card Print 38

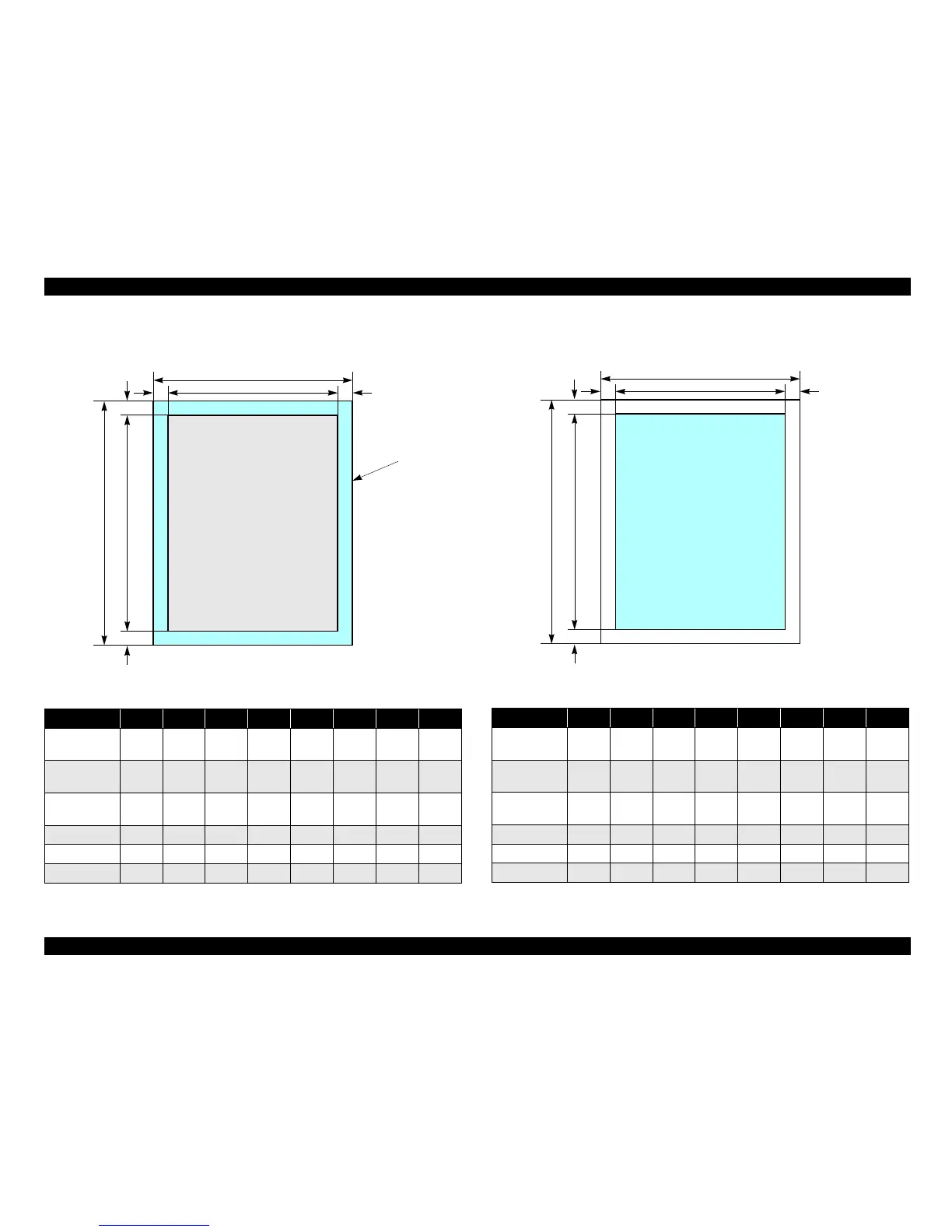

1.5.8 Layout Drawings
1.5.8.1 Border Free
Figure 1-16. Border Free
Note *1: Letter, 4" x 6", and 5" x 7" size will be used for EAI models.
*2: 10 x 15, and 13 x 18 size will be used for EMC/Asia, Pacific models.
1.5.8.2 1-up with Borders
Figure 1-17. 1-up with Borders
Note *1: Letter, 4" x 6", and 5" x 7" size will be used for EAI models.
*2: 10 x 15, and 13 x 18 size will be used for EMC/Asia, Pacific models.
Table 1-35. Border Free (unit: mm (inch))
Paper type A B C D E F G H
Letter
*1
215.90
(8.50)
279.40
(11.00)
220.98
(8.70)
287.53
(11.32)
2.54
(0.10)
2.54
(0.10)
2.96
(0.12)
4.02
(0.16)
4" x 6"
*1
101.60
(4.00)
152.40
(6.00)
106.68
(4.20)
160.53
(6.32)
2.54
(0.10)
2.54
(0.10)
2.82
(0.11)
3.60
(0.14)
5" x 7"
*1
127
(5.00)
178
(7.00)
132.08
(5.20)
186.04
(7.32)
2.54
(0.10)
2.54
(0.10)
2.96
(0.12)
4.02
(0.16)
A4 210 297 215.08 305.04 2.54 2.54 2.96 4.02
10 x 15
*2
101.60 152.40 106.68 160.53 2.54 2.54 2.82 3.60
13 x 18
*2
127 178 132.08 186.04 2.54 2.54 2.96 4.02
Paper
A
C
FEG
H
BD
Printable
area
Table 1-36. Border Free (unit: mm (inch))
Paper type A B C D E F G H
Letter
*1
215.90
(8.50)
279.40
(11.00)
209.90
(8.26)
273.40
(10.76)
3.00
(0.12)
3.00
(0.12)
3.00
(0.12)
3.00
(0.12)
4" x 6"
*1
101.60
(4.00)
152.40
(6.00)
95.60
(3.76)
146.40
(5.76)
3.00
(0.12)
3.00
(0.12)
3.00
(0.12)
3.00
(0.12)
5" x 7"
*1
127.0
(5.00)
178.0
(7.00)
121.0
(4.76)
172.0
(6.76)
3.00
(0.12)
3.00
(0.12)
3.00
(0.12)
3.00
(0.12)
A4 210 297 204 291 3.00 3.00 3.00 3.00
10 x 15
*2
101.60 152.40 95.60 146.40 3.00 3.00 3.00 3.00
13 x 18
*2
127.0 178.0 121.0 172.0 3.00 3.00 3.00 3.00
Printable area
C
A
FEG
H
DB
