Epson Stylus D120 User Manual

EPSON Stylus C110/C120/D120 Revision B
ADJUSTMENT Using the Adjustment Program 114
5.2.5 PF Adjustment
 PF- for standard print area
The following pattern is printed.

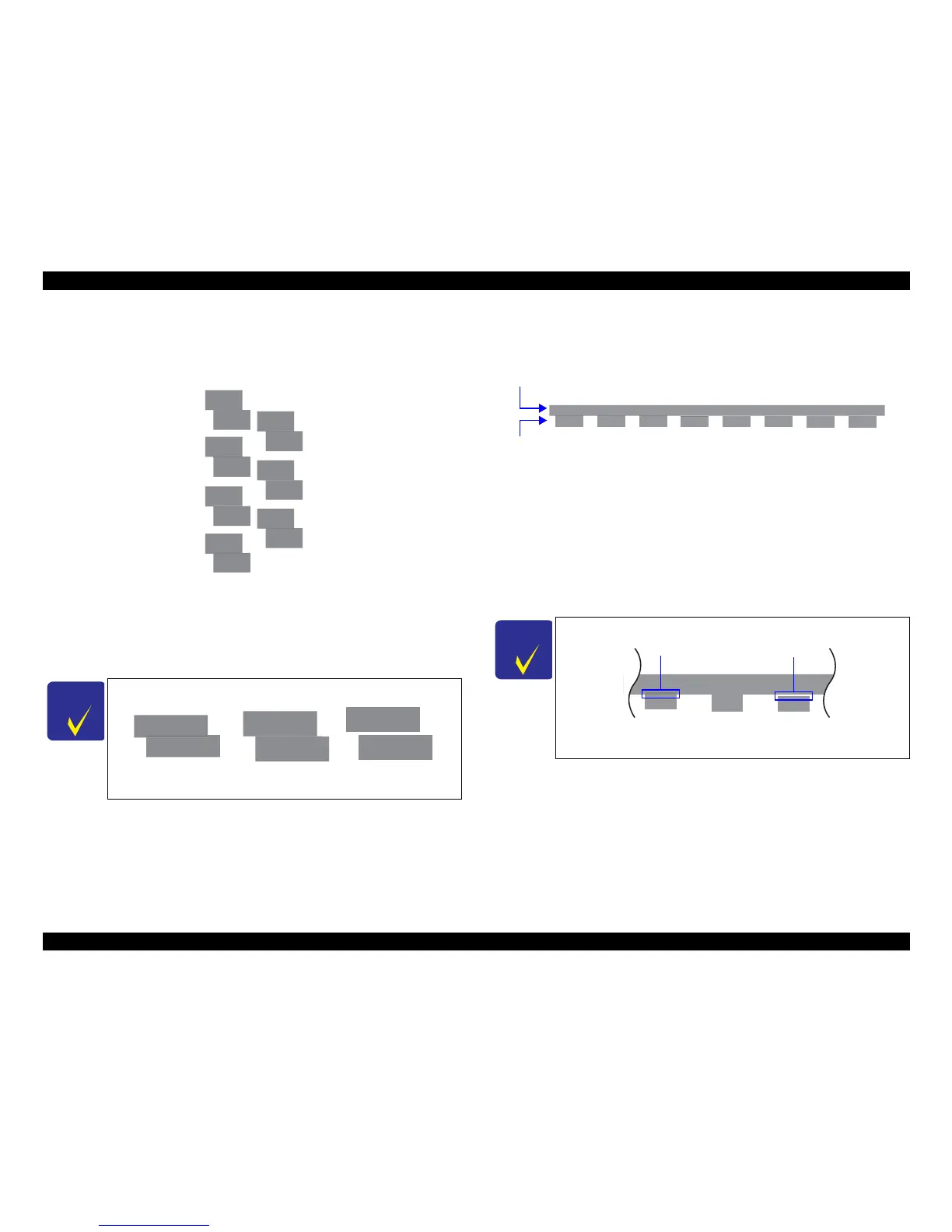

Figure 5-5. PF (standard print area) Adjustment Printout Pattern
How to Judge
Examine the printout patterns and enter the value for the pattern with no overlap and
gap between the two rectangles.
 PF- for bottom margin area
The following pattern is printed.
Figure 5-6. PF (bottom margin area) Adjustment Printout Pattern
How to Judge
Examine the printout patterns, and enter the value for the pattern with no overlap and
gap between the upper and lower ones.
Additional Information
When overlap and gap are observed in the all patterns, enter the value for the best one,
and print the adjustment pattern again.
C H E C K
P O I N T
Example for judgement
1
-1
-3
-5
0
-2
-4
OK
NG
NG
C H E C K
P O I N T
Example for judgement
-5 -4 -3 -2 -1 0 1-6
Upper pattern
Lower pattern
OK NGNG
Gap
Overlap
