EPSON Stylus C110/C120/D120 Revision B
ADJUSTMENT Using the Adjustment Program 112
5.2 Using the Adjustment Program
This section describes how to judge the adjustment patterns printed by the Adjustment
Program. For information on how to operate the Adjustment Program, see the
instructions displayed by the Adjustment Program.
5.2.1 TOP Margin Adjustment
The following pattern is printed.

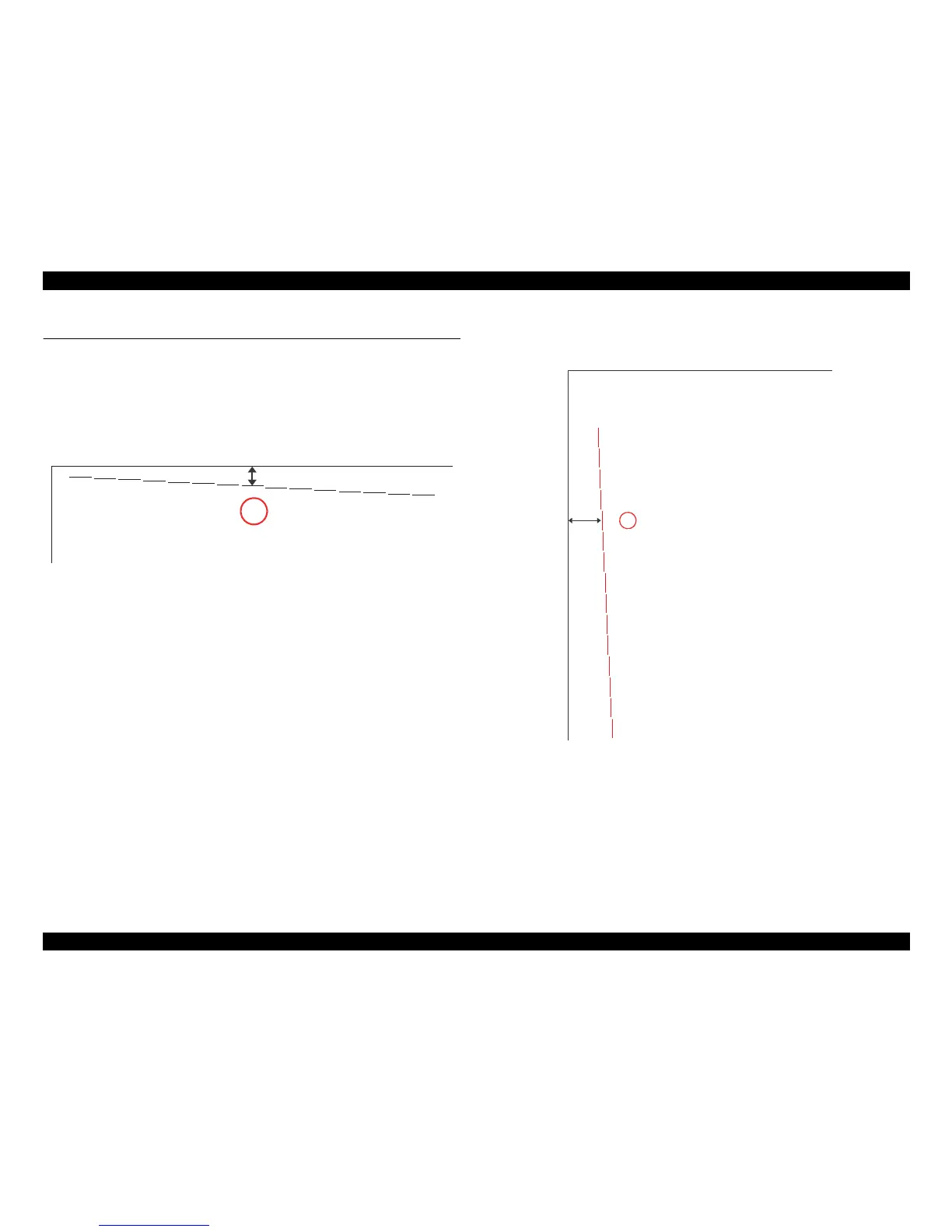

Figure 5-1. Top Margin Adjustment Printout Pattern
How to Judge
Measure the length from the top edge of the paper to the printed line. Enter the value
for the line that is exactly 3 mm away from the top edge.
5.2.2 First Dot Position Adjustment
The following pattern is printed.
Figure 5-2. Fist Dot Position Adjustment Printout Pattern
How to judge
Measure the length from the left edge of the paper to the printed line. Enter the value
for the line that is exactly 5 mm away from the left edge.
-7 -6-5 -4-3 -2-1 0 1 2 3 4 5 6 7
3mm
-7
-6
-5
-4
-3
-2
-1
0
1
2
3
4
5
6
7
5mm
