MAINTENANCE Overview 118
6.1.3 Lubrication
The type and amount of the grease used to lubricate the printer parts are determined
based on the results of the internal evaluations. Therefore, be sure to apply the
specified type and amount of the grease to the specified part of the printer mechanism
on the following occasion.
 Any parts required the lubrication are replaced.
 The printer is disassembled/assembled. (If necessary)
 Refer to the following figures for the lubrication points.

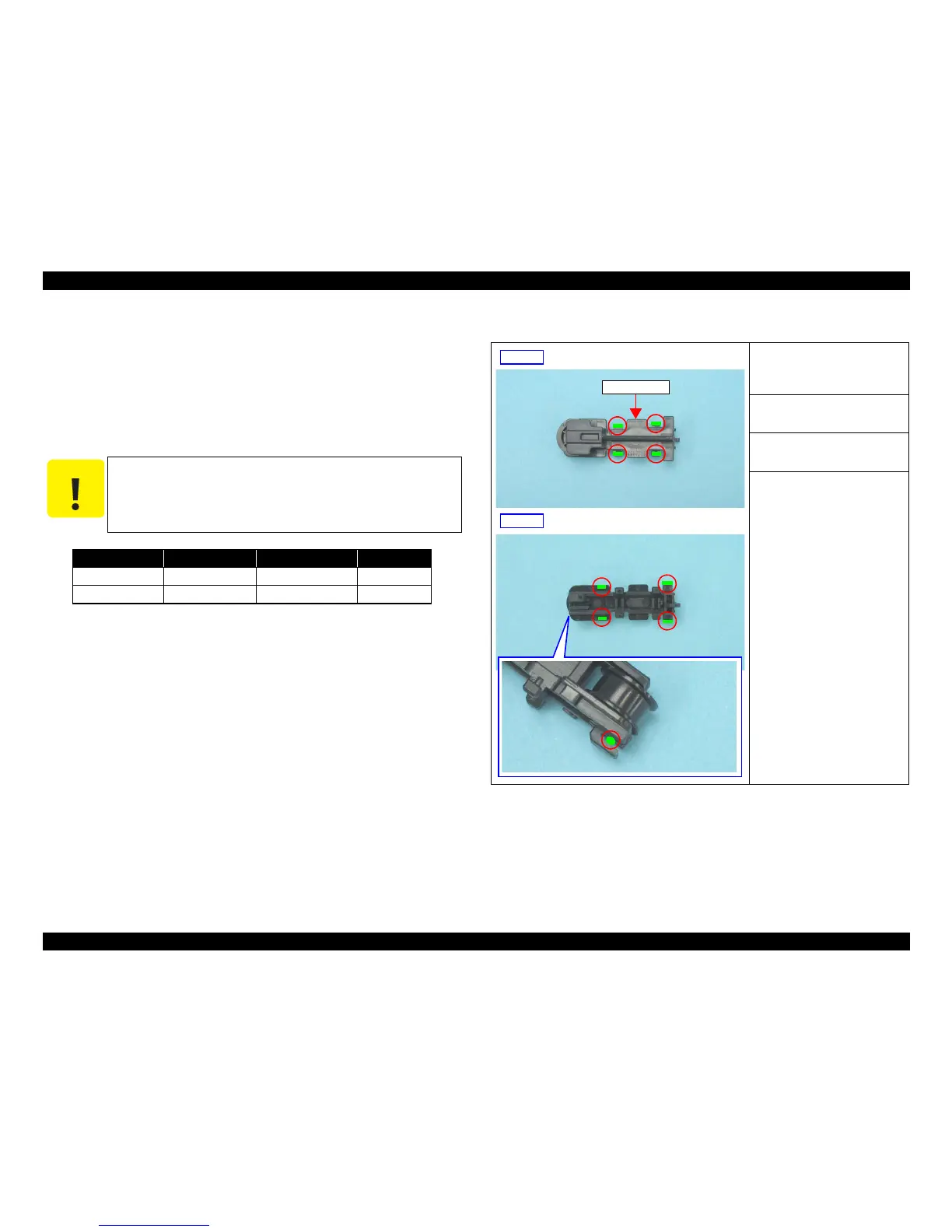

Figure 6-1. Lubrication on Driven Pulley
C A U T I O N
 Never use oil or grease other than those specified in this
manual. Use of different types of oil or grease may damage the
component or give bad influence on the printer function.
 Never apply larger amount of grease than specified in this
manual.
Type Name
EPSON Code
Supplier
Grease
G-71 1304682 EPSON
Grease
G-74 1409257 EPSON
<Lubrication Point>
Contact points (x 9) with the Main
Frame.
<Lubrication Type>
G-71
<Lubrication Amount>
φ 1 mm x 1 mm
<Remarks>
Use an injector to apply G-71.
Front
Back
Driven Pulley
