Epson Stylus D120 User Manual

EPSON Stylus C110/C120/D120 Revision B
MAINTENANCE Overview 119

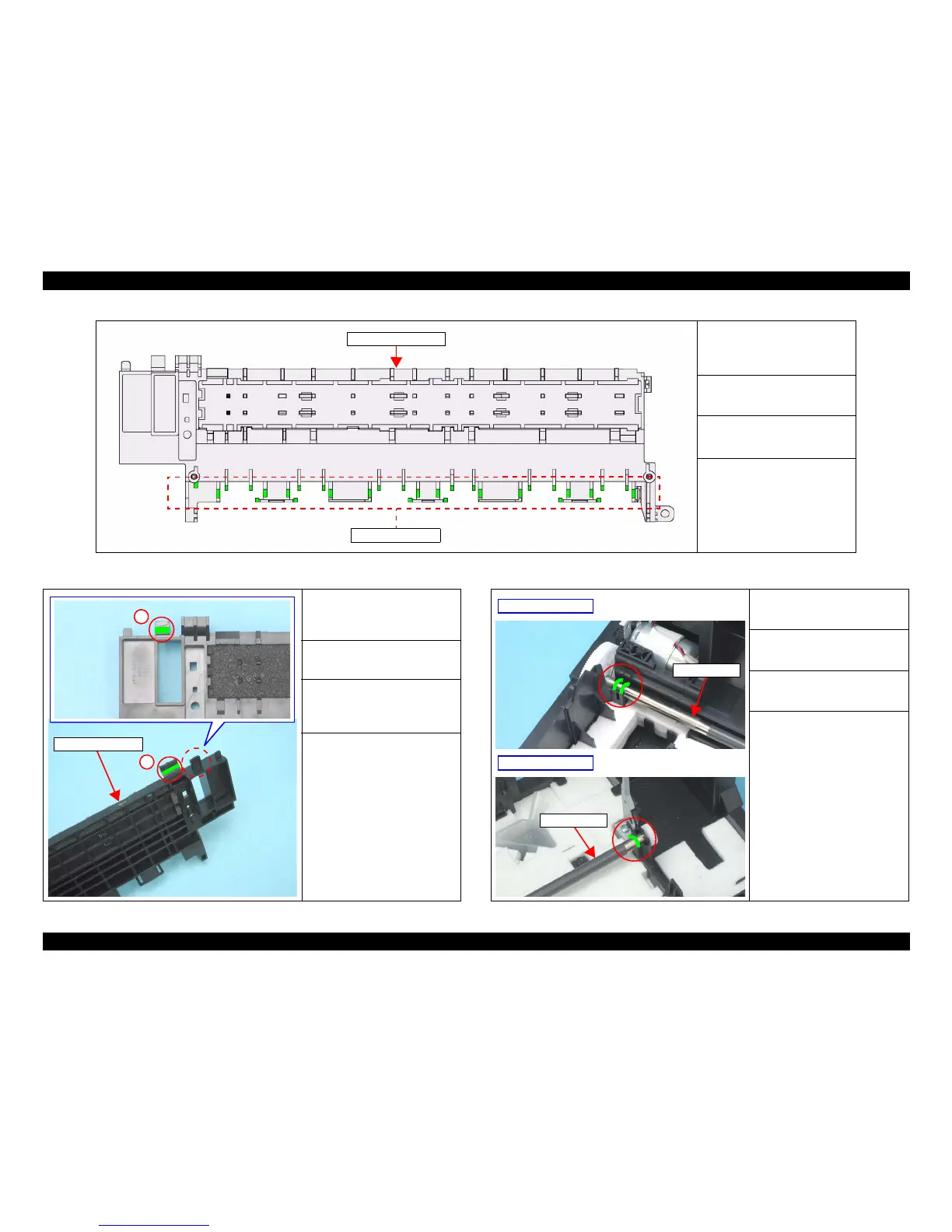

Figure 6-2. Lubrication on Front Paper Guide (1)
Figure 6-3. Lubrication on Front Paper Guide (2)
Figure 6-4. Lubrication on PF Roller
<Lubrication Point>
Contact points (x 31) with the EJ
Roller.
<Lubrication Type>
G-74
<Lubrication Amount>
0.04g/point
<Remarks>
Use a brush to apply G-74.
Front Paper Guide
Lubrication Points
<Lubrication Point>
Contact areas (x 2) with the PF
Roller.
<Lubrication Type>
G-71
<Lubrication Amount>
φ 1 mm x 4 mm
φ 1 mm x 6 mm
<Remarks>
Use an injector to apply G-71.
Front Paper Guide
1
2
<Lubrication Point>
Bearing of the PF Roller.
<Lubrication Type>
G-71
<Lubrication Amount>
φ 1 mm x around shaft (x 3)
<Remarks>
 Use an injector to apply G-71.
 Rotate PF roller when lubricate
it with G-71.
PF Roller (Left)
PF Roller (Right)
PF Roller
PF Roller
