EPSON Stylus C110/C120/D120 Revision B
DISASSEMBLY/ASSEMBLY Disassembling Printer Mechanism 83

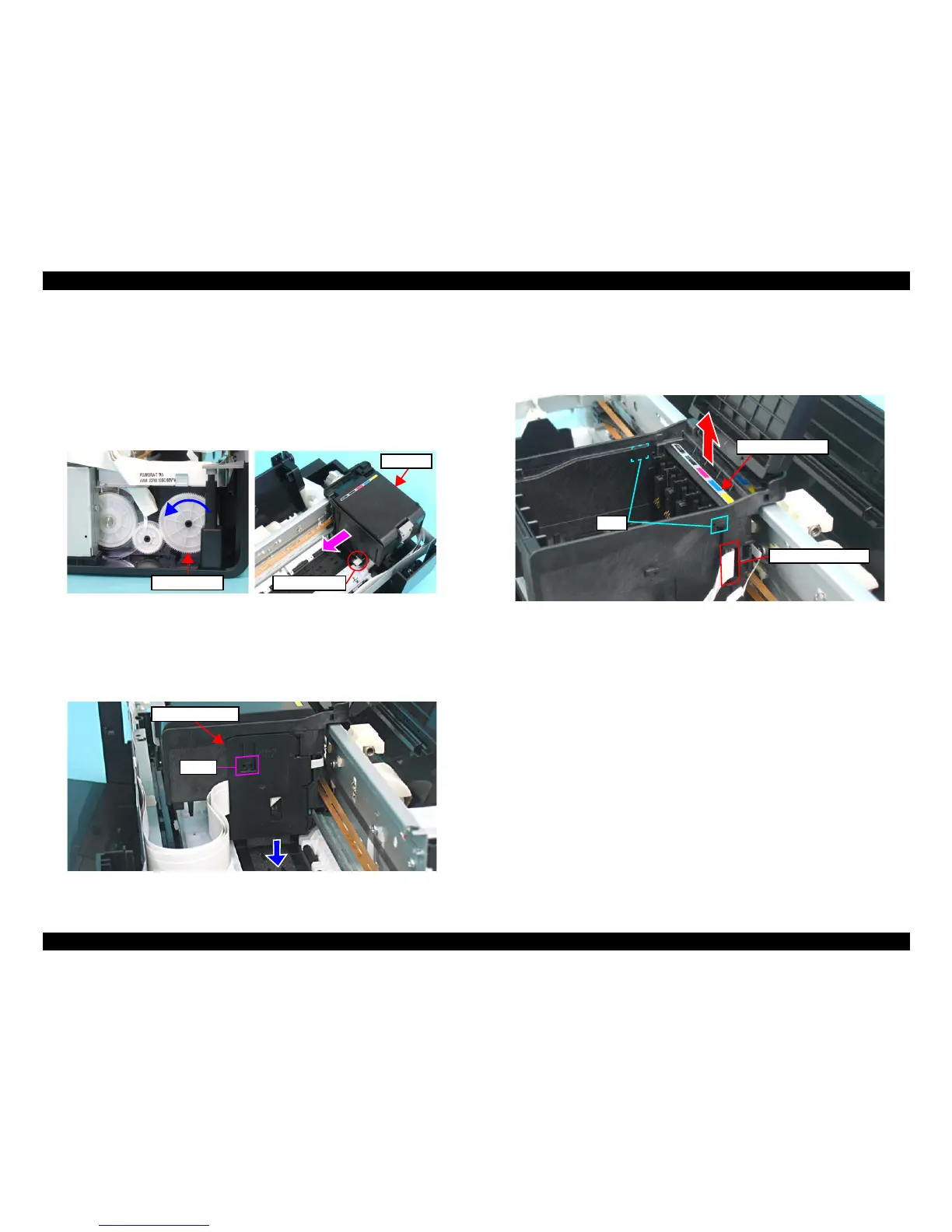

4.5.2 Printhead
 Part/Unit that should be removed before removing Printer Mechanism
Upper Housing
 Removal Procedure
1. Turn the Spur Gear 51.5 in the direction of the arrow to release the Carriage Lock,
and then move the CR Unit to the center of the printer.
Figure 4-26. Unlocking and Moving CR Unit
2. Open the Cartridge Cover and remove all the ink cartridges from the CR Unit.
3. Release the hook (x1) of the Head Cable Cover with a flathead precision
screwdriver, and remove the Head Cable Cover while sliding it downward (in the
direction of the arrow).
Figure 4-27. Removing Printhead (1)
4. Disconnect the Head FFC (x1) that is connected to the CSIC Board.
5. Release the tabs (x2) that secure the Holder Board Assy. using a needle or a
similar tool, and remove the Holder Board Assy. upward (in the direction of the
arrow).
Figure 4-28. Removing Printhead (2)
Spur Gear 51.5
Carriage Lock
CR Unit
Head Cable Cover
Hook
Head FFC Connector
Tab
Holder Board Assy.

Epson Stylus D120 Specifications

General

Color	Yes
Print head nozzles	360
Maximum resolution	5760 x 1440 DPI
Print speed (black, normal quality, A4/US Letter)	37 ppm
Print speed (color, normal quality, A4/US Letter)	20 ppm
Total output capacity	120 sheets
Envelopes sizes	C6, DL
Custom media sizes	13 x 20 cm, 102 x 181 mm
Paper tray media types	Photo paper
Non-ISO print media sizes	Legal
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Compatible operating systems	Windows 98SE / ME / 2000 / XP / XP-x64 / Vista Mac OS 10.2.8
Interface	USB 2.0
Power requirements	AC 220-240 V
Compatible ink types, supplies	DURABrite Ultra Ink
USB 2.0 ports quantity	1
Sound power level (printing)	39 dB
Package depth	493 mm
Package width	294 mm
Package height	233 mm
Package weight	5046 g
Bundled software	Epson Creativity Suite, Epson Easy Photo Print, Epson Web-To-Page
Quantity per pack	1 pc(s)
Sustainability certificates	ENERGY STAR
Power consumption (standby)	2 W
Power consumption (printing)	15 W
Country of origin	Indonesia
Market positioning	Home & office
Pallet width	1200 mm
Pallet height	1000 mm
Pallet length (UK)	2014 mm
Quantity per pallet	48 pc(s)
Quantity per pallet (UK)	64 pc(s)
Quantity per pallet layer	6 pc(s)
Quantity per pallet layer (UK)	8 pc(s)

Weight and Dimensions

Depth	240 mm
Width	435 mm
Height	161 mm
