EPSON Stylus C110/C120/D120 Revision B
DISASSEMBLY/ASSEMBLY Disassembling Printer Mechanism 93
4.5.11 CR Motor
 Part/Unit that should be removed before removing CR Motor
Upper Housing/Lower Housing/Main Board Unit/Left Frame/Panel Unit/Front
Frame/Right Frame
 Removal Procedure
1. Turn the Spur Gear 51.5 to release the Carriage Lock, and move the CR Unit to the
center of the printer.
(Refer to 4.5.2 Printhead Step1 (p83))
2. Release the CR Motor cable from the notches (x3) of the Base Frame and the
hooks (x3) of the Main Frame, and then pull out the cable through the hole of the
Base Frame.

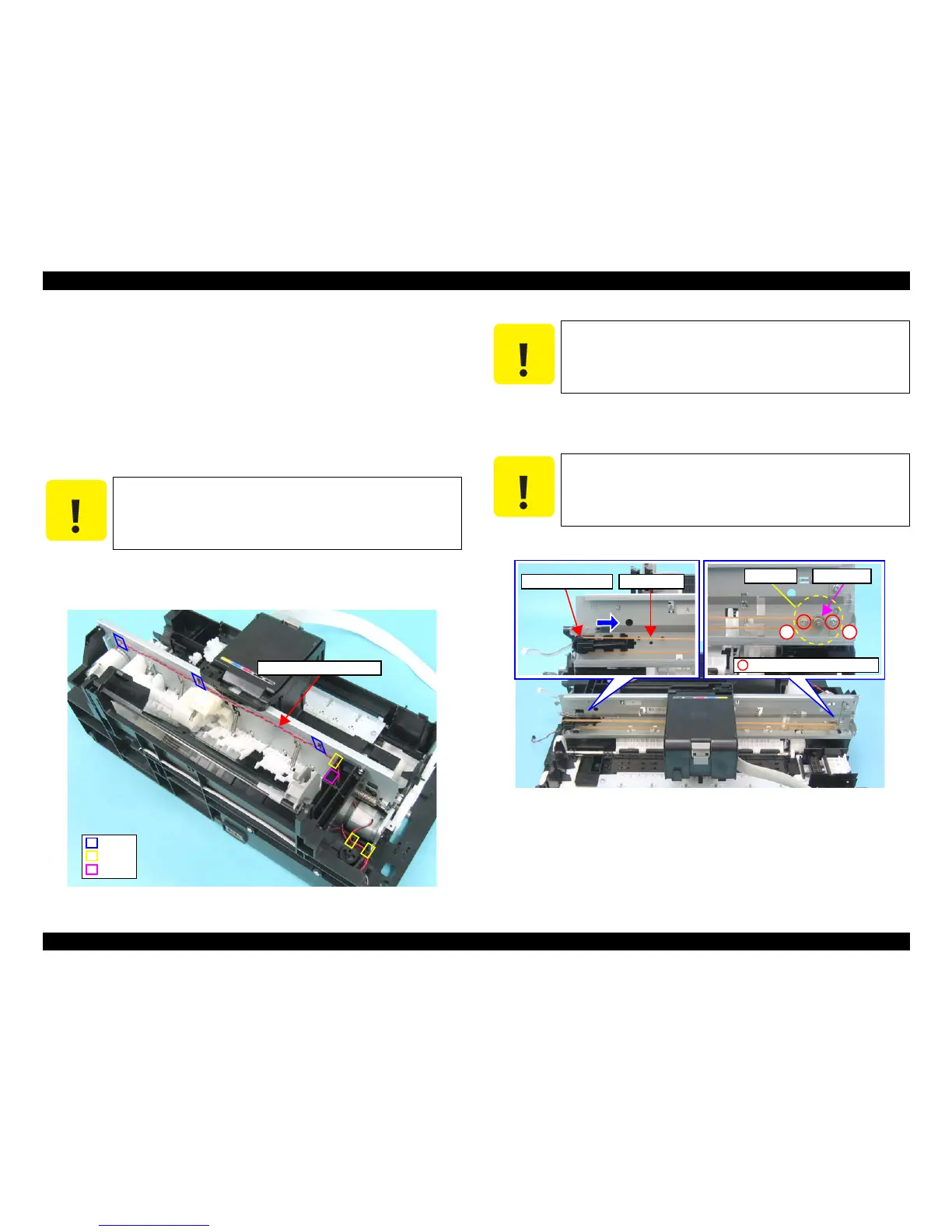

Figure 4-53. Removing CR Motor (1)
3. Loosen the tension of the Timing Belt by pressing the Driven Pulley Holder in the
direction of the arrow as shown in the figure, and release the Timing Belt from the
pinion gear of the CR Motor.
4. Remove the screws (x2) that secure the CR Motor, and remove it.
Figure 4-54. Removing CR Motor (2)
C A U T I O N
Be careful not to damage the CR Motor cable when releasing the
cable from the hooks of the Main Frame.
CR Motor Connector Cable
Notch
Hook
Hole
C A U T I O N
After releasing the Timing Belt, temporarily secure the belt to the
Cartridge Cover with a tape or the like so as not to allow the grease
to come in contact with the Timing Belt. Contaminating the belt
with grease can result in malfunction of the printer.
C A U T I O N
Do not damage the pinion gear of the CR Motor.
Timing Belt
Driven Pulley Holder
Pinion Gear
CR Motor
C.P. 3x4, F/Zn-3C (4±1kgfcm)
12

Epson Stylus D120 Specifications

General

Color	Yes
Print head nozzles	360
Maximum resolution	5760 x 1440 DPI
Print speed (black, normal quality, A4/US Letter)	37 ppm
Print speed (color, normal quality, A4/US Letter)	20 ppm
Total output capacity	120 sheets
Envelopes sizes	C6, DL
Custom media sizes	13 x 20 cm, 102 x 181 mm
Paper tray media types	Photo paper
Non-ISO print media sizes	Legal
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Compatible operating systems	Windows 98SE / ME / 2000 / XP / XP-x64 / Vista Mac OS 10.2.8
Interface	USB 2.0
Power requirements	AC 220-240 V
Compatible ink types, supplies	DURABrite Ultra Ink
USB 2.0 ports quantity	1
Sound power level (printing)	39 dB
Package depth	493 mm
Package width	294 mm
Package height	233 mm
Package weight	5046 g
Bundled software	Epson Creativity Suite, Epson Easy Photo Print, Epson Web-To-Page
Quantity per pack	1 pc(s)
Sustainability certificates	ENERGY STAR
Power consumption (standby)	2 W
Power consumption (printing)	15 W
Country of origin	Indonesia
Market positioning	Home & office
Pallet width	1200 mm
Pallet height	1000 mm
Pallet length (UK)	2014 mm
Quantity per pallet	48 pc(s)
Quantity per pallet (UK)	64 pc(s)
Quantity per pallet layer	6 pc(s)
Quantity per pallet layer (UK)	8 pc(s)

Weight and Dimensions

Depth	240 mm
Width	435 mm
Height	161 mm
