EPSON Stylus C110/C120/D120 Revision B
DISASSEMBLY/ASSEMBLY Disassembling Printer Mechanism 90
4.5.8 PF Encoder Sensor
 Part/Unit that should be removed before removing PF Encoder Sensor
Upper Housing/Lower Housing/Main Board Unit/Left Frame/Panel Unit
 Removal Procedure
1. Peel off the acetate tape (x1) from the PF Encoder Sensor.
2. Release the PF Encoder FFC from the connector (x1) of the PF Encoder Sensor.
3. Remove the screw (x1) that secures the PF Encoder Sensor, and remove it.

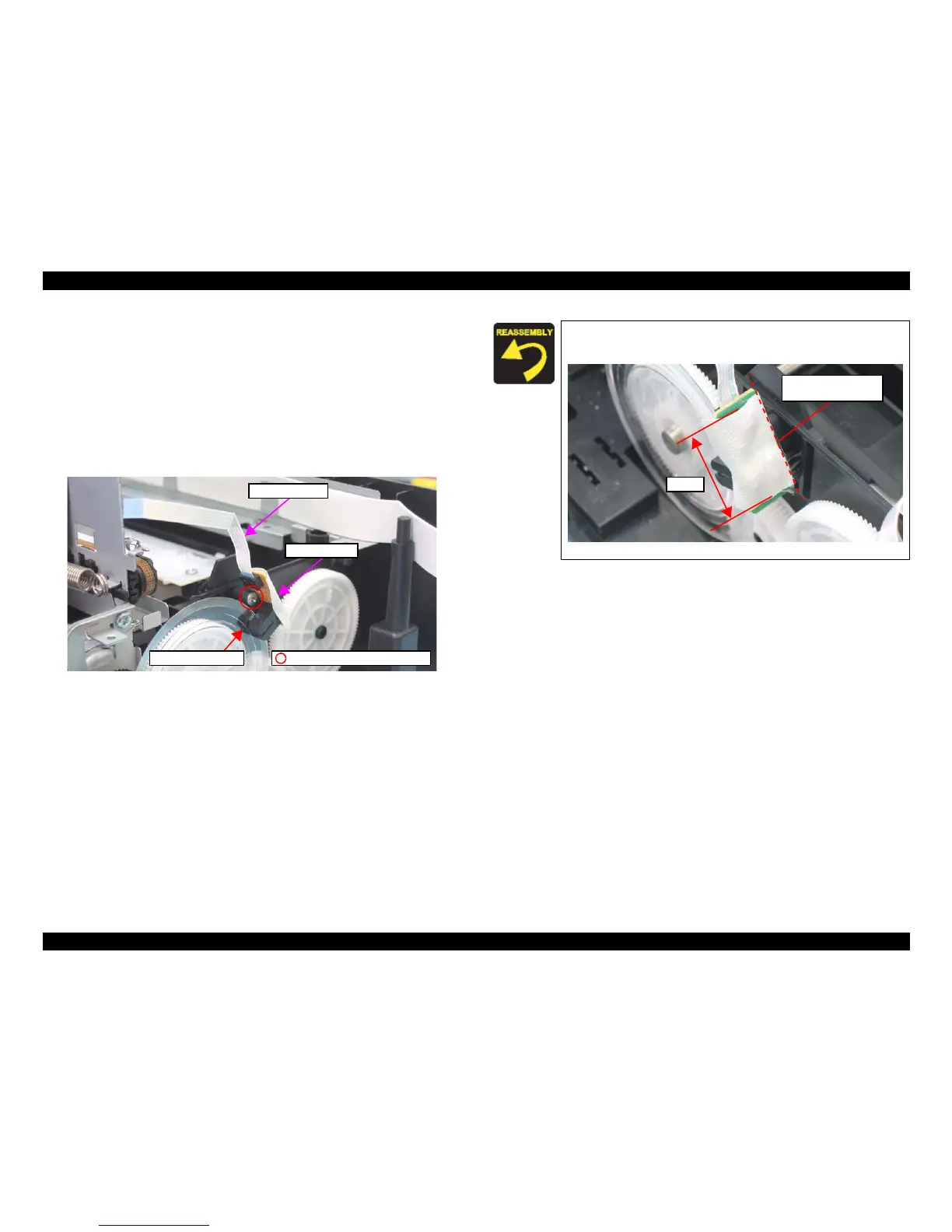

Figure 4-45. Removing PF Encoder Sensor
Acetate Tape
PF Encoder FFC
C.B.P. 2.5x8, F/Zn-3C (4±1kgfcm)
PF Encoder Sensor
When installing the PF Encoder Sensor, be sure to attach the
acetate tape (x1) referring to the figure below.
Figure 4-46. Acetate Tape Position
Align here with edge of
the PF Encoder Sensor
30mm

Epson Stylus D120 Specifications

General

Color	Yes
Print head nozzles	360
Maximum resolution	5760 x 1440 DPI
Print speed (black, normal quality, A4/US Letter)	37 ppm
Print speed (color, normal quality, A4/US Letter)	20 ppm
Total output capacity	120 sheets
Envelopes sizes	C6, DL
Custom media sizes	13 x 20 cm, 102 x 181 mm
Paper tray media types	Photo paper
Non-ISO print media sizes	Legal
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Compatible operating systems	Windows 98SE / ME / 2000 / XP / XP-x64 / Vista Mac OS 10.2.8
Interface	USB 2.0
Power requirements	AC 220-240 V
Compatible ink types, supplies	DURABrite Ultra Ink
USB 2.0 ports quantity	1
Sound power level (printing)	39 dB
Package depth	493 mm
Package width	294 mm
Package height	233 mm
Package weight	5046 g
Bundled software	Epson Creativity Suite, Epson Easy Photo Print, Epson Web-To-Page
Quantity per pack	1 pc(s)
Sustainability certificates	ENERGY STAR
Power consumption (standby)	2 W
Power consumption (printing)	15 W
Country of origin	Indonesia
Market positioning	Home & office
Pallet width	1200 mm
Pallet height	1000 mm
Pallet length (UK)	2014 mm
Quantity per pallet	48 pc(s)
Quantity per pallet (UK)	64 pc(s)
Quantity per pallet layer	6 pc(s)
Quantity per pallet layer (UK)	8 pc(s)

Weight and Dimensions

Depth	240 mm
Width	435 mm
Height	161 mm
