EPSON Stylus C110/C120/D120 Revision B
MAINTENANCE Overview 121

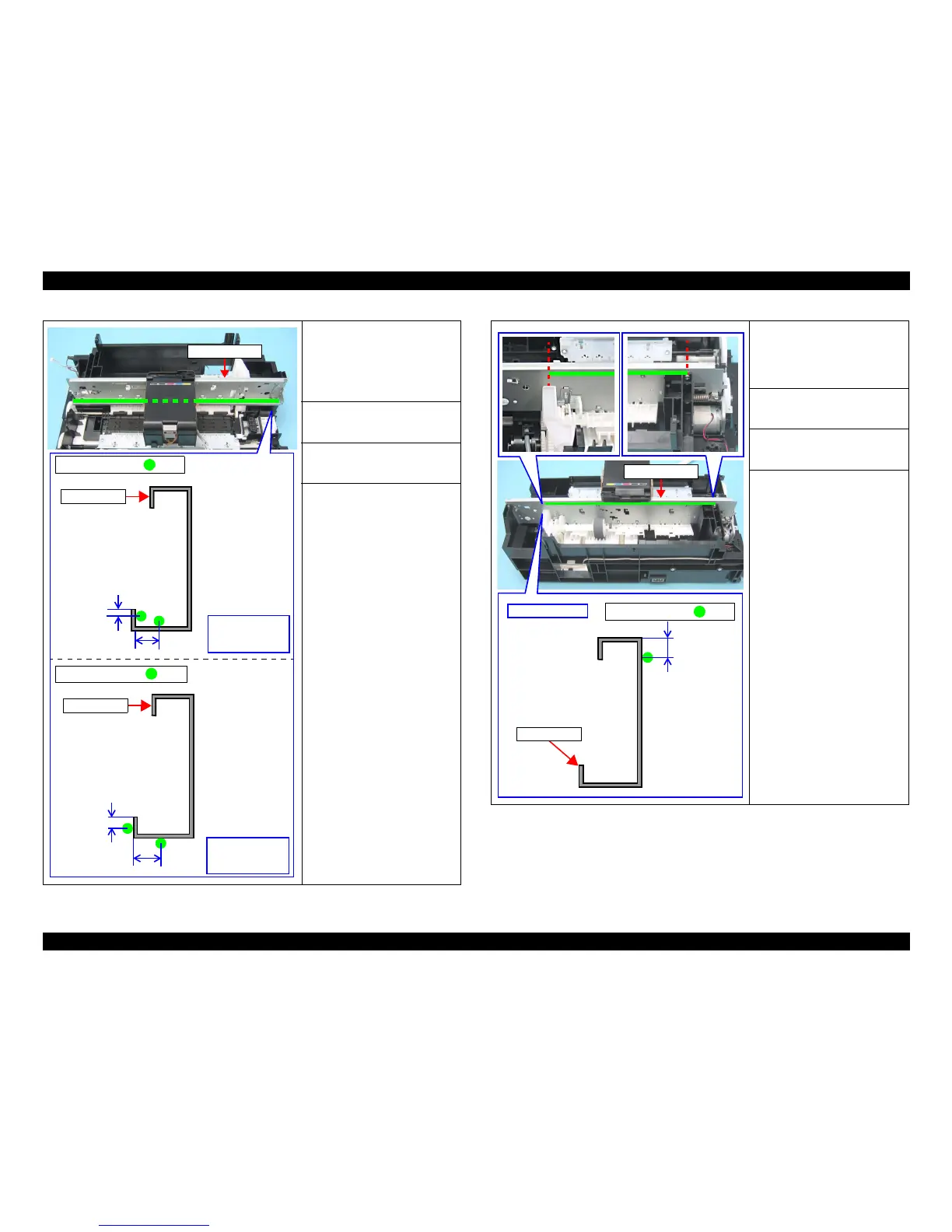

Figure 6-7. Lubrication on Main Frame (1)
Figure 6-8. Lubrication on Main Frame (2)
<Lubrication Point>
Along the contact areas between
the front of the Main Frame
and the CR Unit.
(x 4: Point A - Point D)
<Lubrication Type>
G-71
<Lubrication Amount>
φ 2 mm x 380 mm (x 4)
<Remarks>
 Use an injector to apply G-71.
 Clean the lubrication points
with a cloth beforehand.
Main Frame
Right Side View
(Inner surface of
the Main Frame)
Lubrication Point ( : x 2)
Main Frame
7 mm
2.8 mm
A
B
Right Side View
(Outer surface of
the Main Frame)
Lubrication Point ( : x 2)
3.5 mm
3.3 mm
C
D
Main Frame
<Lubrication Point>
Along the contact area between
the back of the Main Frame and
the CR Unit.
<Lubrication Type>
G-71
<Lubrication Amount>
φ 2 mm x 275 mm
<Remarks>
 Use an injector to apply G-71.
 Clean the lubrication point with
a cloth beforehand.
Right Side View
3.4 mm
Lubrication Point ( : x 1)
Main Frame
Main Frame
