EPSON Stylus C110/C120/D120 Revision B
OPERATING PRINCIPLE Printer Mechanism Operating Principles 27
2.2.3.1 Paper Loading Mechanism (ASF Unit)
The paper loading mechanism loads paper from the ASF unit and feeds paper to the PF
roller. The ASF unit includes the hopper, change lever, LD roller shaft, and clutch
mechanism.
The change lever and the clutch mechanism play an important role in the paper loading
operation as described below.
1. ASF home position detection function
The change lever and the clutch mechanism are used to detect the ASF home
position.
The counterclockwise rotation of the PF motor brings the change lever to engage
with the clutch mechanism. The ASF home position is detected by the engagement
of the change lever at the beginning of the paper loading operation. At this time,
paper is not fed to the PF roller because the PF motor drive force is not yet
transmitted to the LD roller shaft.
2. Paper loading function
When the change lever is disengaged from the clutch mechanism by the
counterclockwise rotation of the PF motor pinion gear, the printer changes to the
paper loading state from the ASF home position detection state. The PF motor
drive force is transmitted to the LD roller, and paper is fed from the ASF unit.
The rotation of the two cams on the LD roller feeds paper into the printer.
 Larger cam: moves the hopper
 Smaller cam:moves the paper back lever
When the first sheet of paper has been fed, the second sheet is returned to the standby
position by the hopper and the paper back lever, which are moved by the cams.
The following sections explain the paper loading sequence and operations of each
components.
STEP1: ASF HOME POSITION
The counterclockwise rotation of the PF motor pinion gear (as seen from the left of the
printer) causes the change lever to push down on the clutch lever, and the clutch lock
tab is disengaged from the clutch gear as shown in
Figure 2-8. This cuts the PF motor
drive transmission to the LD roller shaft, and the shaft does not move at all. At the
same time, the hopper is pushed down by the two cams on the LD roller shaft, and the
paper back lever is set at the position to prevent paper from being fed. The “ASF home
position” indicates all of the above statuses.

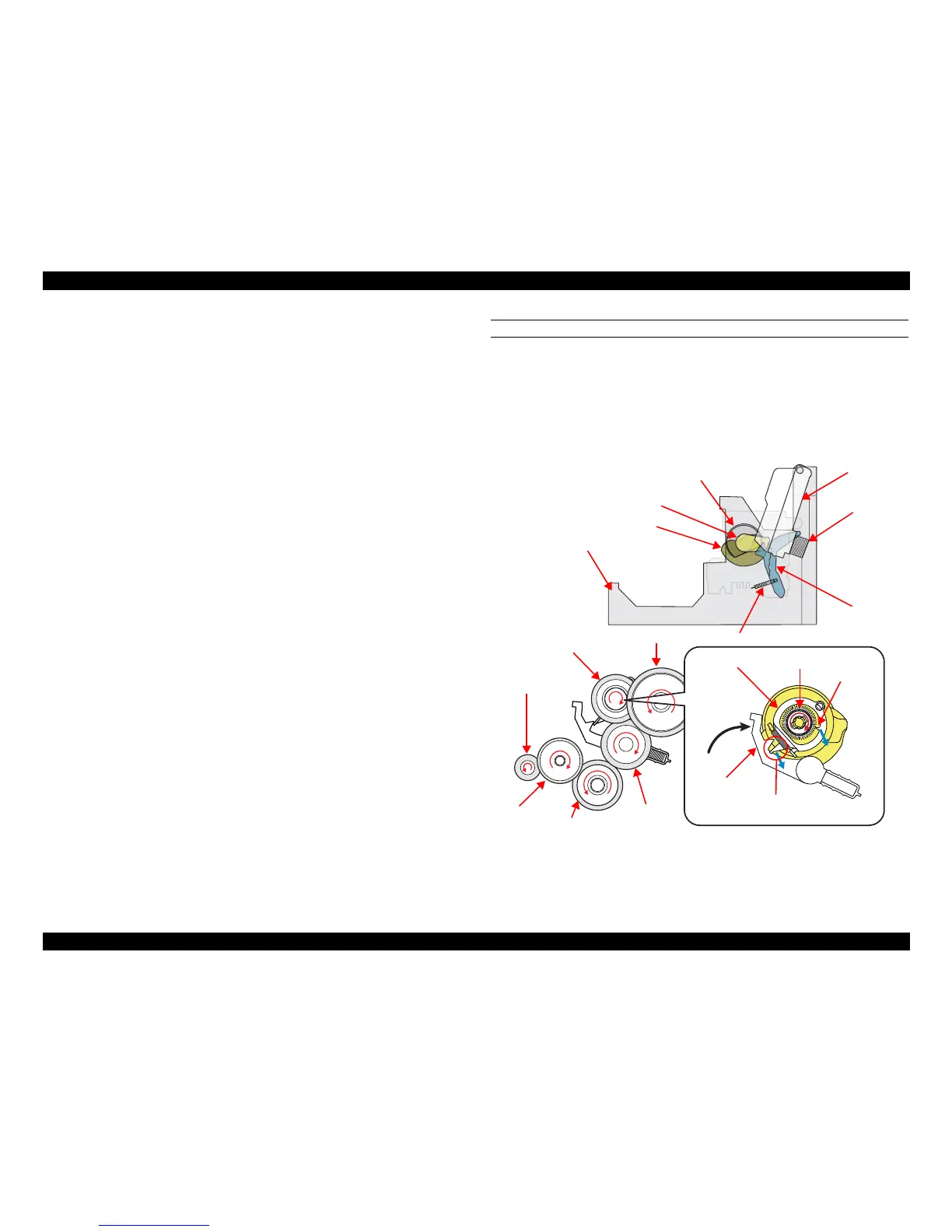

Figure 2-8. ASF Home Position
Compression
Spring
Paper Back Lever
Hopper
LD Roller
Hopper Release Cam
Paper Back Lever Cam
Extension Spring
Clutch
Clutch Gear
Clutch Lever
Clutch Lock
Tab
Change Lever
Spur Gear C
(PF Roller)
Base Frame
Combination
Gear A
Combination
Gear B
(Pump Unit)
Combination
Gear C
(Change Lever)
Combination Gear D
Combination Gear E
(LD Roller/Clutch)

Epson Stylus D120 Specifications

General

Color	Yes
Print head nozzles	360
Maximum resolution	5760 x 1440 DPI
Print speed (black, normal quality, A4/US Letter)	37 ppm
Print speed (color, normal quality, A4/US Letter)	20 ppm
Total output capacity	120 sheets
Envelopes sizes	C6, DL
Custom media sizes	13 x 20 cm, 102 x 181 mm
Paper tray media types	Photo paper
Non-ISO print media sizes	Legal
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Compatible operating systems	Windows 98SE / ME / 2000 / XP / XP-x64 / Vista Mac OS 10.2.8
Interface	USB 2.0
Power requirements	AC 220-240 V
Compatible ink types, supplies	DURABrite Ultra Ink
USB 2.0 ports quantity	1
Sound power level (printing)	39 dB
Package depth	493 mm
Package width	294 mm
Package height	233 mm
Package weight	5046 g
Bundled software	Epson Creativity Suite, Epson Easy Photo Print, Epson Web-To-Page
Quantity per pack	1 pc(s)
Sustainability certificates	ENERGY STAR
Power consumption (standby)	2 W
Power consumption (printing)	15 W
Country of origin	Indonesia
Market positioning	Home & office
Pallet width	1200 mm
Pallet height	1000 mm
Pallet length (UK)	2014 mm
Quantity per pallet	48 pc(s)
Quantity per pallet (UK)	64 pc(s)
Quantity per pallet layer	6 pc(s)
Quantity per pallet layer (UK)	8 pc(s)

Weight and Dimensions

Depth	240 mm
Width	435 mm
Height	161 mm
