Epson Stylus Photo R3000 Service Manual

Confidential
Disassembly/Reassembly Disassembly/Reassembly Procedures 12
Epson Stylus Photo R3000 Revision A
1.2 Disassembly/Reassembly Procedures
This section describes procedures for disassembling the parts/units in a flowchart format. For some parts/units,
detailed procedures or precautions are provided (accordingly indicated by icons and cell’s color). Refer to the
explanations in the example chart below and perform an appropriate disassembling and assembling procedure.
(See “1.3 Detailed Disassembly/Reassembly Procedure for each Part/Unit (p19)”.)
For routing cables, see “1.4 Routing FFCs/cables (p29)”.

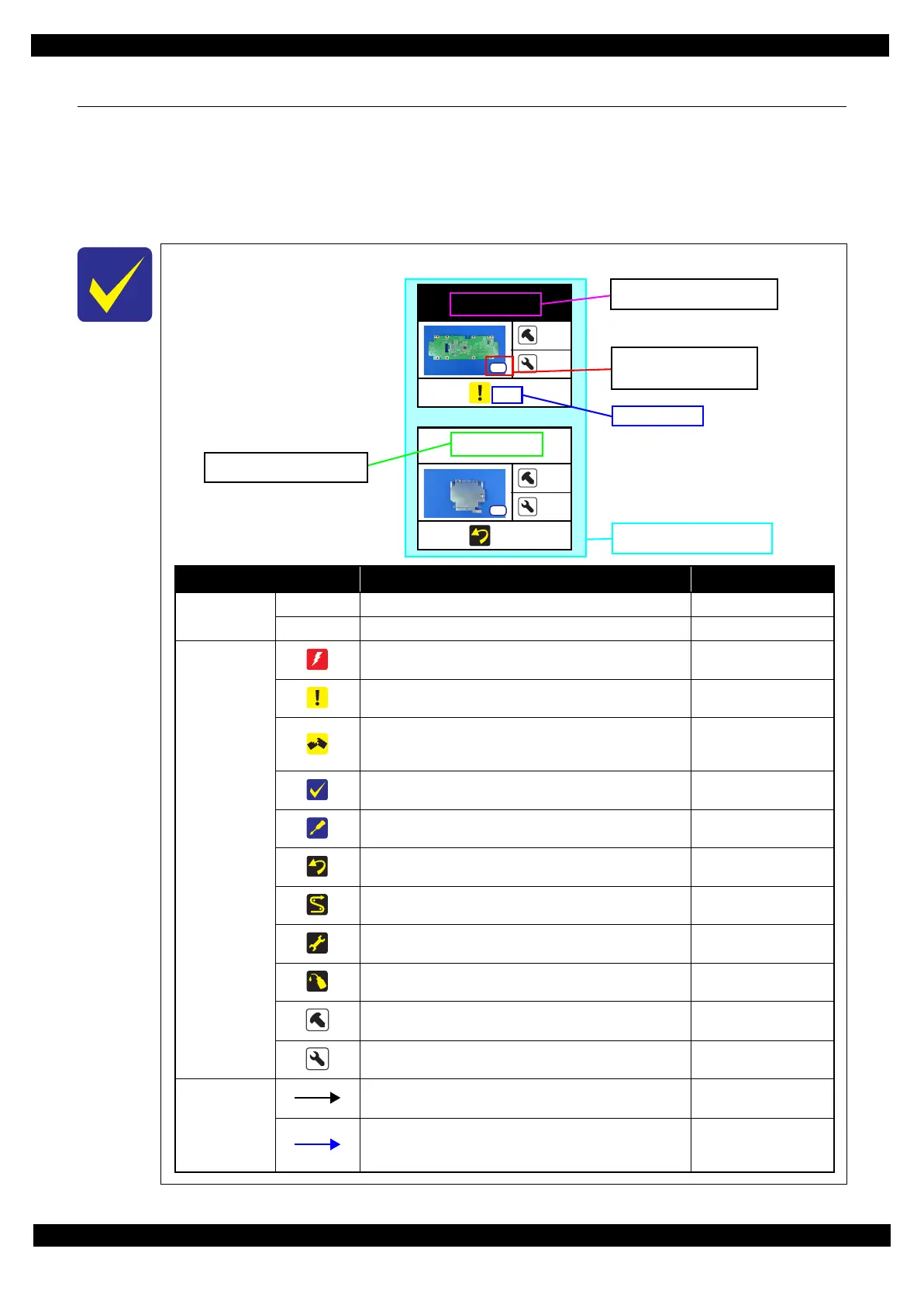

The example below shows how to see the charts on the following pages.
LCD Shield
2
2
(p 15)
S4
Panel Board
2
4
(p 15)
S12
Item Description Reference
Parts/unit name
White-letter
Part/unit supplied as an ASP ---
Black-letter
Part/unit not supplied as an ASP ---
Icon
Indicates a practice or condition that could result in injury or
loss of life if not strictly observed.
Indicates the reference
page in blue-letter
Indicates a practice or condition that could result in damage to,
or destruction of equipment if not strictly observed.
Indicates the reference
page in blue-letter
Indicates the parts that are inevitably broken in the
disassembling procedure, and should be replaced with a new
one for reassembly.
---
Indicates necessary check items in the disassembling/
assembling procedure.
Indicates the reference
page in blue-letter
Indicates supplementary explanation for disassembly is given.
Indicates the reference
page in blue-letter
Indicates particular tasks to keep quality of the units are
required.
Indicates the reference
page in blue-letter
Indicates particular routing of cables is required.
Indicates the reference
page in blue-letter
Indicates particular adjustment(s) is/are required.
Chapter 2 “ Adjustment
(p32)”
Indicates lubrication is required.
Chapter 3 “ Maintenance
(p64)”
Indicates the number of screws securing the parts/units. ---
Indicates the points secured with other than a screw such as a
hook, rib, dowel or the like
---
Arrowed line
Indicates a disassembling procedure. ---
Indicates a removal procedure for a component of a part or
unit which is necessary to remove when proceeding to the
target part.
---
Shows removal/installation
as a unit/assy. is available.
Reference page
Black letters indicate a part/
unit not supplied as an ASP.
Shows the screw types and
the specified torque in the
“Screw type/torque list”.
White letters indicate a part/
unit supplied as an ASP.

Epson Stylus Photo R3000 Specifications

General

Color	Yes
Maximum resolution	5760 x 1440 DPI
Print speed (black, normal quality, A4/US Letter)	- ppm
Interface	USB 2.0
Print technology	Inkjet
Dimensions (WxDxH)	614.7 x 368.3 x 228.6 mm
Networking features	100Base-TX Ethernet
Paper tray media types	Photo paper, Plain paper
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A3
Compatible operating systems	Windows 7 (32-bit, 64-bit), Windows Vista (32-bit, 64-bit), Windows XP, Windows XP Professional x64 Mac OS X 10.5.x – 10.6.x
Optional connectivity	Ethernet, Wireless LAN
USB 2.0 ports quantity	1
Sustainability certificates	ENERGY STAR
Power consumption (standby)	3.5 W
Power consumption (printing)	21 W
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 85 %
Operating relative humidity (H-H)	20 - 80 %
Sound power level (printing)	38 dB
Country of origin	China
Market positioning	Home & office
Pallet width	800 mm
Pallet height	2150 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	10 pc(s)
Quantity per pallet layer	2 pc(s)
Package depth	750 mm
Package width	490 mm
Package height	400 mm
Package weight	19420 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	368.3 mm
Width	614.7 mm
Height	228.6 mm
