Epson Stylus Photo R3000 Service Manual

EPSON Stylus Photo R3000 Revision A
Confidential
Maintenance Lubrication Points and Instructions 66

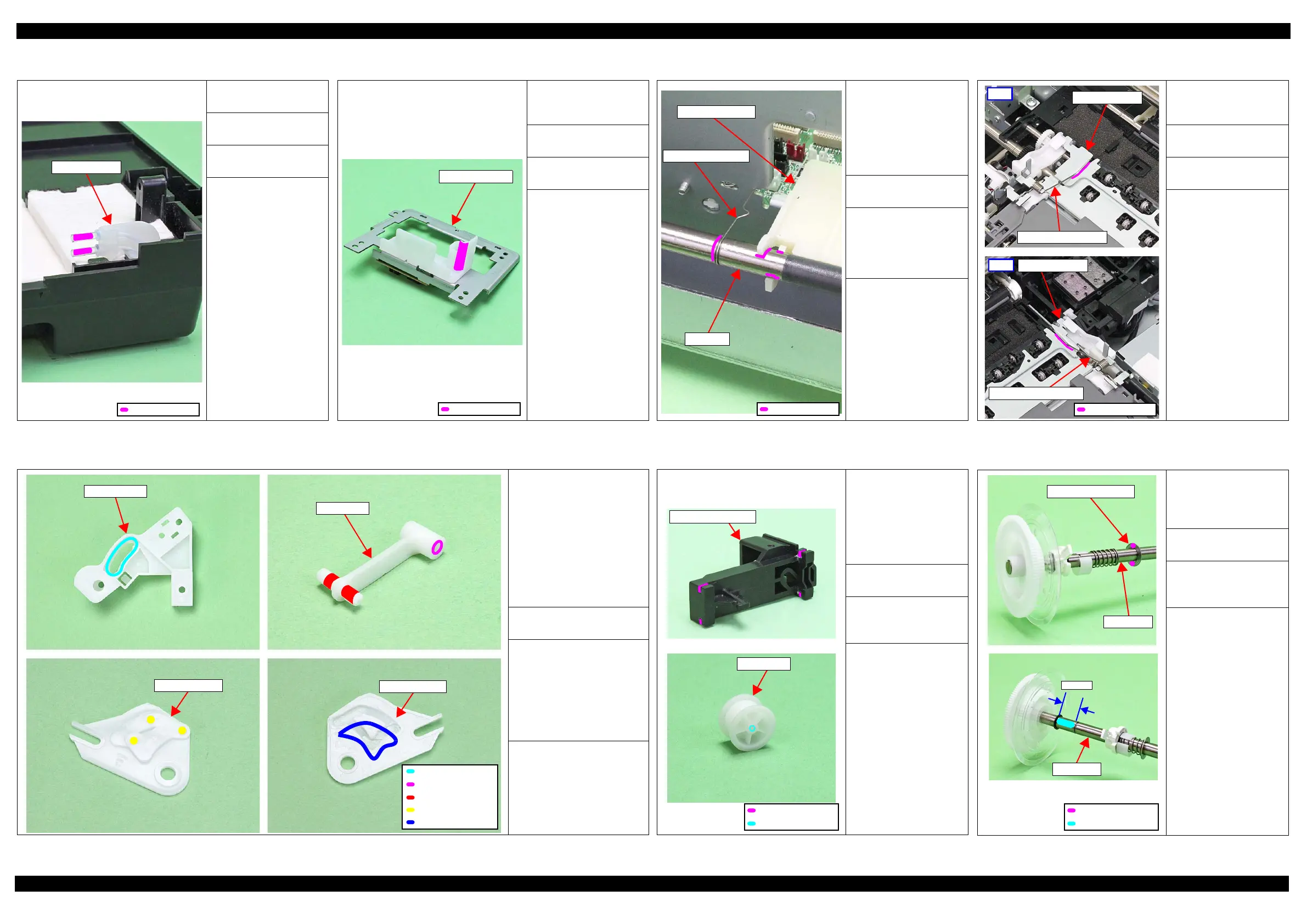

3.2 Lubrication Points and Instructions
Figure 3-1. Waste Ink Tube Figure 3-2. CR Support Plate
<Lubrication Point>
Waste Ink Tube (x2)
<Type>
CR06
<Application Amount>
Adequate amount
<Remarks>
Apply with Flux Dispenser.
Application Point
Waste Ink Tube
<Lubrication Point>
Contact point of the Ink
Tube
<Type>
G-74
<Application Amount>
Adequate amount
<Remarks>
Apply with Flux Dispenser.
Application Point
CR Support Plate
Figure 3-3. Rear Paper Guide / PF Grounding Spring Figure 3-4. Star Wheel Assy
<Lubrication Point>
1. Rear Paper Guide
(Contact points of the PF
Roller)
2. PF Grounding Spring
(Contact points of the PF
Roller)
<Type>
G-45
<Application Amount>
1.  1 mm x adequate
amount
2.  1 mm x half of the
circumference
<Remarks>
Apply with injector.
Application Point
PF Grounding Spring
Rear Paper Guide
PF Roller
<Lubrication Point>
Contact points of the
Torsion Spring, 47.45 (x2)
<Type>
G-26
<Application Amount>
 2 mm x 3 mm
<Remarks>
 Spread it with brush after
application with injector.
Application Point
Right
Star Wheel Assy
Torsion Spring, 47.45
Left
Star Wheel Assy
Torsion Spring, 47.45
Figure 3-5. Stopper Tray Unit
<Lubrication Point>
1. Stopper Tray
(Contact point of the
Compression Spring Cover)
2. Bearing of the Lever Link
3. Shaft of the Lever Link
4. Cam Front Tray
(Protrusion x3)
5. Cam Front Tray (Contact
point of the Lever Link)
<Type>
G-26
<Application Amount>
1.  2 mm x adequate amount
2.  2 mm x 3 mm
3.  2 mm x half of the
circumference
4.  1 mm x 2 mm
5.  1 mm x adequate amount
<Remarks>
 1. 4. 5.
Apply with injector.
 2. 3.
Spread it with brush after
application with injector.
Lever Link
2. Application Point
1. Application Point
3. Application Point
4. Application Point
5. Application Point
Cam Front Tray
Stopper Tray
Cam Front Tray
Figure 3-6. Driven Pulley
Figure 3-7. PF Roller
<Lubrication Point>
1. Contact points (x4)
between the Driven
Pulley Holder and the
Frame
2. Shaft hole of the Driven
Pulley (x1 each)
<Type>
G-26
<Application Amount>
1.  1 mm x 2 mm
2.  1 mm x 1 mm (5 mg)
<Remarks>
Apply with injector.
Driven Pulley Holder
Driven Pulley
2. Application Point
1. Application Point
<Lubrication Point>
1. Washer, 8.2X0.5X14
(x2)
2. Shaft of the PF Roller
<Type>
G-45
<Application Amount>
1.  2 mm x 1 mm
2.  1 mm x 10 mm
<Remarks>
 1. Apply with injector.
 2. Spread it with brush
while rotating the PF
Roller after application
with injector.
2. Application Point
1. Application Point
Washer, 8.2X0.5X14
PF Roller
10 mm
PF Roller

Epson Stylus Photo R3000 Specifications

General

Color	Yes
Maximum resolution	5760 x 1440 DPI
Print speed (black, normal quality, A4/US Letter)	- ppm
Interface	USB 2.0
Print technology	Inkjet
Dimensions (WxDxH)	614.7 x 368.3 x 228.6 mm
Networking features	100Base-TX Ethernet
Paper tray media types	Photo paper, Plain paper
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A3
Compatible operating systems	Windows 7 (32-bit, 64-bit), Windows Vista (32-bit, 64-bit), Windows XP, Windows XP Professional x64 Mac OS X 10.5.x – 10.6.x
Optional connectivity	Ethernet, Wireless LAN
USB 2.0 ports quantity	1
Sustainability certificates	ENERGY STAR
Power consumption (standby)	3.5 W
Power consumption (printing)	21 W
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 85 %
Operating relative humidity (H-H)	20 - 80 %
Sound power level (printing)	38 dB
Country of origin	China
Market positioning	Home & office
Pallet width	800 mm
Pallet height	2150 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	10 pc(s)
Quantity per pallet layer	2 pc(s)
Package depth	750 mm
Package width	490 mm
Package height	400 mm
Package weight	19420 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	368.3 mm
Width	614.7 mm
Height	228.6 mm
