Epson Stylus Photo R3000 Service Manual

Epson Stylus Photo R3000 Revision A
Confidential
Disassembly/Reassembly Disassembly/Reassembly Flowchart 15
1.2.2 Disassembly/Reassembly Flowchart
1.2.2.1 Housing Part

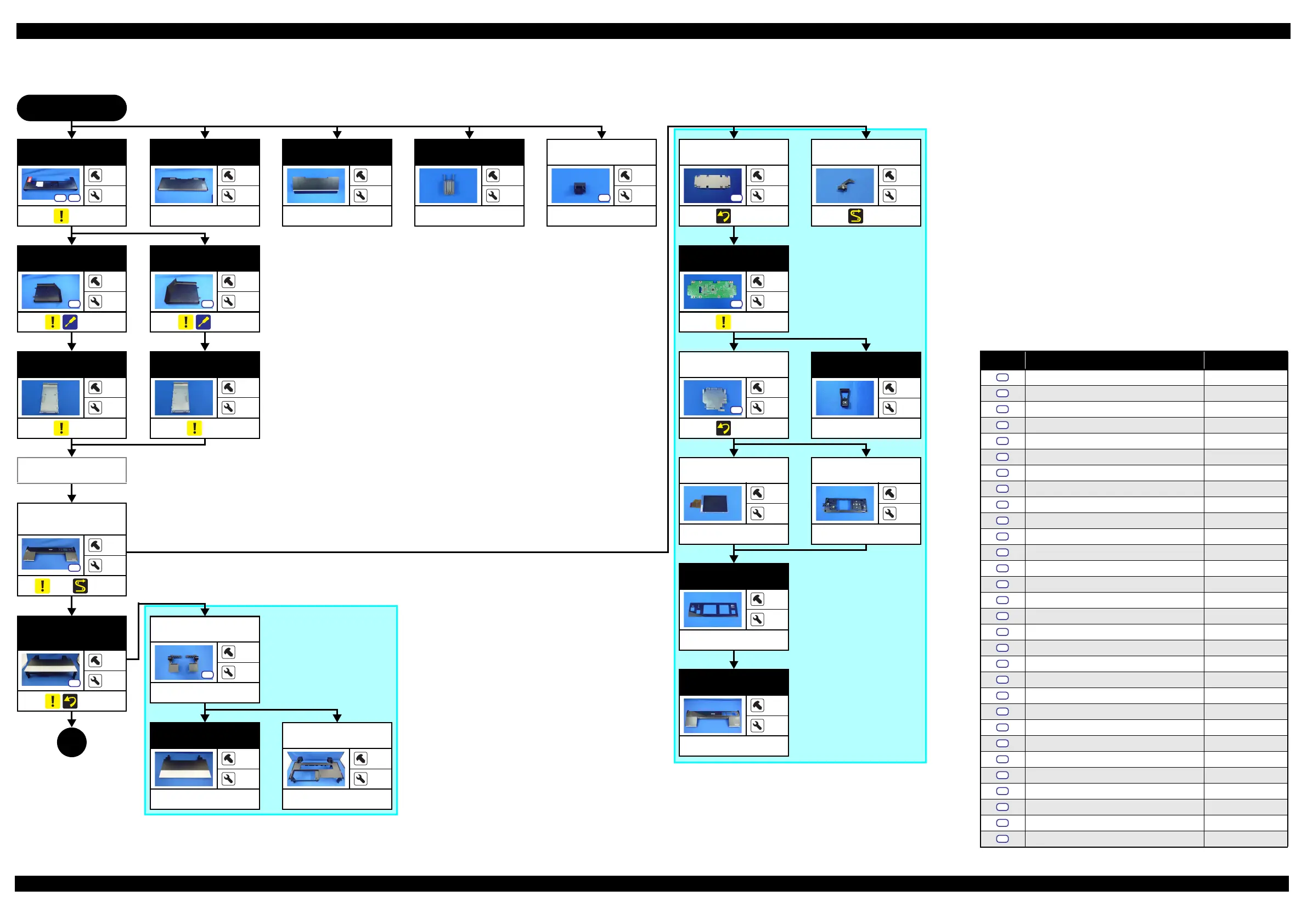

Flowchart 1-1. Disassembly Flowchart of Housing Part
START
Adjust Printer
Cover
1
---
---
S5
Cover Open
Sensor
---
2
(p 29)
1
(p 16)
Paper Support
Assy
---
4
---
Stacker Cover
---
2
---
CSIC Terminal
---
2
---
Rear Housing
3
12
(p 19)
S9 S20
Left Cover
1
4
(p 19)
S5
Right Cover
1
4
(p 19)
S5
Left
Decoration Plate
---
3
(p 19)
Adjust Printer
Cover
Panel Shield
Plate
10
2
(p 20)
S12
Panel Board
2
4
(p 20)
S12
LCD Mounting
Plate
2
2
(p 20)
S4
LCD
---
---
---
Panel Buttons
(w/OK Button)
---
4
---
Upper Housing
Support Assy
---
---
---
Panel Cover
---
---
---
Upper Printer
Cover
---
---
---
Upper Printer
Cover Holder
4
10
---
S12
Upper Housing
---
---
---
Upper Housing
Assy (w/Upper
Printer Cover)
4
---
(p 19)
S13
Upper Housing
Support Assy
(w/Panel Unit)
4
14
(p 19) (p 29)
S6
Right
Decoration Plate
---
3
(p 19)
Screw type/torque list
Symbol Screw type Torque
C.B.P-TITE SCREW,2.5X8,F/ZN-3C 2.5 0.5 kgf·cm
C.B.P-TITE SCREW,2.5X8,F/ZN-3C 3.5 0.5 kgf·cm
C.B.P-TITE SCREW,2X6,F/ZN-3C 2.0
 0.5 kgf·cm
C.B.P-TITE SCREW,2X6,F/ZN-3C 3.0 1.0 kgf·cm
C.B.P-TITE SCREW,3X10,F/ZB-3C 6.0
 1.0 kgf·cm
C.B.P-TITE SCREW,3X10,F/ZN-3C 6.0 1.0 kgf·cm
C.B.P-TITE SCREW,3X18,F/ZN-3C 6.0
 1.0 kgf·cm
C.B.P-TITE SCREW,3X6,F/ZN-3C 4.0 0.5 kgf·cm
C.B.P-TITE SCREW,3X8,F/ZB-3C 6.0
 1.0 kgf·cm
C.B.P-TITE SCREW,3X8,F/ZN-3C 4.0 0.5 kgf·cm
C.B.P-TITE SCREW,3X8,F/ZN-3C 5.0
 1.0 kgf·cm
C.B.P-TITE SCREW,3X8,F/ZN-3C 6.0 1.0 kgf·cm
C.B.P-TITE SCREW,4X8,F/ZN-3C 8.0
 1.0 kgf·cm
C.B.SCREW,2.5X14,F/ZN-3C 3.0 1.0 kgf·cm
C.B.SCREW,2.5X6,F/ZN-3C 3.5
 0.5 kgf·cm
C.B.SCREW,3X4,F/ZN-3C 4.0 0.5 kgf·cm
C.B.SCREW,3X6,F/ZN-3C 8.0
 1.0 kgf·cm
C.B.S-TITE SCREW,2.5X6,F/ZN-3C 4.0 0.5 kgf·cm
C.B.S-TITE SCREW,3X4,F/ZN-3C 8.0
 1.0 kgf·cm
C.B.S-TITE SCREW,3X6,F/ZN-3C 6.0 1.0 kgf·cm
C.B.S-TITE SCREW,3X6,F/ZN-3C 8.0
 1.0 kgf·cm
C.B.S-TITE SCREW,3X8,F/ZN-3C 8.0 1.0 kgf·cm
C.B.S-TITE(P2)SCREW,3X10,F/ZN-3C 6.0
 1.0 kgf·cm
C.B.S-TITE(P4)SCREW,3X6,F/ZN-3C 8.0 1.0 kgf·cm
C.B.S-TITE(P4)SCREW,3X8,F/ZN-3C 5.0
 1.0 kgf·cm
C.B.S-TITE(P4)SCREW,3X8,F/ZN-3C 8.0 1.0 kgf·cm
C.C.SCREW,3X4,F/ZN-3C 4.0
 0.5 kgf·cm
C.P.SCREW,2.6X3,F/ZN-3C 3.0 0.5 kgf·cm
C.P.SCREW,3X10,F/ZN-3C 6.0
 1.0 kgf·cm
C.P.SCREW,3X4,F/ZN-3C 6.0 1.0 kgf·cm
S1
S2
S3
S4
S5
S6
S7
S8
S9
S10
S11
S12
S13
S14
S15
S16
S17
S18
S19
S20
S21
S22
S23
S24
S25
S26
S27
S28
S29
S30
OK Button
---
2
---

Epson Stylus Photo R3000 Specifications

General

Color	Yes
Maximum resolution	5760 x 1440 DPI
Print speed (black, normal quality, A4/US Letter)	- ppm
Interface	USB 2.0
Print technology	Inkjet
Dimensions (WxDxH)	614.7 x 368.3 x 228.6 mm
Networking features	100Base-TX Ethernet
Paper tray media types	Photo paper, Plain paper
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A3
Compatible operating systems	Windows 7 (32-bit, 64-bit), Windows Vista (32-bit, 64-bit), Windows XP, Windows XP Professional x64 Mac OS X 10.5.x – 10.6.x
Optional connectivity	Ethernet, Wireless LAN
USB 2.0 ports quantity	1
Sustainability certificates	ENERGY STAR
Power consumption (standby)	3.5 W
Power consumption (printing)	21 W
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 85 %
Operating relative humidity (H-H)	20 - 80 %
Sound power level (printing)	38 dB
Country of origin	China
Market positioning	Home & office
Pallet width	800 mm
Pallet height	2150 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	10 pc(s)
Quantity per pallet layer	2 pc(s)
Package depth	750 mm
Package width	490 mm
Package height	400 mm
Package weight	19420 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	368.3 mm
Width	614.7 mm
Height	228.6 mm
