 Supplement: Regarding remaining ink amount
When the Ink Counter detects ink out, a certain amount (safety margin) of ink is still remaining in the
cartridge to prevent the printhead from damages caused by printing without ink. This safety margin is
important especially for a printer that discharges larger amount of ink.

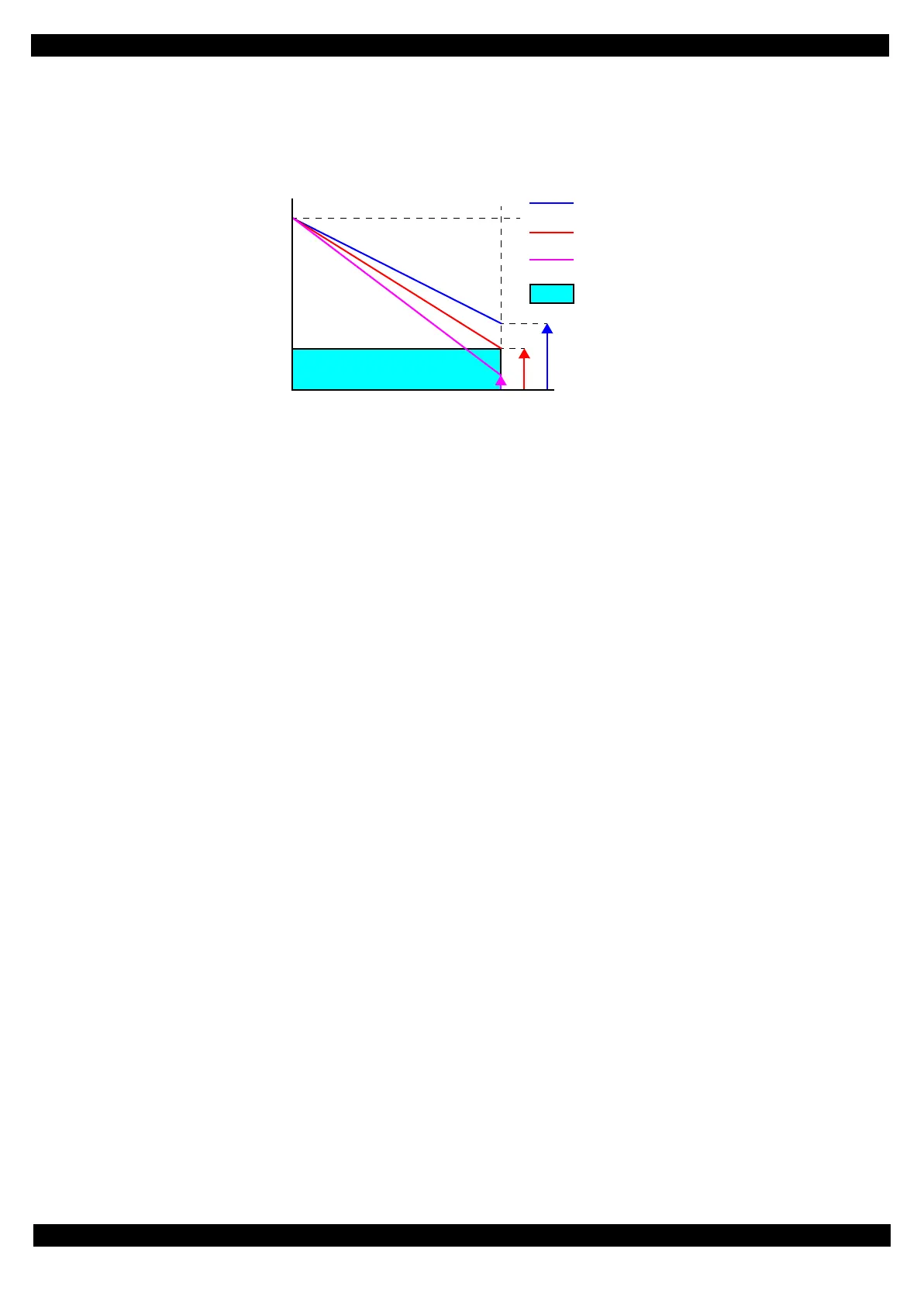

The figure below illustrates the concept of this safety margin.
Figure 2-25. Concept of Remaining Ink Amount
100%
100%
Actual ink amount
Ink counter amount
Printer A
Ink discharge amount is low
Printer B
Ink discharge amount is standard
Printer C
Ink discharge amount is high
Margin amount of ink
Remaining amount of ink when the
counter shows ink out.
