Epson T3 Series User Manual

1. Safety
14 Safety and Installation (T, VT / EPSON RC+ 7.0) Rev.15

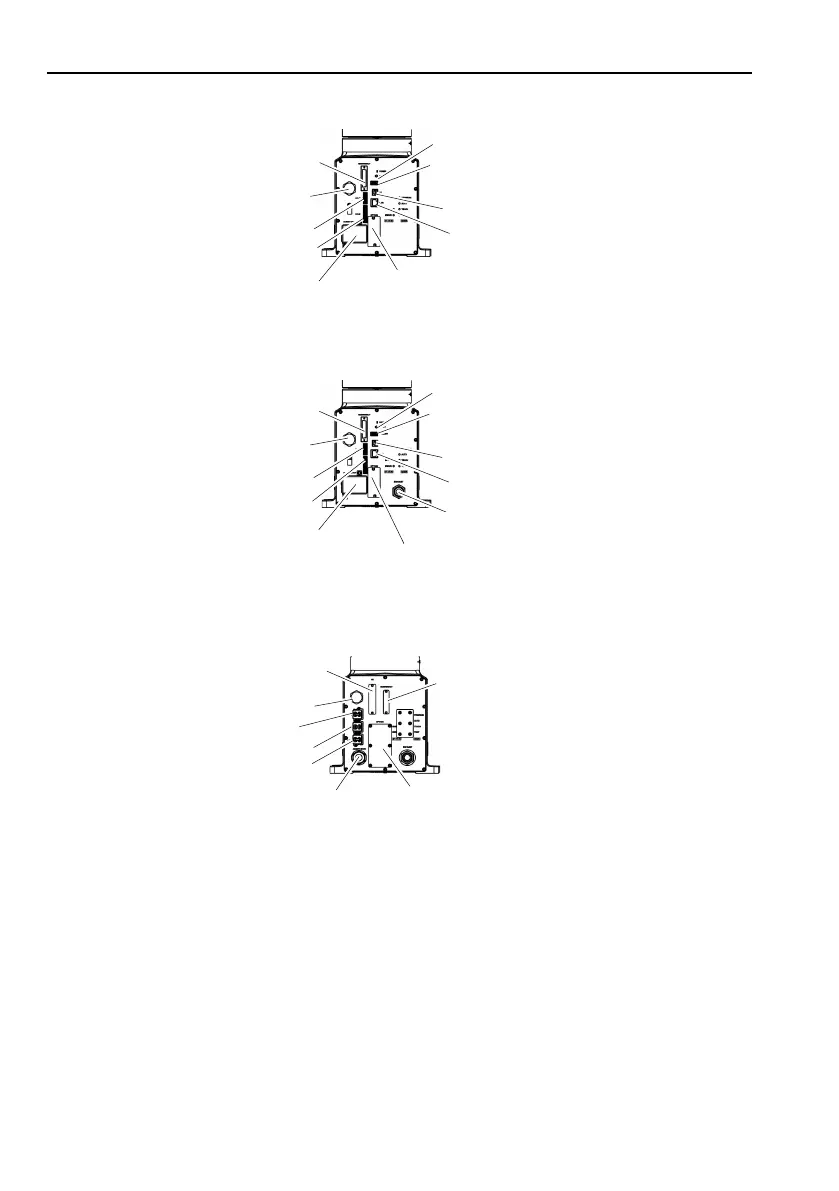

Standard model
TP Port
EMERGENCY Connector
Power Supply Cover
(Power connector inside)
I/O (Input) Connector
I/O (Output) Connector
LAN (Ethernet) Connector
Port of PC for development
RESET switch
MEMORY Port
OPTION Cover
(OPTION connector inside)
Cleanroom model
TP Port
EMERGENCY Connector
Power Supply Cover
(Power connector inside)
I/O (Input)
Connector
I/O (Output) Connector
LAN (Ethernet) Connector
Port of PC for development
RESET switch
MEMORY Port
OPTION Cover
(OPTION connector inside)
Exhaust port
(Fitting for ø12 mm pneumatic tube)
Protection model
TP Port
EMERGENCY Connector
Power Supply Cover
I/O Connector
LAN (Ethernet) Connector
Port of PC for development
MEMORY Port
OPTION Cover
(OPTION connector inside)

Epson T3 Series Specifications

General

Payload	3 kg
Number of Axes	4
Programming Language	EPSON RC+
Type	SCARA
Reach	400 mm
