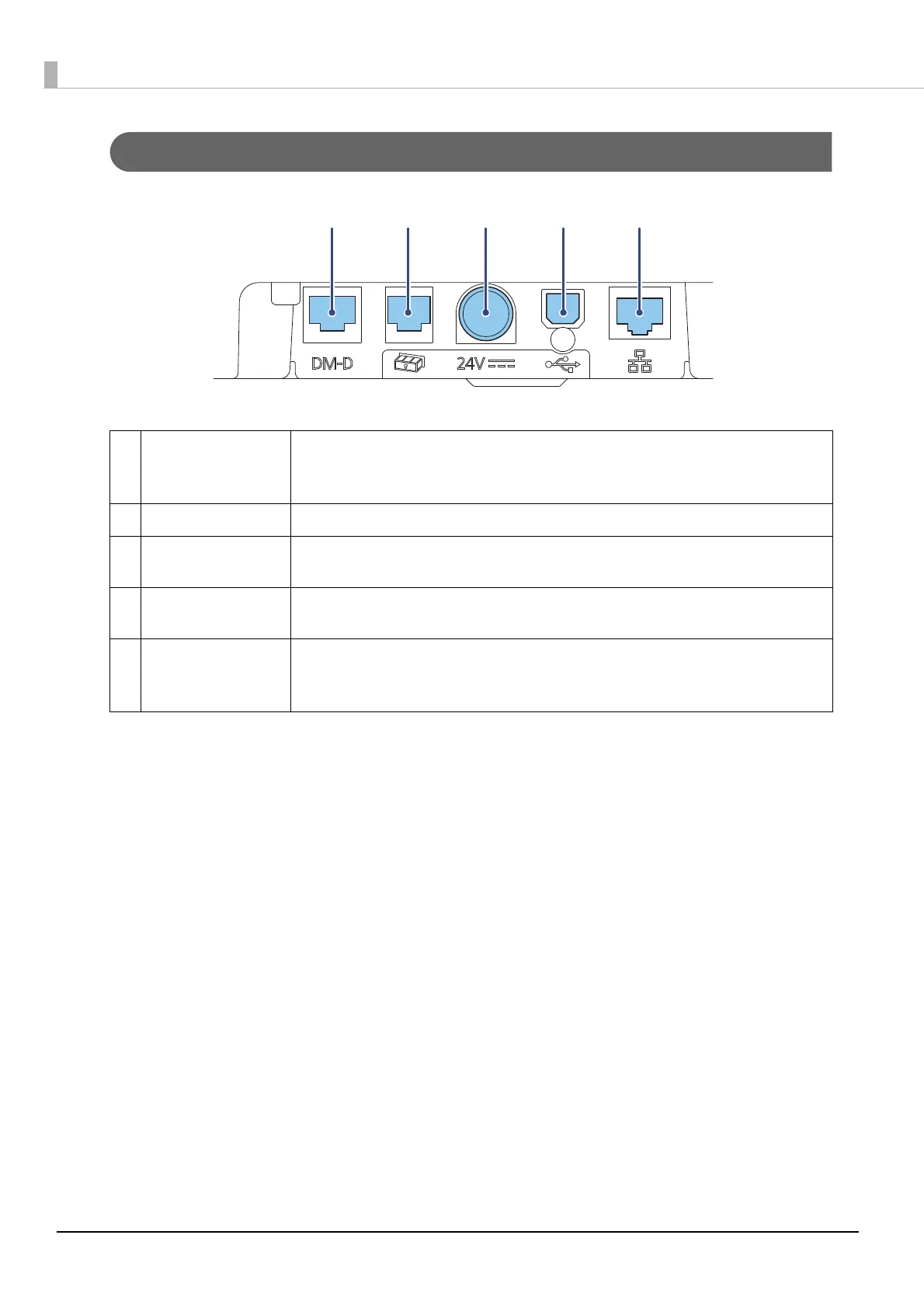

Rear Side Connectors
1 DM-D connector For connecting the customer display.
Be careful not to insert a telephone jack (RJ11) or the modular cable of the cash drawer into
the DM-D connector. Doing so could damage the printer or the drawer.
2 Drawer kick connector For connecting a modular cable for the cash drawer.
3 Power supply
connector
For connecting the power cable.
4 USB connector
(Type B)
For connecting a USB cable.
5 Ethernet connector For connecting a LAN cable.
Be careful not to insert a telephone jack (RJ11) or the modular cable of the cash drawer into
the Ethernet connector. Doing so could damage the printer or the drawer.
