Connecting the AC Adapter
Connect the AC Adapter by following the procedure below.
For the TM-J7700, you can connect an AC adapter to the underside of the printer. Follow the instructions to
install it properly. (See "To install the AC Adapter (only for the TM-J7700)" on page 31)
1
Confirm that the power switch is off.
2

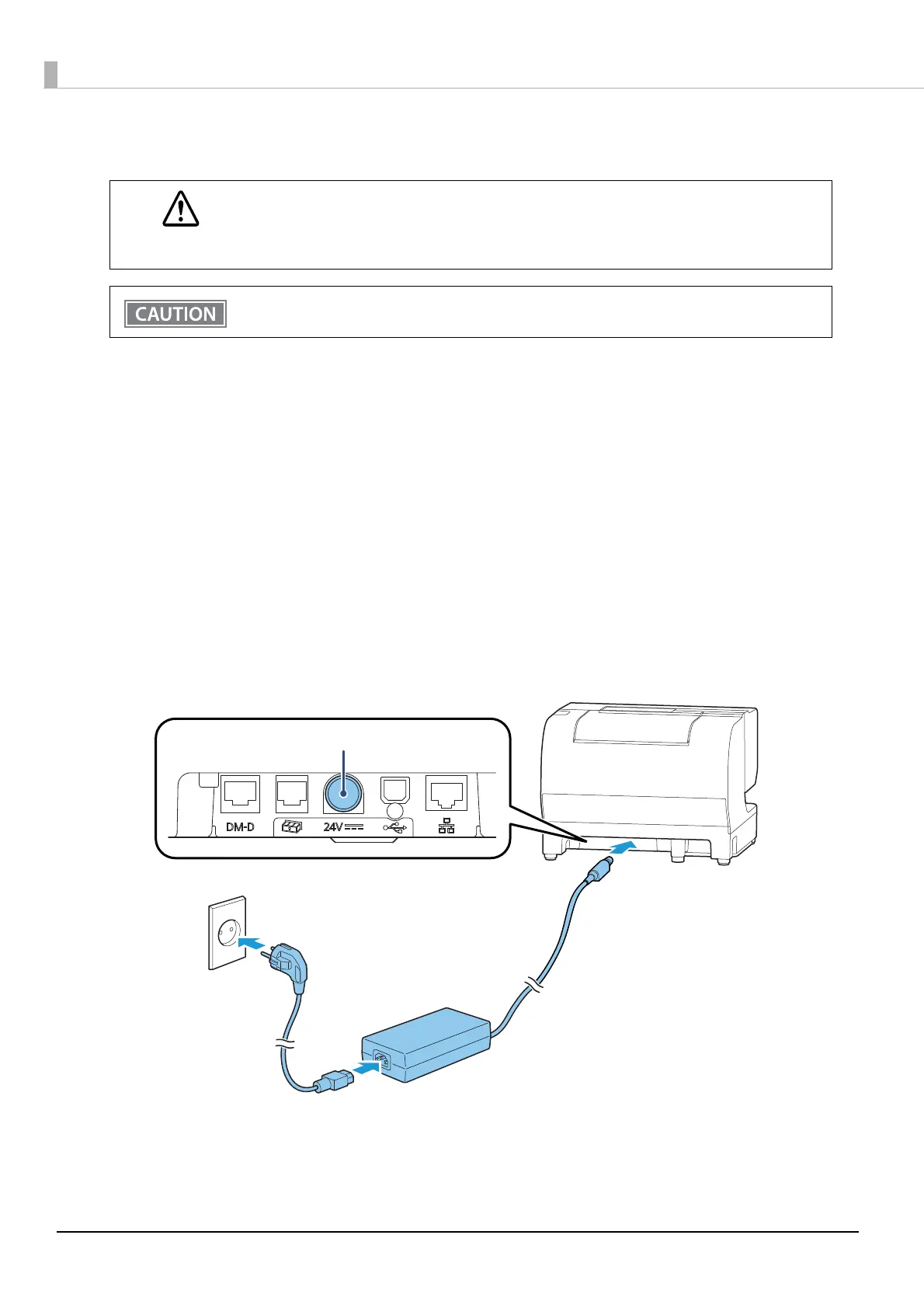

Firmly insert the DC connector of the AC adapter into the DC-in ("24V") connector of
the printer.
3
Firmly insert the AC cable connector into the AC port of the AC adapter.
4
Firmly insert the plug into a grounded wall outlet.
5
Set the AC adapter so that its label side is facing down.
WARNING
 Be sure to use the specified AC adapter [PS-180 (model: M159E)]. Connection to an
improper power source may lead to equipment damage, fire, or electric shock.
 Should a fault ever occur, immediately turn off the power to the printer and unplug the AC
cable from the socket.
Use the AC cable provided with this printer.
DC-in (24V)
➀
➁
➂
