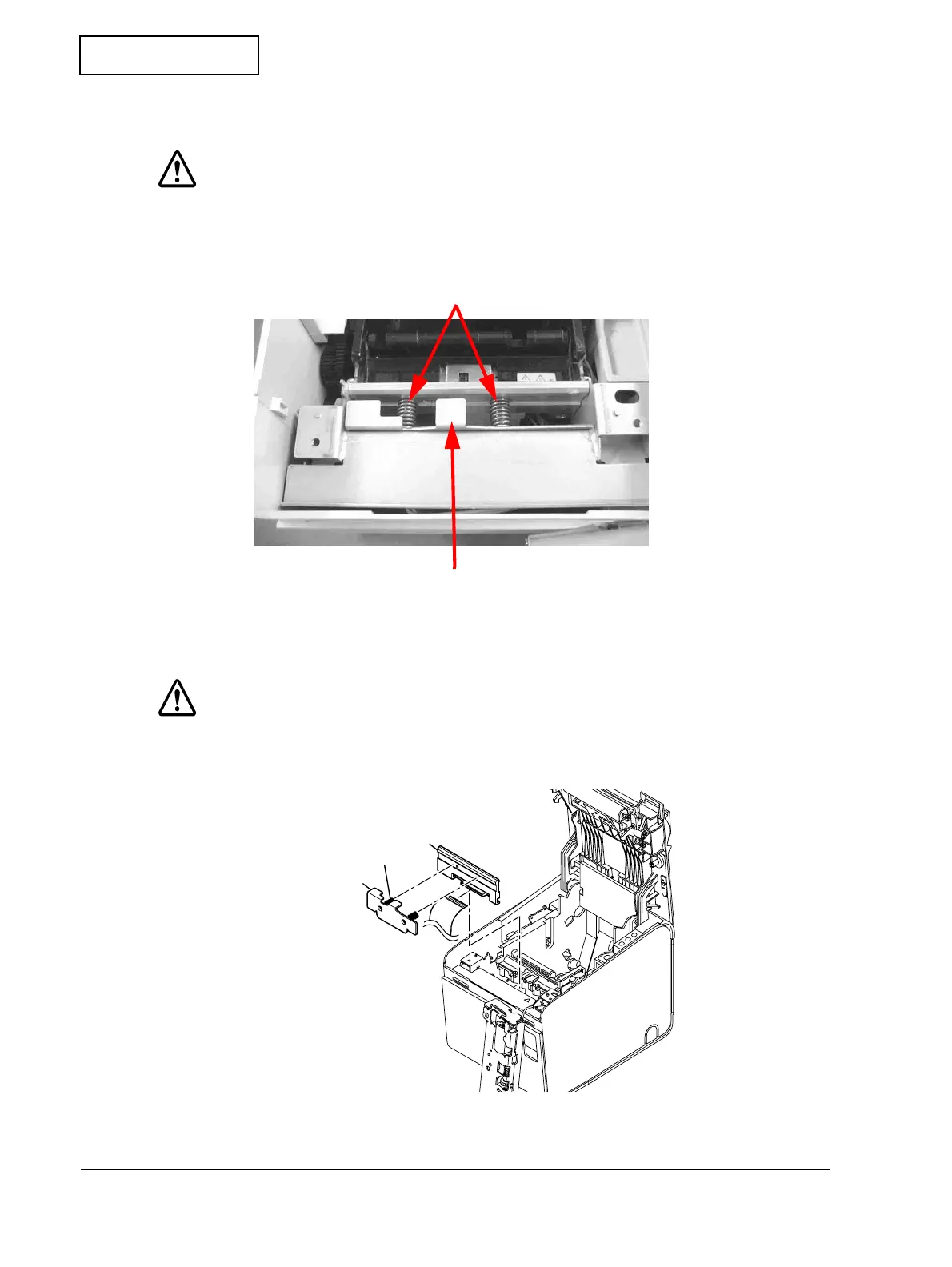

5. While holding the two head holder springs so they do not fly out, pull out the spring holder
plate.
CAUTION:
Be sure to hold the two head holder springs while removing spring holder plate.
Otherwise, head holder springs may suddenly fly out, creating the danger of eye
injury.
6. Lift up the thermal print head assembly and remove the head FFC from the thermal print
head assembly.
CAUTION:
To prevent static-generated failures, keep the removed thermal print head
assembly in an anti-static bag or other suitable container.
Spring holder plate
Head holder springs
Thermal print head assembly
Spring holder plate
Head holder spring
