Rev.C Disassembly and Assembly 3-9
TM-L90 Service Manual
Confidential
Disassembly and Assembly of the TM-L90
First Level
Cutter Cover
1. Open the roll paper cover.

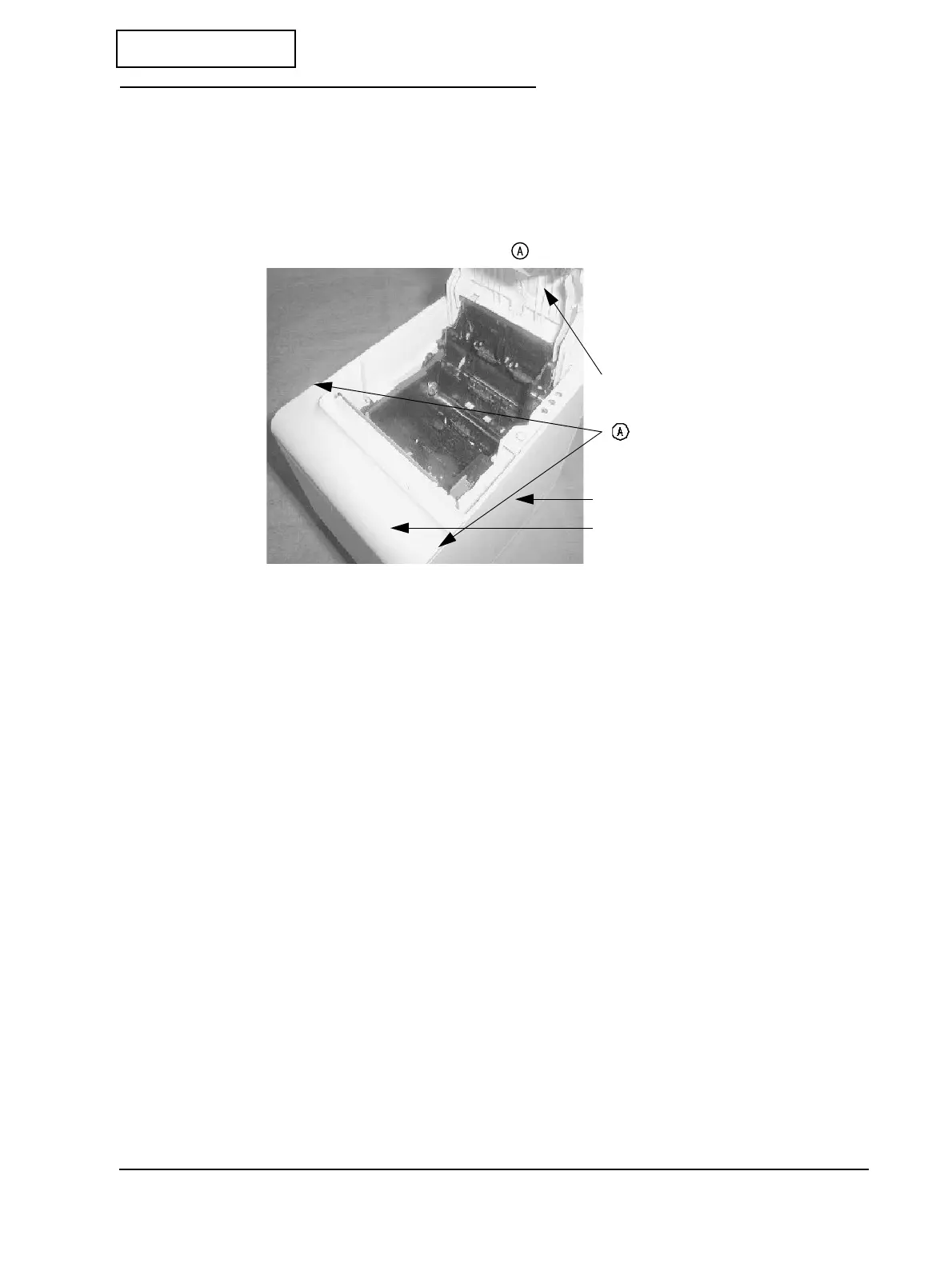

2. Remove the cutter cover by spreading area of the main case assembly, as shown below:
Install in the reverse sequence of removal.
Main case assembly
Cutter cover
Roll paper cover
