Epson TM-L90 series - Setting the Installation Position for the Roll Paper Near-End Detector

Rev.B Installation 6-3
TM-L90 Service Manual
Confidential
Setting the Installation Position for the Roll Paper Near-End Detector
This printer allows you to change the installation position for the roll paper near-end detector
using the following procedure. Set the detector based on whether your printer is installed
vertically or horizontally.
1. Loosen the detector adjustment screw with a coin or similar tool. Turn the screw at least 3 or
4 times.
2. Push the detector lever in until it touches the back of the hole.
3. While pushing the detector lever, turn the tab until the lever clicks into place in the desired
hole.
4. Secure the detector adjustment screw.
5. Make sure the detector lever moves smoothly.

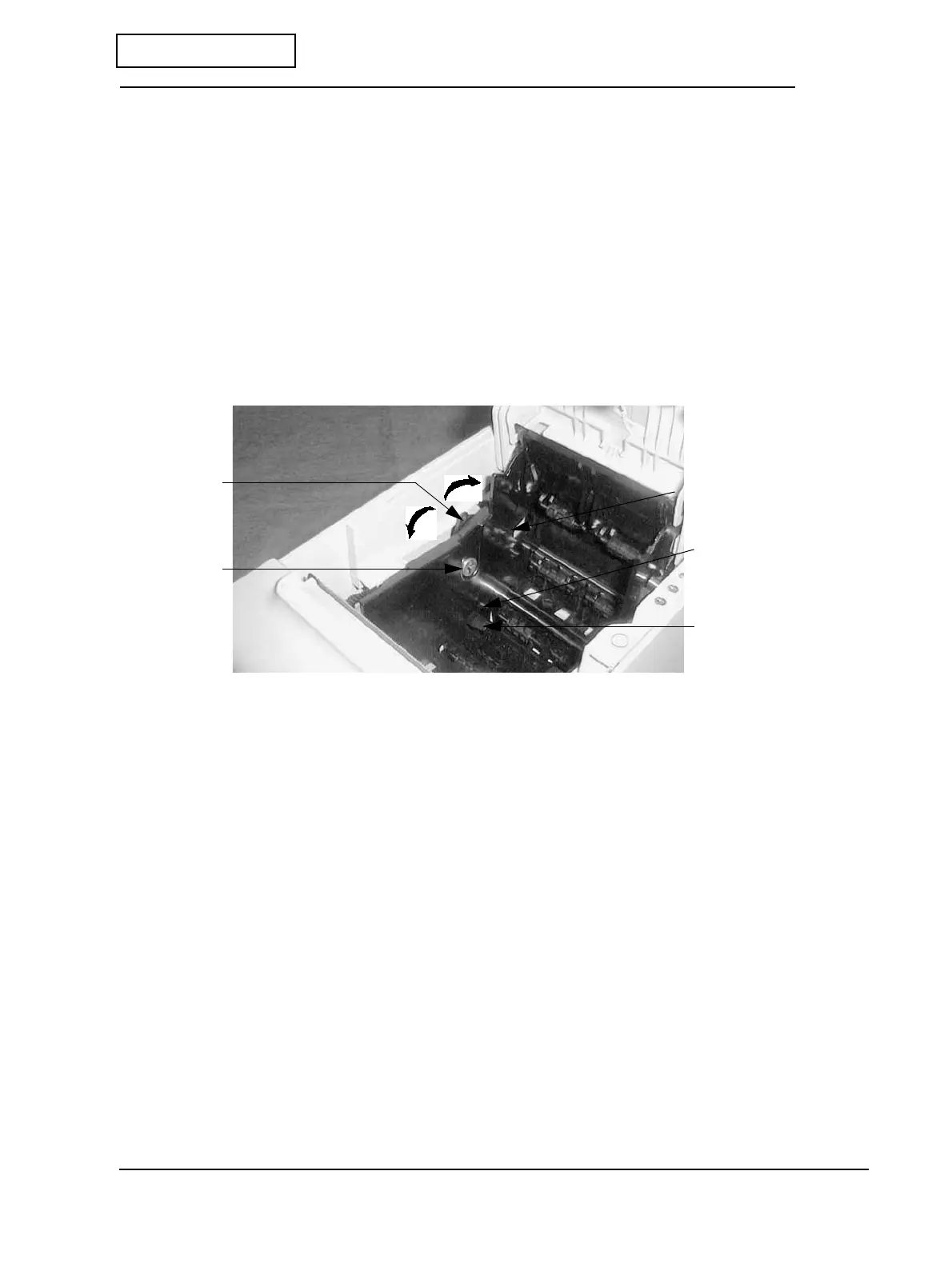

Hole for vertical installation
or wall mount
Hole for horizontal
installation
tab
Detector
adjuat screw
Detector lever
