3-16 Disassembly and Assembly Rev.C
Confidential
Roll Paper Cover Unit

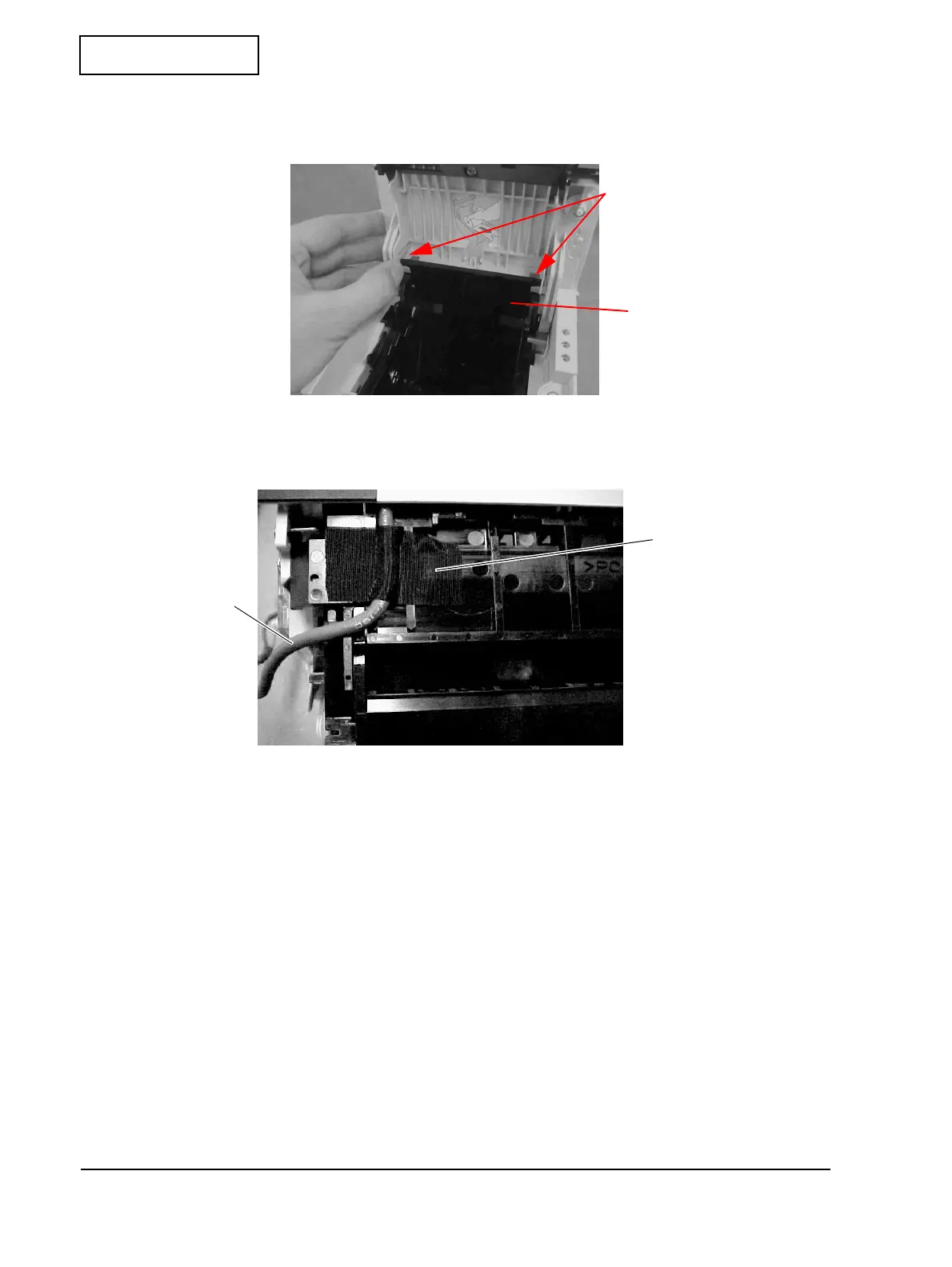

1. Release the two tabs on the label paper guide from the roll paper cover unit.
2. Remove the insulating tape that is securing the lead wire of the BM (black mark) paper
detector circuit board assembly.
Tabs
Label paper guide
Insulating tape
Lead wire
