3. Remove the three S1 screws and remove the platen holder.
CAUTION:
When removing the screws near the platen gear, take precautions against
touching the gear with the screwdriver. Do not use a screwdriver with a short
handle and/or thick shaft, as it can easily touch the gear. Touching the gear may
damage it.
Note:
When you need to disassemble or assemble the platen holder further, see page 3-47 for instructions.
4. Remove one E2 type E retaining ring and remove the FEED button.
5. Remove the feed spacer from the FEED button.

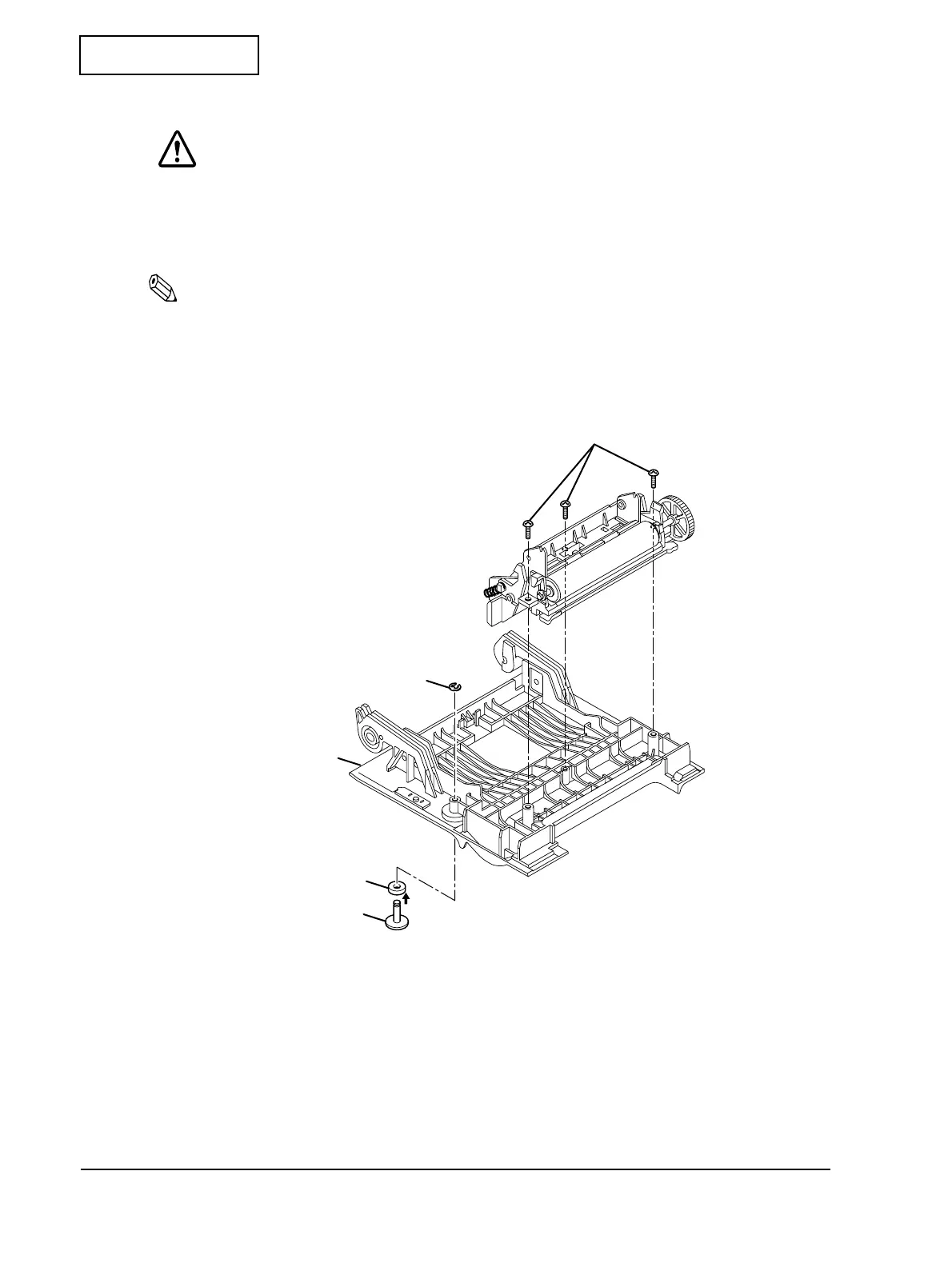

E2
S1
Feed spacer
FEED button
Roll paper cover
Double-sided adhesive tape side
