4. Adjust the autocutter unit to the desired position.
To select partial cut: adjust the dowel to the position marked P.
To select full cut: adjust the dowel to the position marked F.
5. Secure the autocutter unit with the two S4 screws. Make sure the two dowels on the frame
assembly engage the two slits in the autocutter unit.
Note:
• When tightening the screws, do not deform the frame assembly. This can decrease the sharpness of
the cutter.
• Do not tighten the autocutter unit when the dowels are not properly engaged. This can also
decrease the sharpness of the cutter.
6. Install the cutter cover.
7. Close the roll paper cover.

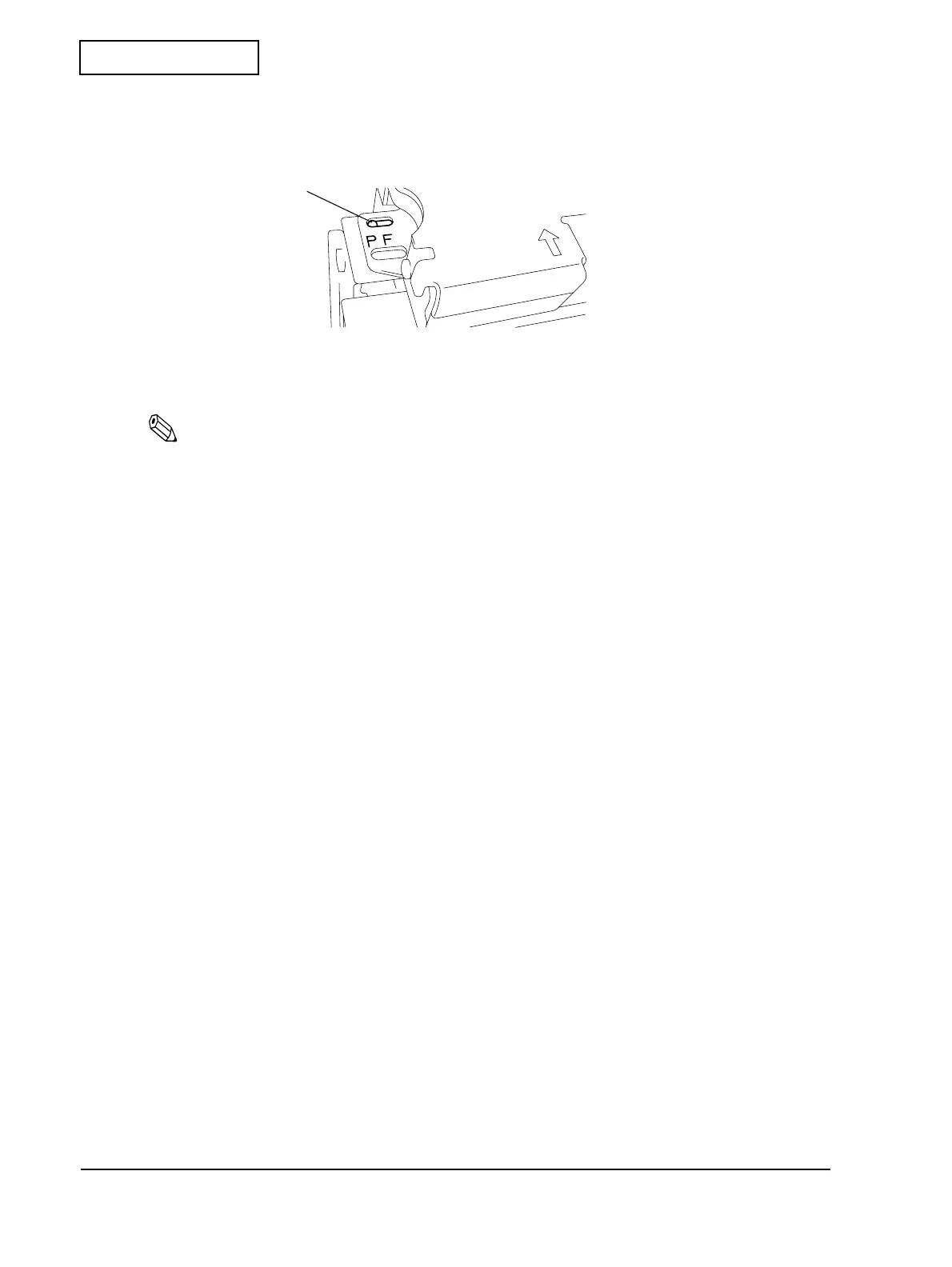

Dowel
To Next Page
