•Lights when the end of the roll paper is detected, and when printing has stopped (offline). If
this happens, replace the roll paper.
•Flashes when an error occurs. (For details about the flash codes, see "Error Status" on page 16.)
•Goes out during regular operation (online).
POWER LED (green)
•Lights when the power supply is on.
•Goes out when the power supply is turned off.
Connectors
All cables are connected to the connector panel on the lower rear of the printer.
• Drawer kick-out connector: Connects the cash drawer.
•Power supply connector: Connects the power supply unit
•Interface connector: Connects the printer with the host computer interface.
Offline
The printer automatically goes offline under the following conditions:
•During power on (including resetting with the interface) until the printer is ready
•During the self-test
•While roll paper is fed using the FEED button.
•When the printer stops printing due to a paper-end (if an empt
y paper supply is detected by
the roll paper end sensor or if the driver has been set to stop printing when a roll paper near-
end is detected)
•When an error has occurred

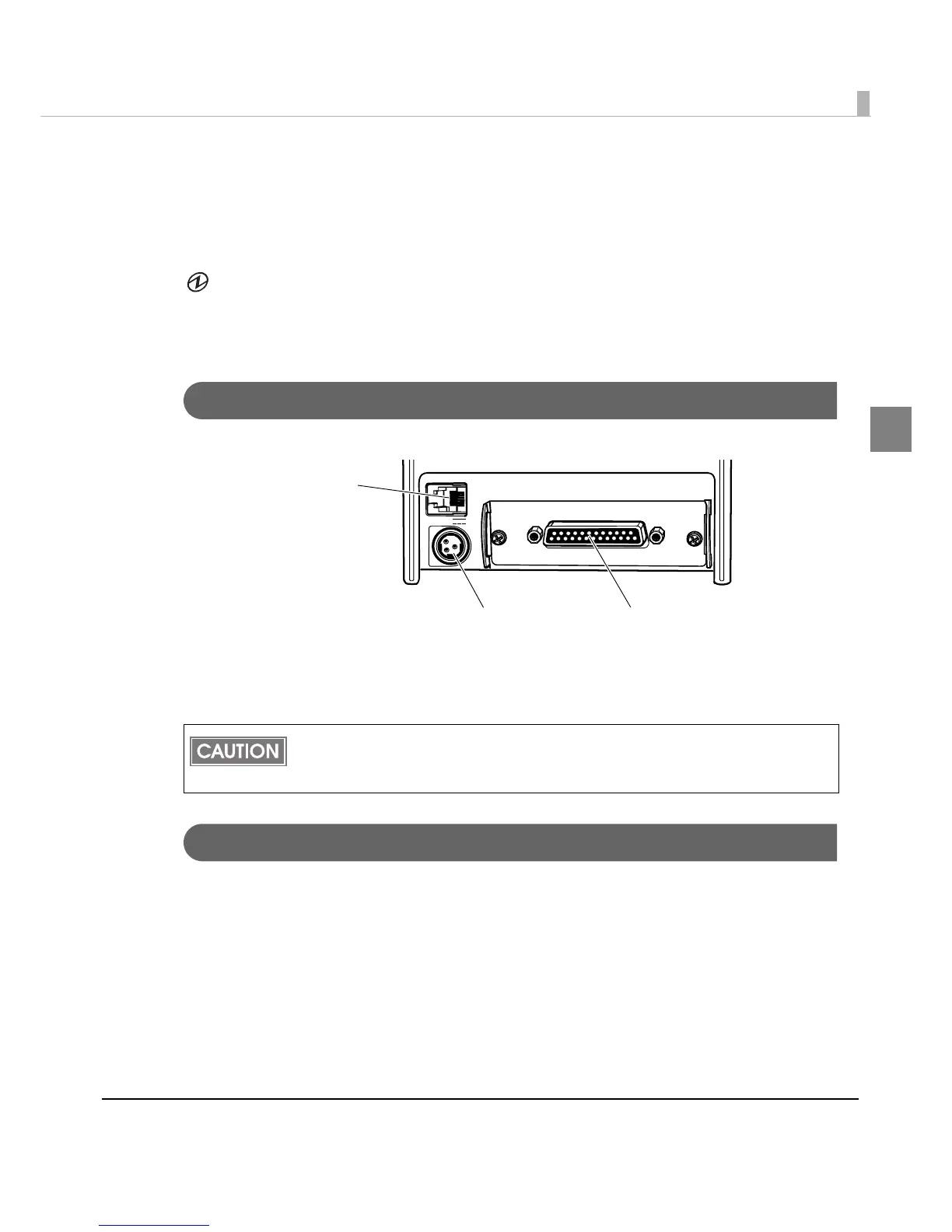

The picture above shows a serial interface model. For details on the various interfaces and
how to connect the power supply connector and cash drawer, see "Connecting the Printer
to the Host Computer" on page 39 and "Connecting the Cash Drawer" on page 48.
DK
24V
FG FG
Interface connector
Drawer kick-out connector
Power supply connector

Epson TM T70 Specifications

General

Resolution	180 dpi
Auto Cutter	Yes
Print Method	Thermal line
Paper Width	79.5 ±0.5 mm
Interface	USB, Ethernet
Power Supply	AC adapter
