Connecting the Printer to the Host Computer
For Serial Interface

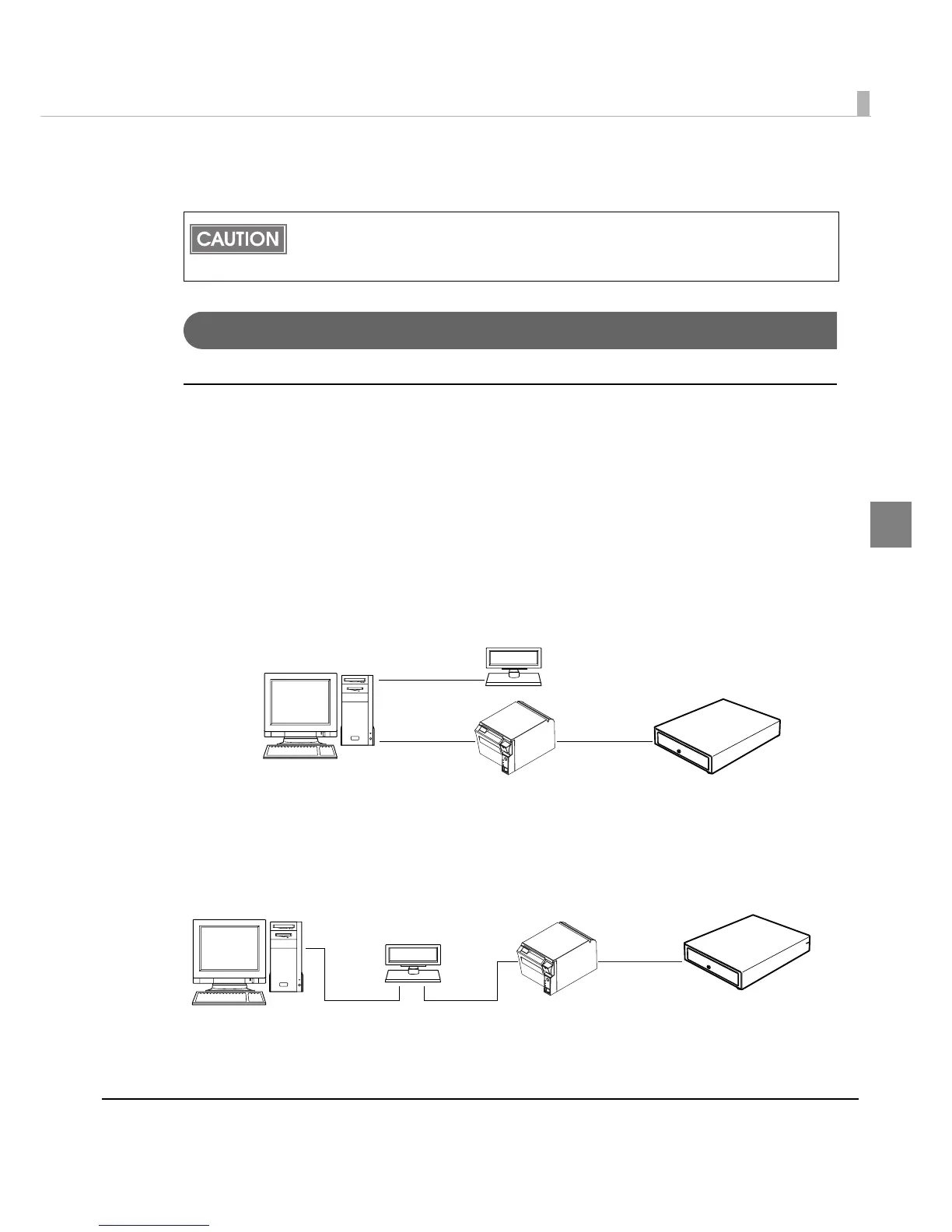

Serial interface connection diagram
When this printer is connected to the host computer by the serial interface, two connection forms
are possible:
•Stand alone
• Pass-through connection
Stand alone
This printer is connected to the host computer via the serial port. When a customer display
(DM-D) is to be connected, connect it to the host computer via the serial port.
Pass-through connection
This printer is connected to the host computer over the serial interface via a customer display
(DM-D).
• Be sure to install the driver before connecting the printer to the host computer.
• The printer uses the modular connectors specifically designed for the cash drawer. Do
not connect these connectors to an ordinary telephone line.
TM-T70
DM-D
Serial cable
Cash drawer
Serial cable Modular cable
DM-D
TM-T70
Cash drawer
Serial cable Serial cable
Modular cable

Epson TM T70 Specifications

General

Resolution	180 dpi
Auto Cutter	Yes
Print Method	Thermal line
Paper Width	79.5 ±0.5 mm
Interface	USB, Ethernet
Power Supply	AC adapter
