42
For USB Interface

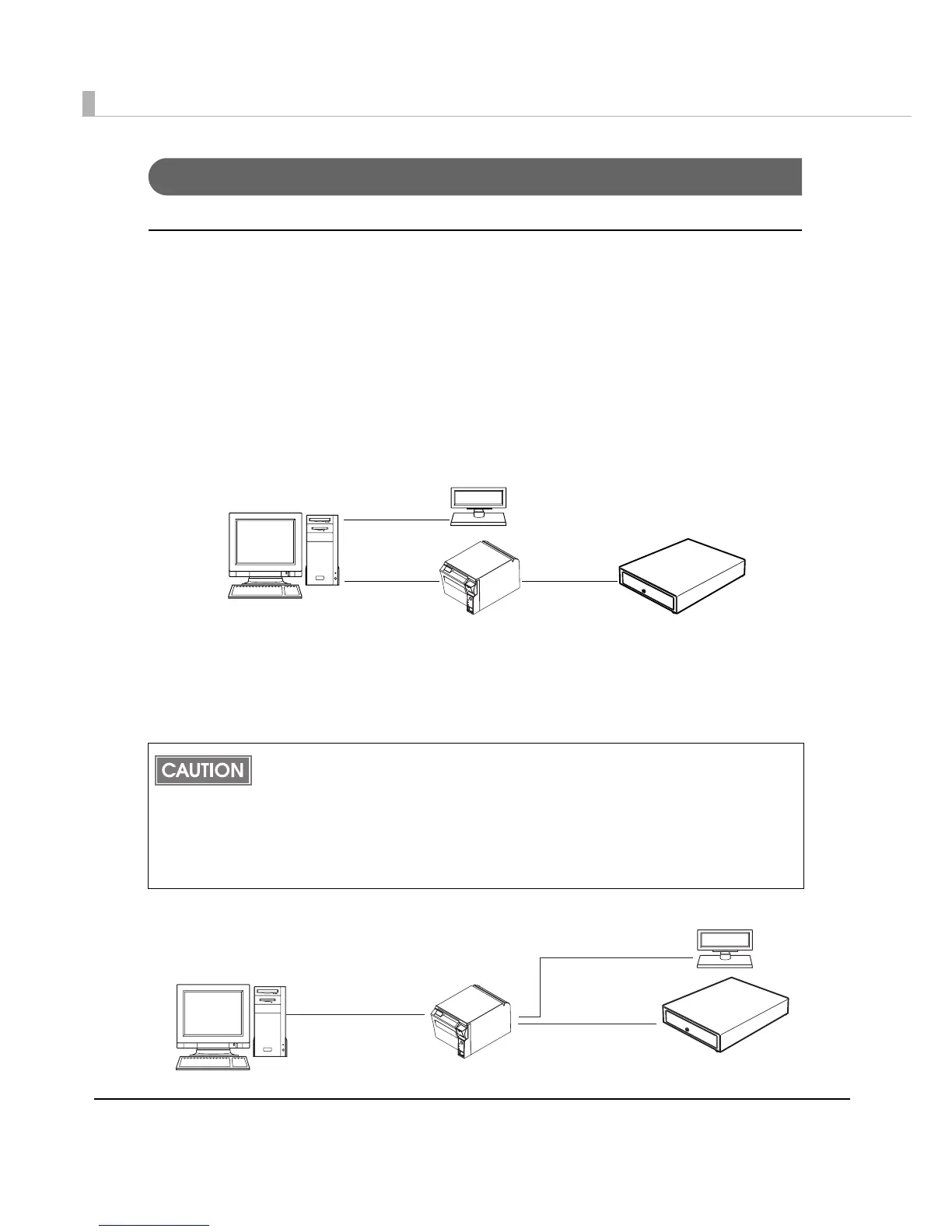

USB interface connection diagram
When this printer is connected to the host computer by the USB interface, two connection forms
are possible:
•Stand alone
•Y connection
Stand alone
This printer is connected to the host computer via the USB port. When a customer display
(DM-D) is to be connected, connect it to the host computer via the serial port.
Y connection (only with the UB-U01III/U02III)
This printer is connected to the host computer via the USB port. When a customer display
(DM-D) is to be connected, connect it to the printer via the modular cable.
When connecting a customer display to the printer, connect the modular jack from the
customer display to the DM connector.
Also, set the communication conditions of the customer display as follows:
Baud rate: 19200 bps
Bit length: 8-bit
Parity: no parity
Stop bit: 1
TM-T70
DM-D
Serial cable
Cash drawer
USB cable Modular cable
DM-D
TM-T70
USB cable
Modular cable
Modular cable
Cash drawer
