Epson TM T70 Technical Reference Guide

Chapter 2 Setup
49
2
Drawer Circuitry
Setting the Buzzer
Models with the buzzer function can beep the buzzer when the drawer is opened.
The buzzer setting is performed by setting the DIP switches for the buzzer and specifying
connector pin numbers to which a command outputs a pulse signal.
DIP
switch
Specified connector pin ON OFF Initial setting
1 Drawer kick out connector pin 2 Buzzer beeps.
Buzzer does not
beep.
ON
2 Drawer kick out connector pin 5 Buzzer beeps.
Buzzer does not
beep.
OFF
Since the buzzer drive signal and the cash drawer drive signal are common in the printer,
do not use the same connector pin numbers to output the signal for the buzzer and the
cash drawer.
For detailed information about ESC/POS commands, see the ESC/POS Application
Programing Guide.

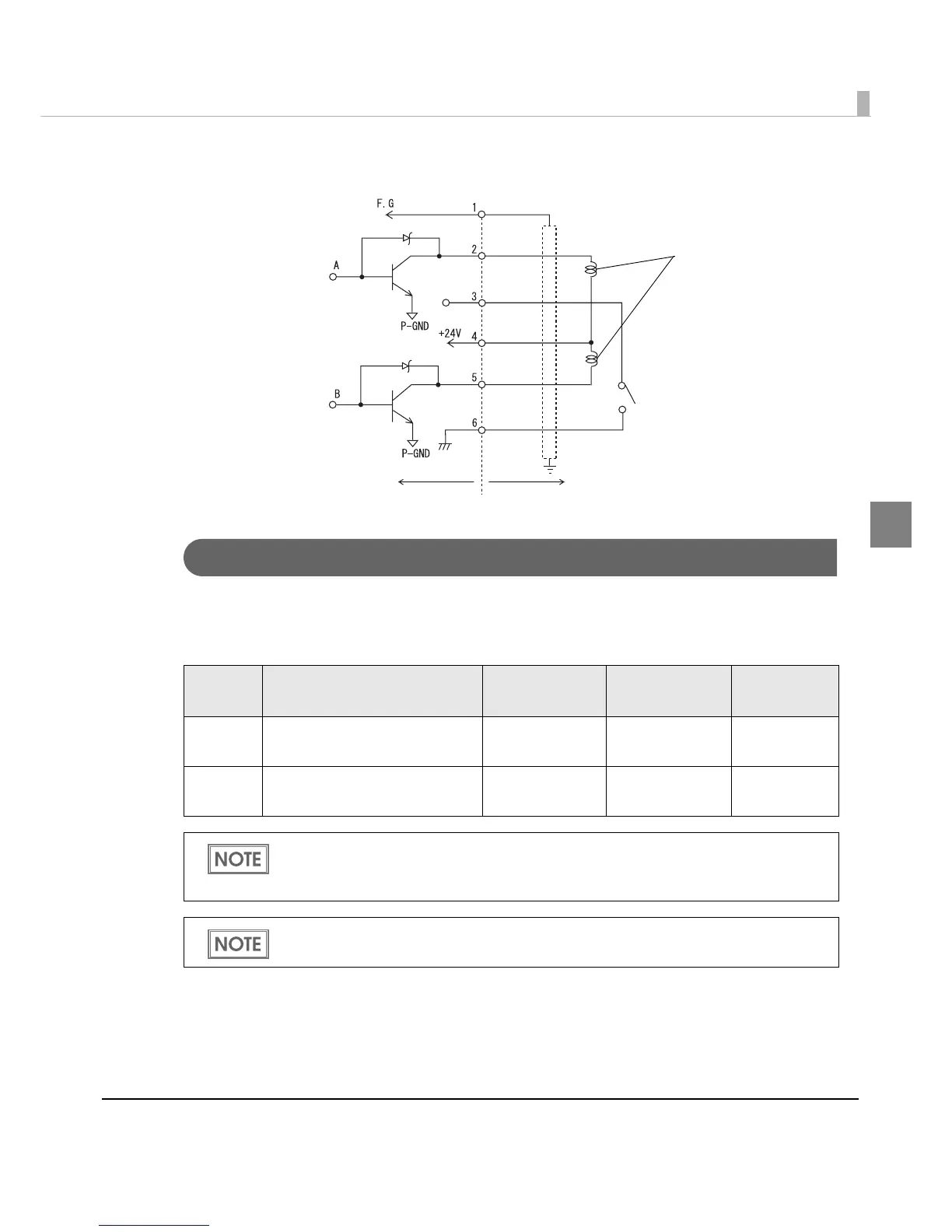

With shielded
Drawer kick-out connector
Printer side User side [Drawer kick-out side]
Drawer open/close switch
Drawer kick-out solenoid

Epson TM T70 Specifications

General

Resolution	180 dpi
Auto Cutter	Yes
Print Method	Thermal line
Paper Width	79.5 ±0.5 mm
Interface	USB, Ethernet
Power Supply	AC adapter
