Epson TM T70 Technical Reference Guide

Chapter 2 Setup
41
2
For Parallel Interface

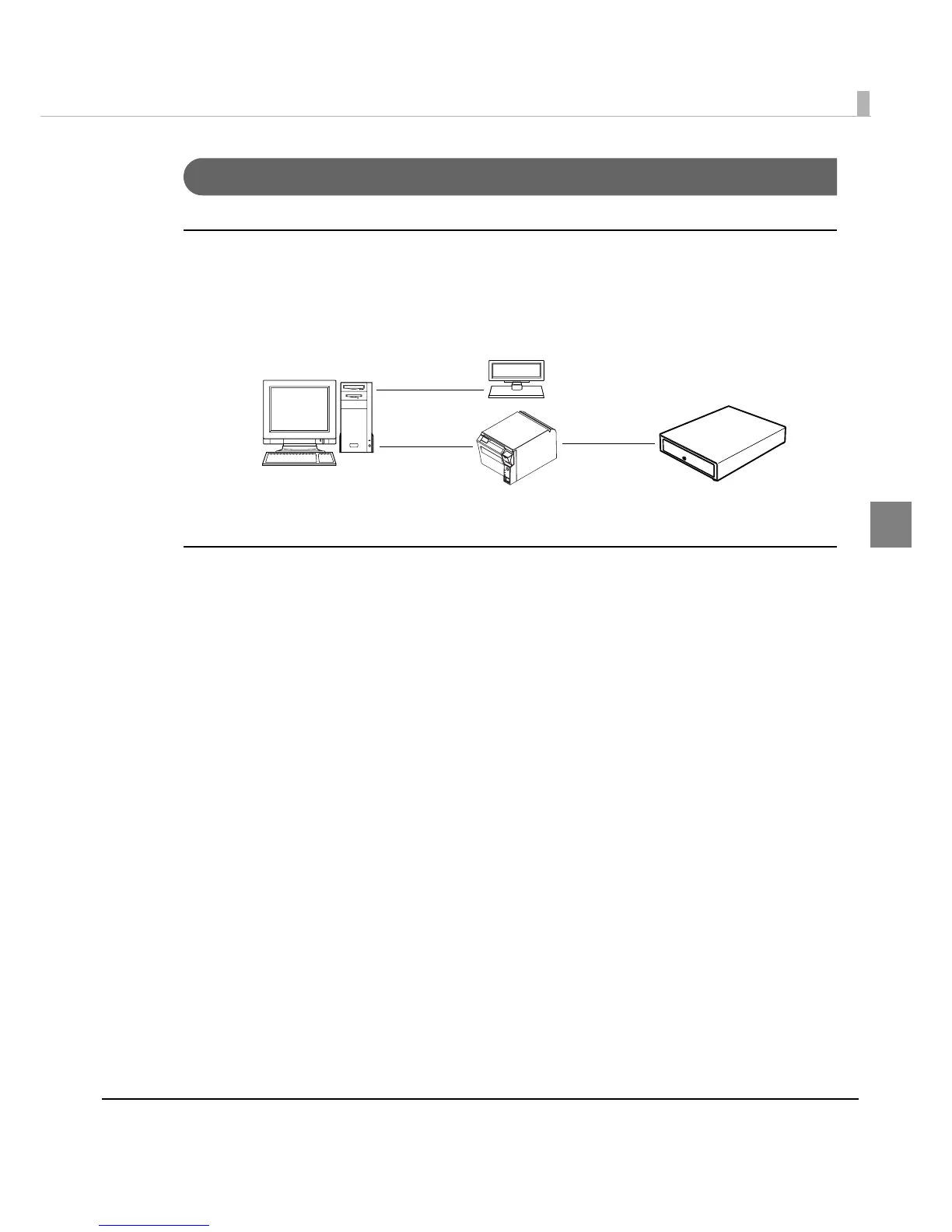

Parallel interface connection diagram
This printer is connected to the host computer via the parallel port. When a customer display
(DM-D) is to be connected, connect it to the host computer via the serial port.
Connecting the parallel interface cable
1
Insert the interface cable connector firmly into the interface connector
on the connector panel.
2
Press down the clips on either side of the connector to lock it in place.
3
When using interface cables equipped with a ground line, attach the
ground line to the screw hole marked “FG” on the printer.
4
Connect the other end of the interface cable to the host computer.
DM-D
TM-T70
Serial cable
Modular cable
Cash drawer
Parallel cable

Epson TM T70 Specifications

General

Resolution	180 dpi
Auto Cutter	Yes
Print Method	Thermal line
Paper Width	79.5 ±0.5 mm
Interface	USB, Ethernet
Power Supply	AC adapter
