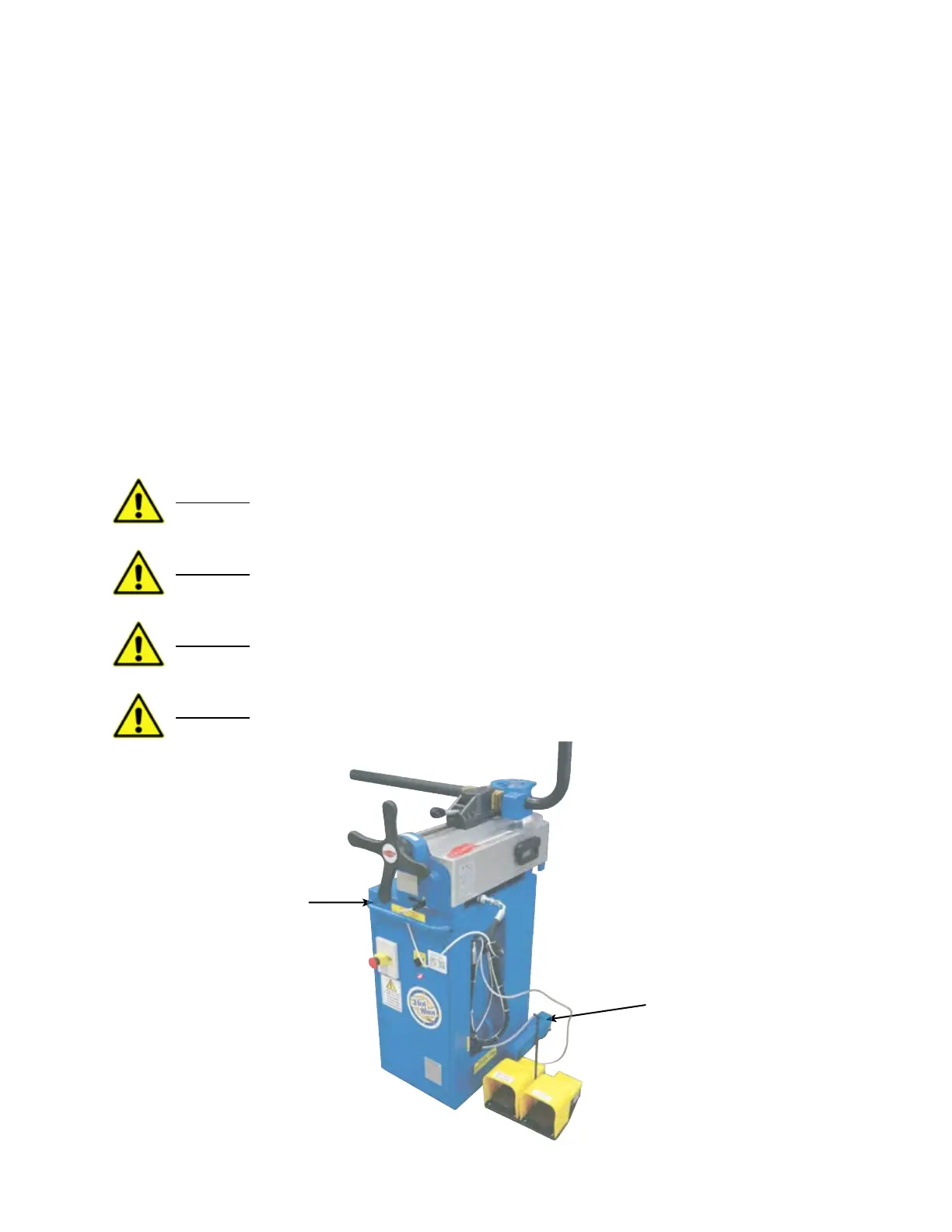

Figure 3 - Indicating wheels and retractable handle
2.2. Standard equipment
The following are supplied with machine
● Can of spray grease part number P810, intended for lubricating the groove of counter-bending die
● 40 mm and 50 mm hexagonal tooling shafts
● Hand wheel to move the cursor longitudinally
● Pedal control for bend and return function
● Hex key, for opening the cabinet;
● User and maintenance manual.
2.3. Reception
Upon receipt of machine carefully inspect all packaging to verify no damage has occurred during transport
and all standard items are present. Immediately inform the shipping company and CML USA Inc of any
damage or shortage of goods.
2.4. Transport
The HB60 is equipped with two wheels and retractable handle to assist in moving the machine. as shown
in Figure 3.
Attention: Oil reservoir contains oil and is properly sealed prior to shipment. Conrm no oil has
escaped the reservoir during shipment.
Attention: the head can be separated from the cabinet and handled using the specic side
handles.
Attention: while handling the machine, do not use safety ropes and/or chains near hydraulic
pipes and power cables.
Attention: weight distribution of machine can change according to capacity of hydraulic oil
and tooling tted on machine. To facilitate moving and handling packaging labels
indicate lifting area and weight.
Retractable handle
Wheels
